Cold Flattened Aluminum Expanded Mesh Sheet For Household Applications
Product Details:
| Place of Origin: | China |
| Brand Name: | FUHANG |
| Certification: | ISO9001 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Square Meter |
|---|---|
| Price: | 1-30 Square Meter $2/Square Meter >30 Square Meters $1/Square Meter |
| Delivery Time: | 5-8 work days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 50000 square meter /15 Days |
|
Detail Information |
|||
| Product Name: | Standard(Raised) Aluminuml Expanded Metal Sheet Mesh | Material: | Aluminum Sheet |
|---|---|---|---|
| Application: | Protecting Mesh,Screen,Fencing | Type: | Expanded Mesh |
| Wire Diameter: | Requirement | Usage: | Construction |
| Hole Shape: | Diamond Hole | Thickness: | 0.5-8mm |
| Packing: | Wooden Box,On Your Request,pallet | Weave Style: | EXPANDED METAL |
| Short Way Of Mesh: | 2mm-50mm | Advantage: | Rich Experience,High Quality With Good Prices,good Worker |
| High Light: | Flattened Aluminum Expanded Mesh Sheet,Flattened Expanded Metal Sheet,Aluminum Expanded Metal Sheet |
||
Product Description

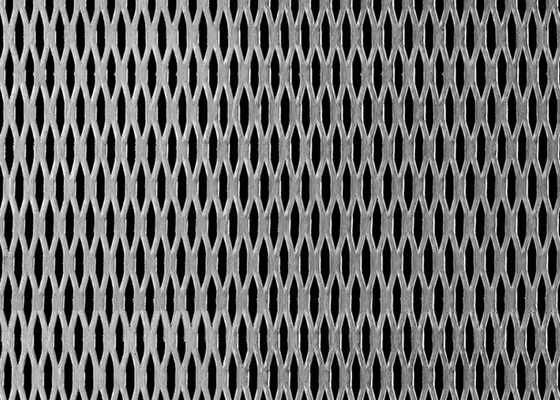

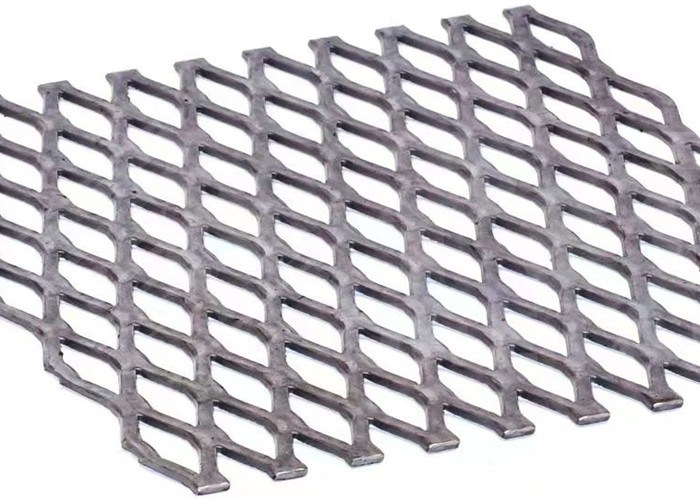

Flattened Aluminum Expanded Metal Sheet Expanded Aluminum Mesh
Flattened expanded metal sheet is metal that has been cold flattened, leaving a smooth, flat surface with diamond shaped openings. During this process, the length of the sheet is elongated, usually by about five percent. After the expanded metal sheet has been flattened, the expanded sheet is then sent through a leveler to maintain its flatness. As a leading expanded metal supplier, Fuhang Company provides durable, economical, and versatile expanded metal. This product is available in many material options, such as carbon steel, galvanized steel, aluminum, and stainless steel.
Examples of Flattened Expanded Metal Uses and Applications
Flattened expanded metal has a wide range of industrial applications. It is frequently used to by architects in the design of ornamental accents such as wall partitions or garage screening. Flattened expanded metal fabrications can also be incorporated into the design of fencing and security partitions. Additionally, it has many household applications, such as for outdoor/patio furniture.
The following is the product data table of flattened aluminum expanded metal sheet :
Style | Lbs. Per | Design Sizes | Opening Size | Approx. Strand Size | Overall Thickness | Approx. No. | Open Area | ||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| SWD | LWD | SWO | LWO | Thickness | Width | SWD | LWD | ||||
| 1/2" x .051F | 26 | 50 | 1.27 | .312 | 1.00 | .040 | .104 | .040 | 24 | 9.5 | 61 |
| 1/2" x .081F | 42 | .50 | 1.27 | .312 | 1.00 | .060 | .105 | .060 | 24 | 9.5 | 58 |
| 3/4" x .051F | 16 | .92 | 2.125 | .75 | 1.812 | .040 | .122 | .040 | 13 | 6 | 72 |
| 3/4" x .081LF | 30 | .92 | 2.125 | .687 | 1.75 | .070 | .143 | .070 | 13 | 6 | 70 |
| 3/4" x .081HF | 39 | .92 | 2.125 | .687 | 1.75 | .070 | .181 | .070 | 13 | 6 | 63 |
| 3/4" x .125F | 62 | .92 | 2.125 | .625 | 1.75 | .095 | .187 | .095 | 13 | 6 | 62 |
| 1-1/2" x .081F | 21 | 1.33 | 3.15 | 1.06 | 2.75 | .060 | .143 | .060 | 9 | 4 | 77 |
| 1-1/2" x .125F | 41 | 1.33 | 3.15 | 1.00 | 2.75 | .080 | .181 | .080 | 9 | 4 | 70 |
Features
Economic - Flattened aluminum expanded metal sheet has good corrosion resistance and rust resistance, but it is cheaper than stainless steel mesh and is a more economical choice.
Lightweight – This is the most important feature of flattened aluminum expanded metal sheet. Lightweight expanded metal sheets are widely used in decorative applications.
Sturdy -Although the flattened aluminum expanded metal sheet is light in weight, it still has a strong structure.
Corrosion and rust resistance.
Application of expanded aluminium mesh
Expanded aluminium mesh is widely building facades, such as shopping malls, airport passages, theaters, museums, exhibition halls and other architecture. Aluminum mesh is lightweight and has excellent corrosion resistance, making it the most commonly used wall claddings.Used for sun shield, ceilings, lighting, etc. Safety protection, safety fence.
How to Order Flattened Expanded Metal ?.
When ordering or specifying Expanded Metal, please confirm:
• The Style
• Flattened or Raised
• Material
• Sheet Size
