Galvanized Expanded Metal Mesh Diamond Hole 0.5-8mm For Construction

Product Description

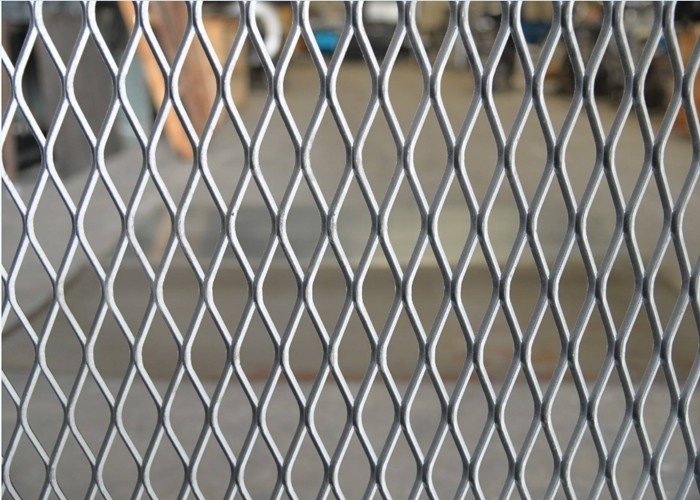

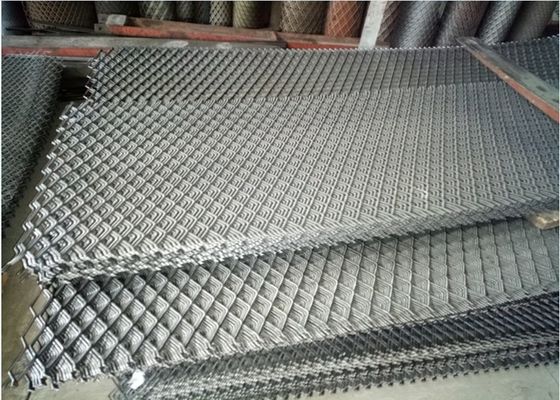

 Standard(Raised) Galvanized Steel Expanded Metal Sheet Mesh

   Expanded metal mesh products consist of sheets or coils of solid metal that feature a diamond pattern that vary by gauge, type of material and size of the diamond. The term “expanded metal” refers to the way the metal is simultaneously die-cut and expanded as it moves through the progressive dies on a press. This process allows it to be expanded up to 10 times its original size, while losing up to 80 percent of its original weight per square foot and retaining its form and rigidity.

   Expanded metal mesh is a type of metal stock that features diamond-shaped patterns that are produced by simultaneously slitting and stretching the material. The standard form of this material is known as raised expanded metal, due to its elevated diamond pattern. Raised standard metal consists of bonds and strands that are set at a uniform angle to the plane of the metal sheet, resulting in additional strength and rigidity.

   Our expanded sheet metal mesh materials include aluminum, carbon steel, stainless steel and galvanized steel. Expanded Metal stainless steel sheet is available through our company in flattened or standard (raised) styles with a variety of options in thickness, area, pattern, design, opening and more.

   The following is the specific data table of the standard(raised) galvanized steel expanded metal sheet mesh :

Application:

    Used in filter element, medicine, papermaking, filtration, breeding, battery net, packaging net, mechanical facility protection, handicraft manufacturing, high-end speaker net cover, decoration, child seat, basket, basket and highway protection, tanker truck Foot nets, working platforms, escalators and walkways for heavy machinery and boilers, oil mines, locomotives, and 10,000-ton ships. It can also be used as reinforcement in the construction industry, highways and bridges.
