Flattened Galvanized Expanded Metal Sheet , Expanded Metal Screen Mesh
Product Details:
| Place of Origin: | China |
| Brand Name: | FUHANG |
| Certification: | ISO9001 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Square Meter |
|---|---|
| Price: | 1-30 Square Meter $2/Square Meter >30 Square Meters $1/Square Meter |
| Delivery Time: | 5-8 work days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 50000 square meter /15 Days |
|
Detail Information |
|||
| Product Name: | Flattened Galvanized Steel Expanded Metal Sheet | Material: | Galvanized Steel |
|---|---|---|---|
| Application: | Protecting Mesh,Screen,Fencing | Type: | Expanded Mesh |
| Weave Style: | EXPANDED METAL | Wire Diameter: | Requirement |
| Usage: | Construction | Hole Shape: | Diamond Hole |
| Thickness: | 0.5-8mm | Packing: | Wooden Box,On Your Request,pallet |
| Short Way Of Mesh: | 2mm-50mm | Advantage: | Rich Experience,High Quality With Good Prices,good Worker |
| High Light: | Flattened Galvanized Expanded Metal Sheet,Expanded Metal Screen Mesh |
||
Product Description

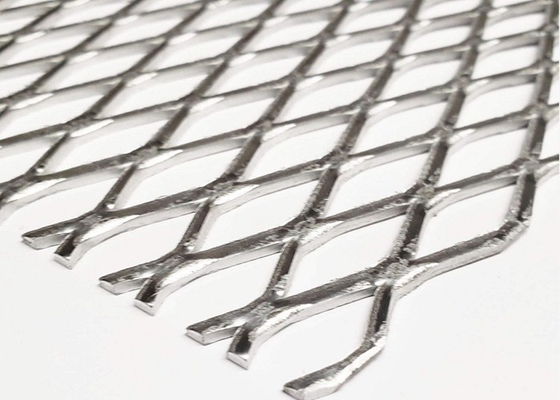

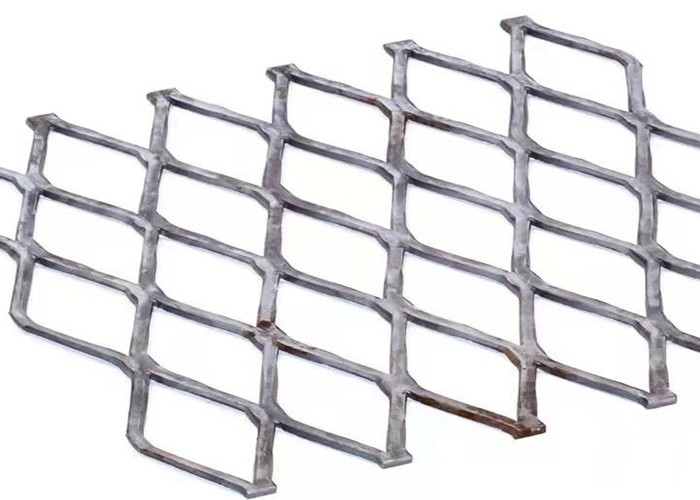

Flattened Galvanized Steel Expanded Metal Sheet Diamond Mesh Sheet Metal
Flattened expanded metal sheet is metal that has been cold flattened, leaving a smooth, flat surface with diamond shaped openings. During this process, the length of the sheet is elongated, usually by about five percent. After the expanded metal sheet has been flattened, the expanded sheet is then sent through a leveler to maintain its flatness. As a leading expanded metal supplier, Fuhang Company provides durable, economical, and versatile expanded metal. This product is available in many material options, such as carbon steel, galvanized steel, aluminum, and stainless steel.
Features of Flattened Expanded Metal
Economical
Durable
Extremely versatile
Easy installation
Low resistance to wind loads
Easily cut to fit
Examples of Flattened Expanded Metal Uses and Applications
Flattened expanded metal has a wide range of industrial applications. It is frequently used to by architects in the design of ornamental accents such as wall partitions or garage screening. Flattened expanded metal fabrications can also be incorporated into the design of fencing and security partitions. Additionally, it has many household applications, such as for outdoor/patio furniture.
The following is the product data table of flattened galvanized steel expanded metal sheet :
|
Style |
Lbs. Per |
Design Sizes |
Opening Size |
Approx. Strand Size |
Overall Thickness |
Approx. No. |
Open Area |
||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| SWD | LWD | SWO | LWO | Thickness | Width | SWD | LWD | ||||
| 1/4" x #20F | 82 | .25 | 1.05 | .110 | .715 | .030 | .079 | .030 | 48 | 11.6 | 35 |
| 1/4" x #18F | 108 | .25 | 1.05 | .118 | .715 | .040 | .080 | .040 | 48 | 11.6 | 35 |
| 1/2" x #20F | 40 | .50 | 1.25 | .375 | 1.00 | .029 | .079 | .029 | 24 | 9.5 | 65 |
| 1/2" x #18F | 66 | .50 | 1.25 | .312 | 1.00 | .039 | .097 | .039 | 24 | 9.5 | 60 |
| 1/2" x #16F | 82 | .50 | 1.25 | .312 | 1.00 | .050 | .096 | .050 | 24 | 9.5 | 63 |
| 1/2" x #13F | 140 | .50 | 1.25 | .265 | 1.00 | .078 | .107 | .078 | 24 | 9.5 | 52 |
| 3/4" x #16F | 54 | .923 | 2.00 | .813 | 1.75 | .060 | .101 | .210 | 13 | 6 | 78 |
| 3/4" x #13F | 80 | .923 | 2.00 | .750 | 1.688 | .090 | .096 | .205 | 13 | 6 | 76 |
| 3/4" x #10F | 120 | .923 | 2.00 | .750 | 1.625 | .090 | .144 | .290 | 13 | 6 | 722 |
| 3/4" x #9F | 180 | .9223 | 2.00 | .688 | 1.562 | .134 | .150 | .312 | 13 | 6 | 68 |
| 1" x #16F | 41 | 1.00 | 2.50 | .813 | 2.250 | .050 | .098 | .050 | 112 | 4.68 | 78 |
| 1-1/2" x #16F | 40 | 1.33 | 3.00 | 1.25 | 2.625 | .060 | .108 | .230 | 9 | 4 | 85 |
| 1-1/2" x #13F | 60 | 1.33 | 3.00 | 1.188 | 2.500 | .090 | .105 | .242 | 9 | 4 | 85 |
| 1-1/2" x #10F | 79 | 1.33 | 3.00 | 1.188 | 2.500 | .090 | .138 | .284 | 9 | 4 | 80 |
| 1-1/2" x #9F | 120 | 1.33 | 3.00 | 1.125 | 2.375 | .134 | .144 | .312 | 9 | 4 | 76 |
| 1-1/2" x #6F | 250 | 1.33 | 3.00 | 1.110 | 2.375 | .194 | .203 | .433 | 9 | 4 | 69 |
Applications:
Security fence in between drywall.
window screen protection.
Walkways and flooring.
Fence Panels in banks, prisons and other buildings.
Decoration purposes.
Machine guards.
Catwalks and drainage covers.
It is commonly used for fences, grates and as metallic lath to support plaster or stucco.
How to Order Flattened Expanded Metal ?.
When ordering or specifying Expanded Metal, please confirm:
• The Style
• Flattened or Raised
• Material
• Sheet Size
