Raised Expanded Metal Mesh Sheet 0.5-8mm Thickness Diamond Hole
Product Details:
| Place of Origin: | China |
| Brand Name: | FUHANG |
| Certification: | ISO9001 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Square Meter |
|---|---|
| Price: | 1-30 Square Meter $2/Square Meter >30 Square Meters $1/Square Meter |
| Delivery Time: | 5-8 work days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 50000 square meter /15 Days |
|
Detail Information |
|||
| Product Name: | Stainless Steel Expanded Metal Sheet Mesh | Material: | Stainless Steel |
|---|---|---|---|
| Application: | Protecting Mesh,Screen,Fencing | Type: | Expanded Mesh |
| Weave Style: | EXPANDED METAL | Wire Diameter: | Requirement |
| Feature: | Corrosion Resistance,Beautiful | Usage: | Construction |
| Hole Shape: | Diamond Hole | Thickness: | 0.5-8mm |
| Packing: | Wooden Box,On Your Request,pallet | Short Way Of Mesh: | 2mm-50mm |
| Advantage: | Rich Experience,High Quality With Good Prices,good Worker | ||
| High Light: | Raised Expanded Metal Mesh,8mm Expanded Metal Mesh,Expanded Sheet Metal Mesh |
||
Product Description

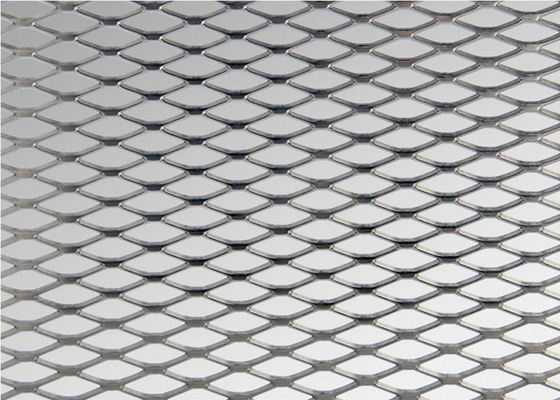

Standard (Raised) Stainless Steel Expanded Metal Sheet Mesh Stainless Steel Expanded Mesh
Expanded metal mesh products consist of sheets or coils of solid metal that feature a diamond pattern that vary by gauge, type of material and size of the diamond. The term “expanded metal” refers to the way the metal is simultaneously die-cut and expanded as it moves through the progressive dies on a press. This process allows it to be expanded up to 10 times its original size, while losing up to 80 percent of its original weight per square foot and retaining its form and rigidity.

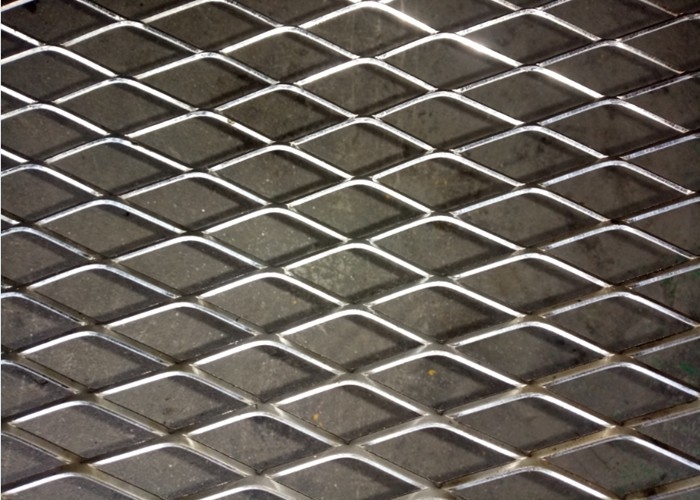

Expanded metal mesh is a type of metal stock that features diamond-shaped patterns that are produced by simultaneously slitting and stretching the material. The standard form of this material is known as raised expanded metal, due to its elevated diamond pattern. Raised standard metal consists of bonds and strands that are set at a uniform angle to the plane of the metal sheet, resulting in additional strength and rigidity.
Our expanded sheet metal mesh materials include aluminum, carbon steel, stainless steel and galvanized steel. Expanded Metal stainless steel sheet is available through our company in flattened or standard (raised) styles with a variety of options in thickness, area, pattern, design, opening and more.
Stainless Data Sheet: 304/L Stainless 316/L Stainless
|
Style |
Lbs. Per |
Design Sizes |
Opening Size |
Approx. Strand |
Approx. No. |
Open |
||||
|---|---|---|---|---|---|---|---|---|---|---|
| ----- | ------ | SWD | LWD | SWO | LWO | Thickness | Width | SWD | LWD | ------ |
| 1/2" x #18 | 73 | .50 | 1.20 | .43 | .94 | .050 | .087 | 24 | 10 | 77 |
| 1/2" x #16 | 91 | .50 | 1.20 | .43 | .94 | .062 | .087 | 24 | 10 | 70 |
| 1/2" x #13 | 187 | .50 | 1.20 | .31 | .88 | .093 | .120 | 24 | 10 | 58 |
| 3/4" x #18 | 48 | .92 | 2.00 | .81 | 1.75 | .050 | .106 | 13 | 6 | 89 |
| 3/4" x #16 | 60 | .92 | 2.00 | .81 | 1.75 | .062 | .106 | 13 | 6 | 85 |
| 3/4" x #13 | 91 | .92 | 2.00 | .75 | 1.69 | .093 | .108 | 13 | 6 | 78 |
| 3/4" x #10 | 205 | .92 | 2.00 | .69 | 1.56 | .140 | .161 | 13 | 6 | 67 |
| 1-1/2" x #16 | 45 | 1.33 | 3.00 | 1.25 | 2.75 | .062 | .115 | 9 | 4 | 89 |
| 1-1/2" x #13 | 68 | 1.33 | 3.00 | 1.25 | 2.62 | .093 | .116 | 9 | 4 | 86 |
| 1-1/2" x #9 | 137 | 1.33 | 3.00 | 1.13 | 2.50 | .140 | .155 | 9 | 4 | 75 |
Application :
Stainless steel expanded metal mesh can be used for escalators, passages, mines, locomotives, roads, municipal facilities, residential areas, and can also be used for filter elements, medicine, papermaking, filtration, packaging nets, mechanical facility protection, handicraft manufacturing, speaker net covers, Decoration, baskets,baskets and road protection, oil tanker pedal nets, working platforms, escalators and walkways for heavy machinery and boilers, oil mines, locomotives, and 10,000-ton ships.
