Flattened Stainless Steel Expanded Metal Sheet Corrosion Resistance
Product Details:
| Place of Origin: | China |
| Brand Name: | FUHANG |
| Certification: | ISO9001 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Square Meter |
|---|---|
| Price: | 1-30 Square Meter $2/Square Meter >30 Square Meters $1/Square Meter |
| Delivery Time: | 5-8 work days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 50000 square meter /15 Days |
|
Detail Information |
|||
| Product Name: | Flattened Stainless Steel Expanded Metal Sheet | Material: | Stainless Steel |
|---|---|---|---|
| Application: | Protecting Mesh,Screen,Fencing | Type: | Expanded Mesh |
| Weave Style: | EXPANDED METAL | Wire Diameter: | Requirement |
| Usage: | Construction | Hole Shape: | Diamond Hole |
| Thickness: | 0.5-8mm | Packing: | Wooden Box,On Your Request,pallet |
| Short Way Of Mesh: | 2mm-50mm | Feature: | Corrosion Resistance , Beautiful |
| Advantage: | Rich Experience,High Quality With Good Prices,good Worker | ||
| High Light: | Stainless Steel Expanded Metal Sheet,Stainless Flattened Expanded Sheet |
||
Product Description

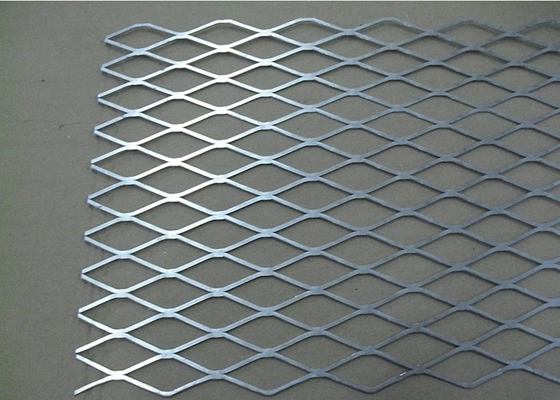

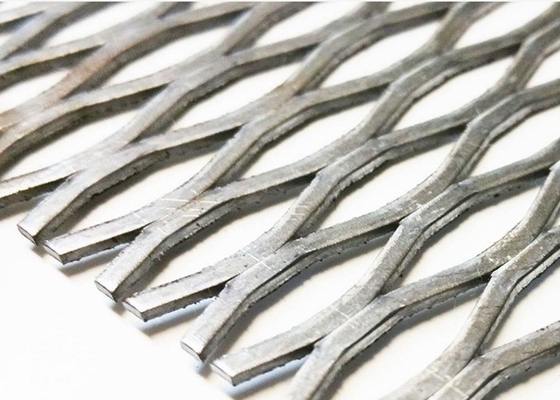

Flattened Stainless Steel Expanded Metal Sheet Stainless Steel Expanded Metal Mesh
Flattened expanded metal sheet is metal that has been cold flattened, leaving a smooth, flat surface with diamond shaped openings. During this process, the length of the sheet is elongated, usually by about five percent. After the expanded metal sheet has been flattened, the expanded sheet is then sent through a leveler to maintain its flatness. As a leading expanded metal supplier, Fuhang Company provides durable, economical, and versatile expanded metal. This product is available in many material options, such as carbon steel, galvanized steel, aluminum, and stainless steel.
Features of flattened expanded metal sheet :
Smooth surface. It supplies a safe and smooth surface, which will not hurt people.
Corrosion and rust resistance. Various surface treatment and aluminum, stainless steel materials have outstanding chemical stability.
Lightweight. The aluminum expanded metal sheet is lightweight and it can save materials and freight costs.
Easy to install and uninstall. The installation of flattened expanded metal sheet is easy and no need any special tools.
Wide range of applications. The flattened expanded metal sheets are widely seen in our daily life, such as shelves, wastebaskets, furniture, etc.
Examples of Flattened Expanded Metal Uses and Applications
Flattened expanded metal has a wide range of industrial applications. It is frequently used to by architects in the design of ornamental accents such as wall partitions or garage screening. Flattened expanded metal fabrications can also be incorporated into the design of fencing and security partitions. Additionally, it has many household applications, such as for outdoor/patio furniture.
The following is the product data table of flattened stainless steel expanded metal sheet :
|
Style |
Lbs. Per |
Design |
Opening |
Approx. Strand |
Overall |
Approx. No. |
Open |
||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| SWD | LWD | SWO | LWO | Thickness | Width | SWD | LWD | ||||
| 1/2" x #18F | 69 | .50 | 1.25 | .31 | 1.00 | .40 | .093 | .040 | 24 | 10 | 68 |
| 1/2" x #16F | 86 | .50 | 1.25 | .31 | 1.00 | .050 | .093 | .040 | 24 | 10 | 60 |
| 1/2" x #13F | 178 | .50 | 1.25 | .25 | 1.00 | .080 | .132 | .080 | 24 | 10 | 56 |
| 3/4" x #18Fv | 46 | .92 | 2.10 | .75 | 1.81 | .040 | .118 | .040 | 13 | 6 | 77 |
| 3/4" x #16F | 57 | .92 | 2.10 | .75 | 1.81 | .050 | .118 | .050 | 13 | 6 | 75 |
| 3/4" x #13F | 87 | .92 | 2.10 | .63 | 1.75 | .070 | .120 | .070 | 13 | 6 | 74 |
| 3/4" x #9F | 195 | .92 | 2.10 | .56 | 1.69 | .119 | .160 | .119 | 13 | 6 | 64 |
| 1-1/2" x #16F | 43 | 1.33 | 3.20 | 1.06 | 2.75 | .050 | .124 | .050 | 9 | 4 | 83 |
| 1-1/2" x #13F | 65 | 1.33 | 1.00 | 2.63 | .079 | .079 | .124 | .079 | 9 | 4 | 79 |
| 1-1/2" x #9F | 131 | 1.33 | 3.20 | 0.94 | 2.63 | .119 | .165 | .199 | 9 | 4 | 76 |
How to Order Flattened Expanded Metal ?.
When ordering or specifying Expanded Metal, please confirm:
• The Style
• Flattened or Raised
• Material
• Sheet Size
