Steel Expanded Metal Sheet Flattened / 0.5-8mm Expanded Metal Diamond Mesh
Product Details:
| Place of Origin: | China |
| Brand Name: | FUHANG |
| Certification: | ISO9001 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Square Meter |
|---|---|
| Price: | 1-30 Square Meter $2/Square Meter >30 Square Meters $1/Square Meter |
| Delivery Time: | 5-8 work days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 50000 square meter /15 Days |
|
Detail Information |
|||
| Product Name: | Standard(Raised) Carbon Steel Expanded Metal Sheet Mesh | Material: | Carbon Steel |
|---|---|---|---|
| Application: | Protecting Mesh,Screen,Fencing | Type: | Expanded Mesh |
| Weave Style: | EXPANDED METAL | Wire Diameter: | Requirement |
| Usage: | Construction | Hole Shape: | Diamond Hole |
| Thickness: | 0.5-8mm | Packing: | Wooden Box,On Your Request,pallet |
| Short Way Of Mesh: | 2mm-50mm | Advantage: | Rich Experience,High Quality With Good Prices,good Worker |
| High Light: | Steel Expanded Metal Sheet Flattened,8mm Expanded Metal Diamond Mesh |
||
Product Description

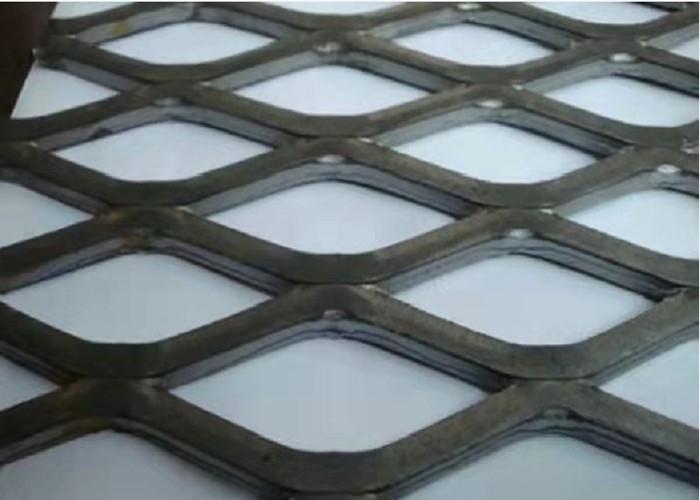

Flattened Carbon Steel Expanded Metal Sheet Flattened Expanded Metal
Flattened expanded metal sheet is an extremely versatile product that is created by making multiple slits in a sheet of metal, then stretching the sheet to produce a unique diamond pattern. This variation of the standard expanded metal manufacturing process involves flattening the sheet by passing it through flattening rolls, a technique known as “cold rolling.” This produces thin, expanded metal sheets and stretches the pattern even further, while also providing a smoother, flatter finish.
Features of flattened expanded metal sheet :
Smooth surface It supplies a safe and smooth surface, which will not hurt people.
Corrosion and rust resistance Various surface treatment and aluminum, stainless steel materials have outstanding chemical stability.
Lightweight The aluminum expanded metal sheet is lightweight and it can save materials and freight costs.
Easy to install and uninstall The installation of flattened expanded metal sheet is easy and no need any special tools.
Wide range of applications The flattened expanded metal sheets are widely seen in our daily life, such as shelves, wastebaskets, furniture, etc.
Examples of Flattened Expanded Metal Sheet Uses and Applications
Flattened expanded metal sheet has a wide range of industrial applications. It is frequently used to by architects in the design of ornamental accents such as wall partitions or garage screening. Flattened expanded metal fabrications can also be incorporated into the design of fencing and security partitions. Additionally, it has many household applications, such as for outdoor/patio furniture.
The following is the product data table of flattened carbon steel expanded metal sheet :
|
Style |
Lbs. Per |
Design |
Opening |
Approx. Strand |
Overall |
Approx. No. |
Open |
||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| SWD | LWD | SWO | LWO | Thickness | Width | SWD | LWD | ||||
| 1/4" x #20F | 82 | .25 | 1.05 | .110 | .715 | .030 | .079 | .030 | 48 | 11.6 | 35 |
| 1/4" x #18F | 108 | .25 | 1.05 | .118 | .715 | .040 | .080 | .040 | 48 | 11.6 | 35 |
| 1/2" x #20F | 40 | .50 | 1.25 | .375 | 1.00 | .029 | .079 | .029 | 24 | 9.5 | 65 |
| 1/2" x #18F | 66 | .50 | 1.25 | .312 | 1.00 | .039 | .097 | .039 | 24 | 9.5 | 63 |
| 1/2" x #16F | 82 | .50 | 1.25 | .312 | 1.00 | .050 | .096 | .050 | 24 | 9.5 | 63 |
| 1/2" x #13F | 140 | .50 | 1.25 | .265 | 1.00 | .078 | .107 | .078 | 24 | 9.5 | 52 |
| 3/4" x #16F | 54 | .923 | 2.00 | .813 | 1.75 | .060 | .101 | .210 | 13 | 6 | 78 |
| 3/4" x #13F | 80 | .923 | 2.00 | .750 | 1.688 | .090 | .096 | .205 | 113 | 6 | 76 |
| 3/4" x #10F | 120 | .923 | 2.00 | .750 | 1.625 | .090 | .144 | .290 | 13 | 6 | 72 |
| 3/4" x #9F | 180 | .923 | 2.00 | .688 | 1.562 | .134 | .150 | .32 | 13 | 6 | 68 |
| 1" x #16F | 41 | 1.00 | 2.50 | .813 | 2.250 | .050 | .098 | .050 | 12 | 4.68 | 78 |
| 1-1/2" x #16F | 40 | 1.33 | 3.00 | 1.25 | 2.625 | .060 | .108 | .230 | 9 | 4 | 85 |
| 1-1/2" x #13F | 60 | 1.33 | 3.00 | 1.188 | 2.500 | .090 | .105 | .242 | 9 | 4 | 85 |
| 1-1/2" x #10F | 79 | 1.33 | 3.00 | 1.188 | 2.500 | .090 | .138 | .284 | 9 | 4 | 80 |
| 1-1/2" x #9F | 120 | 1.33 | 3.00 | 1.125 | 2.375 | .134 | .144 | .312 | 9 | 4 | 76 |
| 1-1/2" x #6F | 250 | 1.33 | 3.00 | 1.110 | 2.375 | .94 | .203 | .433 | 9 | 4 | 69 |
