Standard Stainless Steel Expanded Metal Mesh Screen Diamond Shaped Patterns
Product Details:
| Place of Origin: | China |
| Brand Name: | FUHANG |
| Certification: | ISO9001 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Square Meter |
|---|---|
| Price: | 1-30 Square Meter $2/Square Meter >30 Square Meters $1/Square Meter |
| Delivery Time: | 5-8 work days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 50000 square meter /15 Days |
|
Detail Information |
|||
| Product Name: | Standard(Raised) Carbon Steel Expanded Metal Sheet Mesh | Material: | Carbon Steel |
|---|---|---|---|
| Application: | Protecting Mesh,Screen,Fencing | Type: | Expanded Mesh |
| Weave Style: | EXPANDED METAL | Wire Diameter: | Requirement |
| Thickness: | 0.5-8mm | Packing: | Wooden Box,On Your Request,pallet |
| Short Way Of Mesh: | 2mm-50mm | Usage: | Construction |
| Advantage: | Rich Experience,High Quality With Good Prices,good Worker | Hole Shape: | Diamond Hole |
| High Light: | Stainless Steel Expanded Metal Mesh,Expanded Metal Mesh Screen,Aluminum Expanded Metal Screen |
||
Product Description
Standard(Raised) Carbon Steel Expanded Metal Sheet Mesh

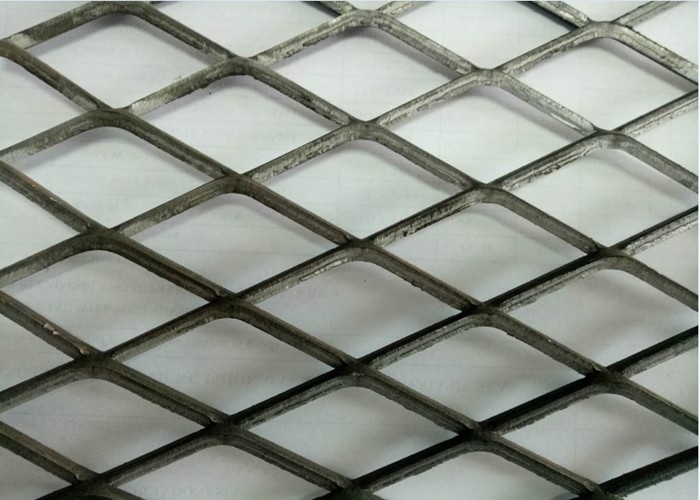

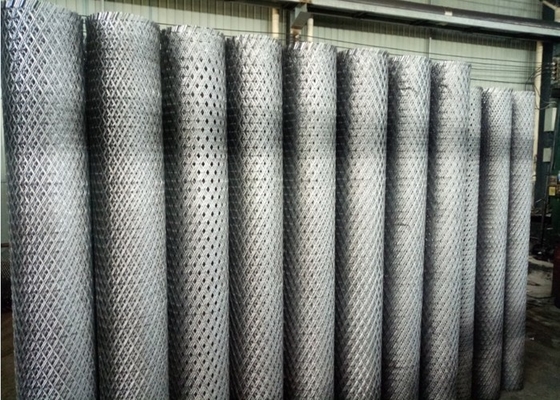

Expanded metal mesh products consist of sheets or coils of solid metal that feature a diamond pattern that vary by gauge, type of material and size of the diamond. The term “expanded metal” refers to the way the metal is simultaneously die-cut and expanded as it moves through the progressive dies on a press. This process allows it to be expanded up to 10 times its original size, while losing up to 80 percent of its original weight per square foot and retaining its form and rigidity.
Expanded metal mesh is a type of metal stock that features diamond-shaped patterns that are produced by simultaneously slitting and stretching the material. The standard form of this material is known as raised expanded metal, due to its elevated diamond pattern. Raised standard metal consists of bonds and strands that are set at a uniform angle to the plane of the metal sheet, resulting in additional strength and rigidity.
Our expanded sheet metal mesh materials include aluminum, carbon steel, stainless steel and galvanized steel. Expanded Metal stainless steel sheet is available through our company in flattened or standard (raised) styles with a variety of options in thickness, area, pattern, design, opening and more.
The following is the specific data table of the standard(raised) carbon steel expanded metal sheet mesh :
|
Style |
Lbs. Per |
Design |
Opening |
Approx. Strand |
Overall |
Approx. No. |
Open |
||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| SWD | LWD | SWO | LWO | Thickness | Width | SWD | LWD | ||||
| 1/4 x #20 | 86 | .25 | 1.0 | .125 | .718 | .036 | .072 | .135 | 48 | 12 | 45 |
| 1/4" x #18 | 114 | .25 | 1.0 | .110 | .718 | .048 | .072 | .147 | 48 | 12 | 43 |
| 1/2" x #20 | 43 | .50 | 1.20 | .438 | .938 | .036 | .072 | .140 | 24 | 10 | 80 |
| 1/2" x #18 | 70 | .50 | 1.20 | .438 | .938 | .048 | .088 | .172 | 24 | 10 | 72 |
| 1/2" x #16 | 86 | .50 | 1.20 | .438 | .938 | .060 | .087 | .175 | 24 | 10 | 65 |
| 1/2" x #13 | 147 | .50 | 1.20 | .312 | .938 | .090 | .096 | .204 | 24 | 10 | 57 |
| 3/4" x #18 | 48 | .92 | 2.00 | .81 | 1.75 | .050 | .106 | .200 | 13 | 6 | 89 |
| 3/4" x #16 | 54 | .923 | 2.00 | .813 | 1.75 | .060 | .101 | .210 | 13 | 6 | 78 |
| 3/4" x #13 | 80 | .923 | 2.00 | .750 | 1.688 | .090 | .096 | .205 | 13 | 6 | 76 |
| 3/4" x #10 | 120 | .923 | 2.00 | .750 | 1.625 | .090 | .144 | .290 | 13 | 6 | 72 |
| 3/4" x #9 | 180 | .923 | 2.00 | .688 | 1.562 | .134 | .150 | .312 | 13 | 6 | 68 |
| 1-1/2" x #16 | 40 | 1.33 | 3.00 | 1.25 | 2.625 | .060 | .108 | .230 | 9 | 4 | 85 |
| 1-1/2" x #13 | 60 | 1.33 | 3.00 | 1.188 | 2.50 | .090 | .105 | .242 | 9 | 4 | 85 |
| 1-1/2" x #10 | 79 | 1.33 | 3.00 | 1.188 | 2.50 | .090 | .138 | .284 | 9 | 4 | 80 |
| 1-1/2" x #9 | 120 | 1.33 | 3.00 | 1.125 | 2.375 | .194 | .144 | .312 | 9 | 4 | 76 |
| 1-1/2" x #6 | 250 | 1.33 | 3.00 | 1.110 | 2.375 | .194 | .203 | .433 | 9 | 4 | 69 |
