150X150 Mesh Fine Brass Mesh SWG46 Corrosion Resistance For Sieving / Filtering
Product Details:
| Place of Origin: | China |
| Brand Name: | FUHANG |
| Certification: | ISO9001 |
| Model Number: | 150X150Mesh |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Square Meter |
|---|---|
| Price: | 1-30 Square Meter $8/Square Meter >30 Square Meters $6/Square Meter |
| Packaging Details: | paper tube inside+ wodden box +plastic bag |
| Delivery Time: | 3-10 work days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 1000 Rolles Per Month |
|
Detail Information |
|||
| Product Name: | SWG46 150X150 Mesh Brass Wire Mesh | Name: | Brass Wire Mesh |
|---|---|---|---|
| Application: | Woven Wire Mesh | Weave Style: | Plain Weave,double Crimp,twill Weave |
| Hole Shape: | Square Hole | Width: | Common Width 1m |
| Usage: | Liquid Filter,smoking Filter,Industry | Material: | Brass Wire |
| Mesh: | 150X150 Mesh | Wire Diameter: | Requirement |
| Technique: | Woven | Color: | Golden Or Yellow |
| Length: | 30.0m/Roll | Mesh Size: | 1*30m 1.2*30m 1.5*30m |
| High Light: | Sieving Fine Brass Mesh,Filtering Fine Brass Mesh,SWG46 Brass Mesh Screen |
||
Product Description

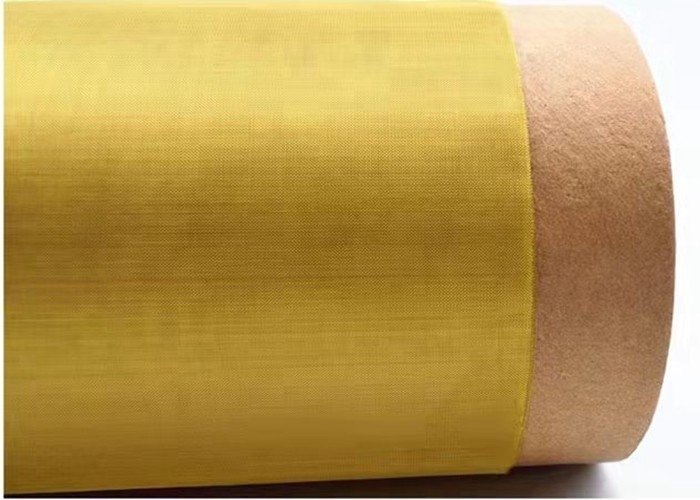

SWG46 150X150 Mesh Fine Brass Mesh Brass Mesh Screen For Sieving And Filtering
Brass Wire Mesh is an alloy of copper and zinc. It has better resistance to abrasion and corrosion, compared to Copper, it has low electrical conductivity. Brass and phosphor bronze are frequently used in sieving diversified pellet, powder, porcelain clay and glass, chinaware printing, filtering liquid and gas.
Brass Wire Mesh When stainless steel material is not needed, Brass wire mesh can be used instead. Brass wires are ideal as they have superior resistance to abrasion and corrosion. They also have a lower electrical conductivity compared to copper wire mesh.
With our expertise in this domain, we are able to offer a superior quality range of Brass Wire Mesh. All our products are available in various sizes, designs, and shapes at market leading prices to meet the demands of customers. Apart from this, we have a team of expert quality controllers, which checks all the products on various parameters to ensure flawlessness.
We can offer brass wire mesh in the standard specifications, apertures range from 0.077 mm to 4 mm, while wire diameters range from 0.05 mm to 0.7 mm, and the manufactured width from 36 inch to 72 inch. The standard materials are grade 65/35 or grade 70/30 brass wire.
SWG46 150X150 mesh brass wire mesh is one of the most popular varieties of our brass woven net products. Its wire diameter is 0.06mm (0.0024``), the opening is 0.109mm (0.004``), and the opening rate is 41.68%. The width is 36 inches, 40 inches, 48 inches, 60 inches, 72 inches and so on. Standard Roll length is 100Feet, we also can cut to requested size as customers’ requirement.
Brass wire mesh has a wide range of characteristics:
60-80% Copper + 15-40% Zinc.
Flexibility, better ductility, easy to bend and easy to form.
Excellent abrasion resistance and tensile strength.
Brass wire mesh is a quite hard material, very suitable for architectural applications.
The natural golden yellow metallic color is very suitable as decorative application.
Good thermal and electrical conductivity.
Corrodes when exposed to ammonia and other salts, but not easy to rust in most cases.
The cost of brass mesh is the lowest among all copper mesh products. When conductivity is not very important, the brass mesh is a good choice.
The Brass wire mesh products are widely applicable for the technical and mechanical operations in various industries are as given below:
Off-Shore Oil and Gas Drilling
Petrochemical and Pharmaceuticals Industry
Construction and Architectural Industry
Specialty Chemicals Industry
Plastic and Polymers Industry
Food Industries
Seawater Desalination
Paper Pulp Industries
