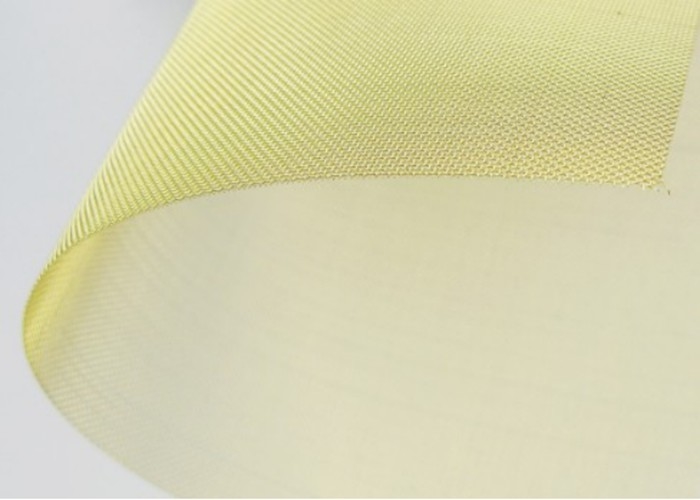

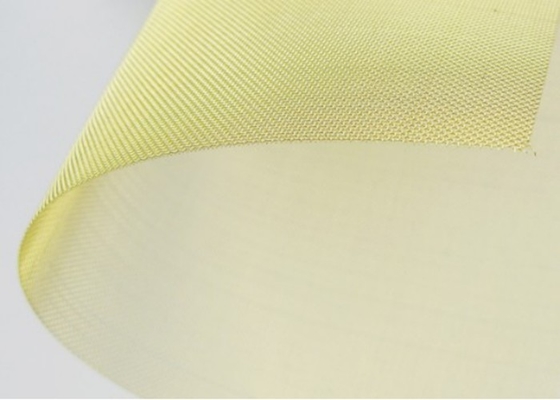

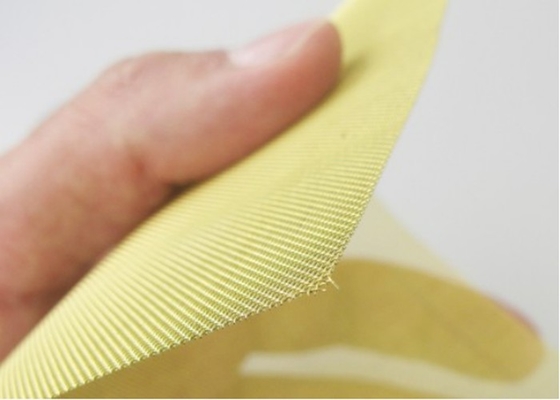

Woven Type Brass Wire Mesh Screen Square Hole 1m Width For Liquid Filter
Product Details:
| Place of Origin: | China |
| Brand Name: | FUHANG |
| Certification: | ISO9001 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Square Meter |
|---|---|
| Price: | 1-30 Square Meter $8/Square Meter >30 Square Meters $6/Square Meter |
| Packaging Details: | paper tube inside+ wodden box +plastic bag |
| Delivery Time: | 3-10 work days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 1000 Rolles Per Month |
|
Detail Information |
|||
| Name: | Brass Wire Mesh | Application: | Woven Wire Mesh |
|---|---|---|---|
| Material: | Brass Wire | Weave Style: | Plain Weave,double Crimp,twill Weave |
| Product Name: | Brass Wire Mesh For Making Jewelry Ccessory | Hole Shape: | Square Hole |
| Technique: | Woven | Width: | Common Width 1m |
| Usage: | Liquid Filter , Smoking Filter,Industry | Mesh: | 2-200 Mesh |
| Wire Diameter: | Requirement | Color: | Golden Or Yellow |
| Length: | 30.0m/Roll | Mesh Size: | 1*30m 1.2*30m 1.5*30m |
| High Light: | Brass Wire Mesh Screen,Square Hole Brass Wire Mesh,1m Brass Woven Wire Mesh |
||
Product Description
Brass wire mesh, it is also called brass wire cloth and brass wire fabric, plain weave, twilled weave, square weave
Brass wire mesh is produced in plain weave or twilled weave, it is also called brass wire cloth and brass wire fabric. Brass is an non-ferrous metal alloy made of copper and zinc, the zinc can increases abrasion resistance and allows for higher tensile strength. With the features, the brass wire mesh are widely used in the filtration and separation industries.
Brass wire mesh can be used instead of stainless steel wire material. Brass wires are ideal as they have superior resistance to abrasion and corrosion. They also have a lower electrical conductivity compared to copper wire mesh.
Brass is the alloy of copper and zinc. It contains 65% copper and 35% zinc. Compared with the red color of copper woven wire mesh the brass woven wire mesh has yellow colors.Brass wire mesh is a kind of bright and decorative metal mesh, its unique golden yellow color make it often used in architectural and decorative industries.
The brass wire mesh is also called paper making cloth which is used in the paper making industry. Paper making cloth uses the phosphor bronze wires in the warp and brass wires in the weft. Brass woven wire cloth has outstanding acid and alkali resistance so it is widely used for filtering applications.
We can offer brass wire mesh in the standard specifications, apertures range from 0.077 mm to 4 mm, while wire diameters range from 0.05 mm to 0.7 mm, and the manufactured width between 0.914 m and 1.22 m. The standard materials are grade 65/35 or grade 70/30 brass wire.
Benefits
Flat surface and flexible wire cloth
Good corrosion resistance
High abrasion resistance and tensile strength
Wire diameter and mesh with ratio reasonable, weave structure is very strong
Brass wire mesh has unique golden yellow color, bright and beautiful
Brass wire mesh materials
Brass wire mesh is comprised of copper and zinc, it is available in three different wire materials:
C28000 (CuZn37) brass wire
C27000 (CuZn35) brass wire
C26000 (CuZn30) brass wire
Application
Usage of brass wire mesh includes:
In the architectural & decorative industries, for the screen of cabinet, window, door and interior wall.
In the EMI & RFI shielding industries, for screen room, shielded enclosures and faraday cage.
In the filtration and separation industries, for SPL filter discs and pleated filter.
In the petrochemical & chemical industries, for cylinder mold of paper making.
In battery industries, as an current collectors part of fuel cells.
Brass wire mesh rolls
Roll length: standard size is 30 m in length. And also can cut to requested size as customers’ requirement.
Roll width 0.914 m, 1 m 1.22 m, 1.5 m to 2 m
Other rolls size on request
Specification of Brass Wire Mesh
| Mesh/Inch | Wire Diameter(mm) | Aperture(mm) | Open Area % |
| 4 | 1.2 | 5.15 | 65.8 |
| 5 | 1 | 4.08 | 64.5 |
| 6 | 0.71 | 3.52 | 69.2 |
| 8 | 0.5 | 2.67 | 70.7 |
| 10 | 0.5 | 2.04 | 64.5 |
| 12 | 0.45 | 1.66 | 61.5 |
| 14 | 0.4 | 1.41 | 60.4 |
| 16 | 0.3 | 1.28 | 65 |
| 18 | 0.25 | 1.16 | 67.6 |
| 20 | 0.25 | 1.02 | 64.5 |
| 30 | 0.21 | 0.64 | 57.1 |
| 40 | 0.19 | 0.45 | 50.2 |
| 50 | 0.15 | 0.36 | 50.1 |
| 60 | 0.15 | 0.27 | 40.7 |
| 70 | 0.13 | 0.232 | 40.8 |
| 80 | 0.12 | 0.197 | 39 |
| 90 | 0.11 | 0.172 | 37.2 |
| 100 | 0.1 | 0.154 | 37 |
| 110 | 0.09 | 0.141 | 37.2 |
| 120 | 0.09 | 0.122 | 33.2 |
| 130 | 0.07 | 0.125 | 41 |
| 140 | 0.07 | 0.111 | 37.6 |
| 150 | 0.06 | 0.109 | 41.5 |
| 160 | 0.06 | 0.098 | 38.1 |
| 180 | 0.053 | 0.088 | 41.6 |
| 200 | 0.05 | 0.077 | 36.7 |
Note: Special size and specifications can be made according to customers requires.
When ordering or requesting a quote for brass wire mesh, please specify:
Number of length 30 m for 1 m wide rolls or size required
Mesh eg. 60 mesh
Diameter of wire eg. 0.15 mm
Aperture eg. 0.27 mm
Material eg. Grade CuZn35 brass
