SWG44 120X120 Mesh Brass Wire Mesh Fabric 30.0m/Roll Plain Weave Style
Product Details:
| Place of Origin: | China |
| Brand Name: | FUHANG |
| Certification: | ISO9001 |
| Model Number: | 120X120Mesh |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Square Meter |
|---|---|
| Price: | 1-30 Square Meter $8/Square Meter >30 Square Meters $6/Square Meter |
| Packaging Details: | paper tube inside+ wodden box +plastic bag |
| Delivery Time: | 3-10 work days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 1000 Rolles Per Month |
|
Detail Information |
|||
| Product Name: | SWG44 120X120 Mesh Brass Wire Mesh | Name: | Brass Wire Mesh |
|---|---|---|---|
| Application: | Woven Wire Mesh | Material: | Brass Wire |
| Weave Style: | Plain Weave,double Crimp,twill Weave | Hole Shape: | Square Hole |
| Technique: | Woven | Width: | Common Width 1m |
| Usage: | Liquid Filter,smoking Filter,Industry | Mesh: | 120X120 Mesh |
| Wire Diameter: | Requirement | Color: | Golden Or Yellow |
| Length: | 30.0m/Roll | Mesh Size: | 1*30m 1.2*30m 1.5*30m |
| High Light: | 120X120 Mesh Brass Wire Mesh,SWG44 Brass Wire Mesh,30m/Roll Brass Mesh Fabric |
||
Product Description

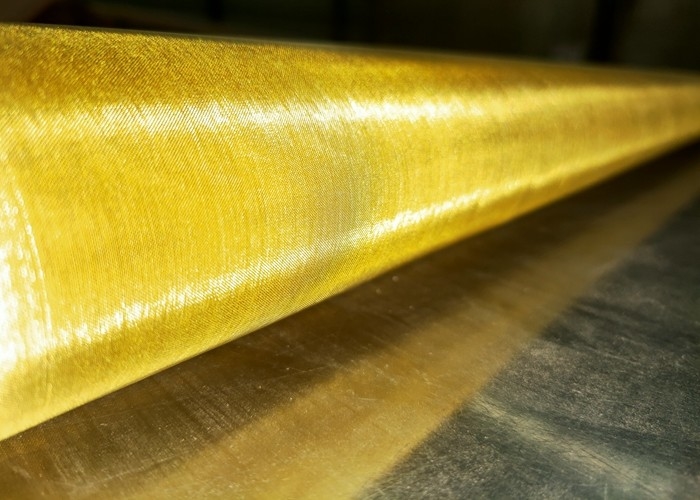

SWG44 120X120 Mesh Brass Wire Mesh For Sieving And Filtering
Brass wire mesh is produced in plain weave or twilled weave, it is also called brass wire cloth and brass wire fabric. Brass is an non-ferrous metal alloy made of copper and zinc, the zinc can increases abrasion resistance and allows for higher tensile strength. With the features, the brass wire mesh are widely used in the filtration and separation industries.
We can offer brass wire mesh in the standard specifications, apertures range from 0.077 mm to 4 mm, while wire diameters range from 0.05 mm to 0.7 mm, and the manufactured width between 0.914 m and 1.22 m. The standard materials are grade 65/35 or grade 70/30 brass wire.
SWG44 120 mesh brass wire mesh is one of the most popular varieties of our brass woven net products. Its wire diameter is 0.08mm (0.0031``), the opening is 0.132mm (0.0052``), and the opening rate is 38.91%. The width is 36 inches, 40 inches, 48 inches, 60 inches, 72 inches and so on. Standard Roll length is 100Feet, we also can cut to requested size as customers’ requirement.
Feature:
Flat surface and flexible wire cloth
Good corrosion resistance
High abrasion resistance and tensile strength
Wire diameter and mesh with ratio reasonable, weave structure is very strong
Application
Usage of brass wire mesh includes:
In the architectural & decorative industries, for the screen of cabinet, window, door and interior wall.
In the EMI & RFI shielding industries, for screen room, shielded enclosures and faraday cage.
In the filtration and separation industries, for SPL filter discs and pleated filter.
In the petrochemical & chemical industries, for cylinder mold of paper making.
In battery industries, as an current collectors part of fuel cells.
