• 100X100 Mesh Brass Wire Mesh SWG42 Square Hole For Sieving / Filtering
100X100 Mesh Brass Wire Mesh SWG42 Square Hole For Sieving / Filtering

100X100 Mesh Brass Wire Mesh SWG42 Square Hole For Sieving / Filtering

Product Details:

Place of Origin: China
Brand Name: FUHANG
Certification: ISO9001
Model Number: 100X100Mesh

Payment & Shipping Terms:

Minimum Order Quantity: 1 Square Meter
Price: 1-30 Square Meter $8/Square Meter >30 Square Meters $6/Square Meter
Packaging Details: paper tube inside+ wodden box +plastic bag
Delivery Time: 3-10 work days
Payment Terms: L/C, T/T
Supply Ability: 1000 Rolles Per Month
Get Best Price Contact Now

Detail Information

Product Name: SWG44 100X100 Mesh Brass Wire Mesh Name: Brass Wire Mesh
Application: Woven Wire Mesh Material: Brass Wire
Weave Style: Plain Weave,double Crimp,twill Weave Hole Shape: Square Hole
Technique: Woven Width: Common Width 1m
Usage: Liquid Filter,smoking Filter,Industry Mesh: 100X100 Mesh
Wire Diameter: Requirement Color: Golden Or Yellow
Length: 30.0m/Roll Mesh Size: 1*30m 1.2*30m 1.5*30m
High Light:

100X100 Brass Wire Mesh


SWG42 Brass Wire Mesh


Sieving Brass Wire Cloth

Product Description

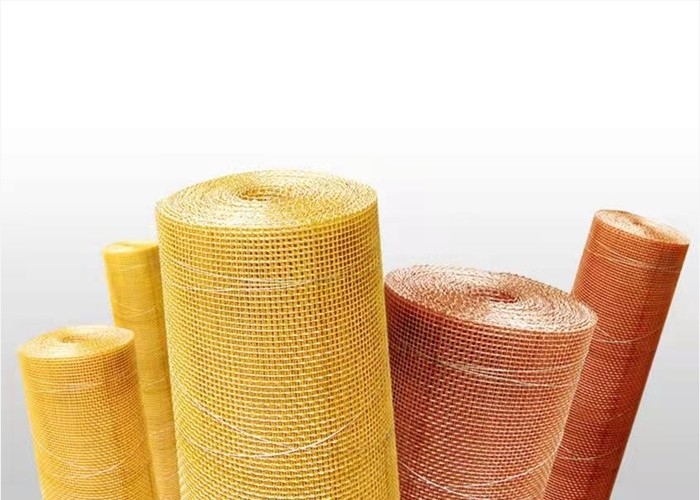

    SWG42 100X100 Mesh Brass Wire Mesh For Sieving And Filtering


   Brass wire mesh is produced in plain weave or twilled weave, it is also called brass wire cloth and brass wire fabric. Brass is an non-ferrous metal alloy made of copper and zinc, the zinc can increases abrasion resistance and allows for higher tensile strength. With the features, the brass wire mesh are widely used in the filtration and separation industries.


   We can offer brass wire mesh in the standard specifications, apertures range from 0.077 mm to 4 mm, while wire diameters range from 0.05 mm to 0.7 mm, and the manufactured width from 36 inch to 72 inch. The standard materials are grade 65/35 or grade 70/30 brass wire.


   SWG42 100 mesh brass wire mesh is one of the most popular varieties of our brass woven net products. Its wire diameter is 0.10mm (0.0039``), the opening is 0.154mm (0.0061``), and the opening rate is 36.76%. The width is 36 inches, 40 inches, 48 inches, 60 inches, 72 inches and so on. Standard Roll length is 100Feet, we also can cut to requested size as customers’ requirement.

100X100 Mesh Brass Wire Mesh SWG42 Square Hole For Sieving / Filtering 0

Brass wire mesh has a wide range of characteristics:

60-80% Copper + 15-40% Zinc.

Flexibility, better ductility, easy to bend and easy to form.

Excellent abrasion resistance and tensile strength.

Brass wire mesh is a quite hard material, very suitable for architectural applications.

The natural golden yellow metallic color is very suitable as decorative application.

Good thermal and electrical conductivity.

Corrodes when exposed to ammonia and other salts, but not easy to rust in most cases.

The cost of brass mesh is the lowest among all copper mesh products. When conductivity is not very important, the brass mesh is a good choice.



Usage of brass wire mesh includes:

In the architectural & decorative industries, for the screen of cabinet, window, door and interior wall.

In the EMI & RFI shielding industries, for screen room, shielded enclosures and faraday cage.

In the filtration and separation industries, for SPL filter discs and pleated filter.

In the petrochemical & chemical industries, for cylinder mold of paper making.

In battery industries, as an current collectors part of fuel cells.
