• Brass Decorative Wire Mesh SWG38 60X60 Mesh Plain Weave Woven Type
Brass Decorative Wire Mesh SWG38 60X60 Mesh Plain Weave Woven Type

Brass Decorative Wire Mesh SWG38 60X60 Mesh Plain Weave Woven Type

Product Details:

Place of Origin: China
Brand Name: FUHANG
Certification: ISO9001
Model Number: 60X60Mesh

Payment & Shipping Terms:

Minimum Order Quantity: 1 Square Meter
Price: 1-30 Square Meter $8/Square Meter >30 Square Meters $6/Square Meter
Packaging Details: paper tube inside+ wodden box +plastic bag
Delivery Time: 3-10 work days
Payment Terms: L/C, T/T
Supply Ability: 1000 Rolles Per Month
Get Best Price Contact Now

Detail Information

Product Name: SWG38 60X60 Mesh Brass Wire Mesh Name: Brass Wire Mesh
Application: Woven Wire Mesh Material: Brass Wire
Weave Style: Plain Weave,double Crimp,twill Weave Technique: Woven
Width: Common Width 1m Usage: Liquid Filter,smoking Filter,Industry
Mesh: 60X60 Mesh Wire Diameter: Requirement
Color: Golden Or Yellow Hole Shape: Square Hole
Length: 30.0m/Roll Mesh Size: 1*30m 1.2*30m 1.5*30m
High Light:

60X60 Brass Decorative Wire Mesh


SWG38 Brass Decorative Wire Mesh

Product Description

    SWG38 60X60 Mesh Brass Woven Mesh Brass Mesh Screen For Sieving And Filtering


    Brass wire mesh, also known as brass wire cloth or brass mesh screen. In brass alloy, the proportion of copper and zinc is in the range of 60% -80% copper and 15% -40% zinc. It is a flexible material. As the wire mesh products, we provide three grades of brass alloy wire including 270 yellow brass (65% copper + 35% zinc), 260 high brass (70% copper + 30% zinc) and red brass (80% copper + 20% zinc). Among them, yellow brass and red brass are the more popular choices.


   We can offer brass wire mesh in the standard specifications, apertures range from 0.077 mm to 4 mm, while wire diameters range from 0.05 mm to 0.7 mm, and the manufactured width from 36 inch to 72 inch. The standard materials are grade 65/35 or grade 70/30 brass wire.


   SWG38 60X60 mesh brass wire mesh is one of the most popular varieties of our brass woven net products. Its wire diameter is 0.15mm (0.0059``), the opening is 0.273mm (0.0107``), and the opening rate is 41.69%. The width is 36 inches, 40 inches, 48 inches, 60 inches, 72 inches and so on. Standard Roll length is 100Feet, we also can cut to requested size as customers’ requirement.

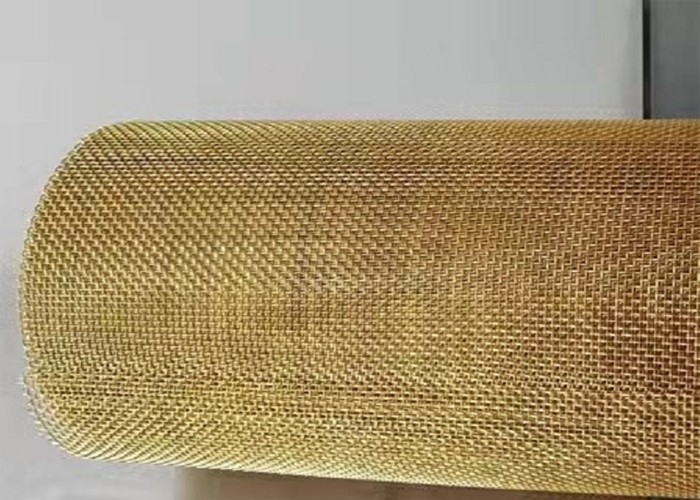

Brass Decorative Wire Mesh SWG38 60X60 Mesh Plain Weave Woven Type 0

Brass wire mesh has a wide range of characteristics:

60-80% Copper + 15-40% Zinc.

Flexibility, better ductility, easy to bend and easy to form.

Excellent abrasion resistance and tensile strength.

Brass wire mesh is a quite hard material, very suitable for architectural applications.

The natural golden yellow metallic color is very suitable as decorative application.

Good thermal and electrical conductivity.

Corrodes when exposed to ammonia and other salts, but not easy to rust in most cases.

The cost of brass mesh is the lowest among all copper mesh products. When conductivity is not very important, the brass mesh is a good choice.


Application of brass mesh and brass wire cloth

Decorative mesh for lamps, cabinets and entertainment centers.

Plumbing screen, filter discs, fireplace screen, window and porch screen.

Sculpture, craft, BBQ grill.

Filter in food, mine, paper making, machine, pharmaceutical, chemical, metallurgy, industry, electricity, commercial and so on.

Sieving and filtering granule, powder, porcelain clay and glass, chinaware printing, grain, filtering liquid and gas.
