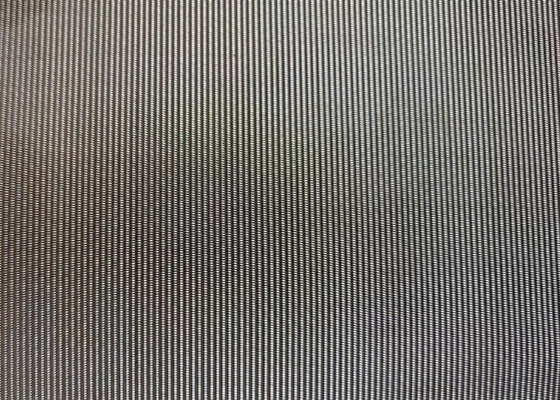

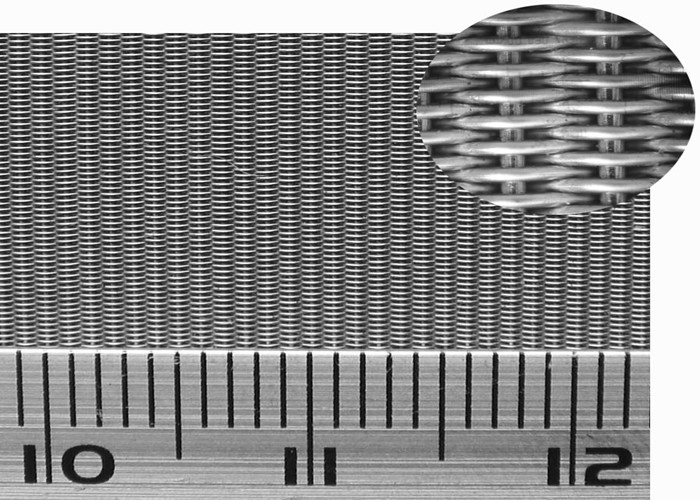

24×110 Mesh Ss 304 Wire Mesh Dia 0.355×0.25mm 120 Micron Plain Dutch Weave
Product Details:
| Place of Origin: | China |
| Brand Name: | FUHANG |
| Certification: | ISO9001 |
| Model Number: | 24X110mesh plain dutch weave wire mesh |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 square meter |
|---|---|
| Price: | USD $0.5-$5 Square Meter |
| Packaging Details: | paper tube inside+ wodden box +plastic bag |
| Delivery Time: | 5-8 days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 10000 Square Meter Per Month |
|
Detail Information |
|||
| Product Name: | 24X110mesh Plain Dutch Weave Wire Mesh | Material: | Stainless Steel Wire,316,304,AISI 304/316/316L/201/202/310S Etc |
|---|---|---|---|
| Application: | Filters,Woven Wire Mesh,mining | Technique: | Woven |
| Type: | Weave Wire Mesh,Wire Cloth,316L,304L | Weave Style: | Dutch Weave |
| Length: | 30m Per Roll Or As Required | Width: | 0.5-2m,can Be Customized |
| Usage: | Liquid Filter,space Flight,oil,Printing,chemical Industry | Feature: | Corrosion Resistance,Acid-resisting,alkali- Resisting,easily Cleaned |
| Mesh: | 24x110MESH | Hole Shape: | Customized,Diamond Hole |
| Color: | Silver | Sample: | Free |
| Roll Width: | 1m And 1.2m Or Customized | Market: | Europe,Australia,Asia,Afirca Etc,America |
| High Light: | ss 304 wire mesh,plain dutch weave ss 304 wire mesh,120 micron plain dutch weave mesh |
||
Product Description
SS 304 WIRE 24×110 MESH DIA. 0.355×0.25MM 120 MICRON PLAIN DUTCH WEAVE WIRE MESH
Stainless steel dutch weave wire mesh offers high filtering efficiency, low pressure loss, constant mesh opening, good dimensional stability, high open surface area and good fireproof property.
Stainless steel dutch weave wire mesh products uses:
Chemicals: acid solution filtration, chemical experiments, chemical particulate filter, gas filter corrosive, caustic dust filtration
Oil: oil purification, oil mud filtration, separation of impurities, etc.
Medicine: Chinese medicine decoction filtration, the solid particulate filtration, purification and other drugs
Electronics: Circuit board framework, electronic components, battery acid, radiation module
Printing: Ink filtration, carbon filtration, purification and other toner
Equipment: vibrating screen
Specification of 24×110 Mesh Dutch Weave Wire Mesh
|
Specifications |
U.S. |
Metric |
|---|---|---|
| Mesh Size | 24×110 per in | 24×110 per 25.4 mm |
| Wire Diameter | 0.0140×0.0098 in | 0.355×0.25 mm |
| Opening | 0.0041 in | 0.105 mm |
| Opening Microns | 105 | 105 |
| Weight / sq.m | 5.29 lb | 2.40 kg |
