SS316 350 Mesh Stainless Steel Wire Cloth Square Hole 0.03mm
Product Details:
| Place of Origin: | China |
| Brand Name: | FUHANG |
| Certification: | ISO9001 |
| Model Number: | 350X350Mesh |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Square Meter |
|---|---|
| Price: | 1-30 Square Meter $5/Square Meter >30 Square Meters $3/Square Meter |
| Packaging Details: | paper tube inside+ wodden box +plastic bag |
| Delivery Time: | 5-8 work days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 50000 square meter /30 Days |
|
Detail Information |
|||
| Product Name: | SS316 1M X100F 350 Mesh Ultra Fine Stainless Steel Wire Mesh | Application: | Woven Wire Mesh |
|---|---|---|---|
| Type: | Wire Cloth | Technique: | Woven |
| Material: | 316,Monel 400 | Width: | 0.5m-3m Or Customized |
| Usage: | Oil,filter | Feature: | Acid-resisting,Anti-corrosion |
| Hole Shape: | Square Hole | Mesh Count: | 350mesh |
| Sample: | Free | ||
| High Light: | 350 Mesh Stainless Steel Wire Cloth,SS316 Stainless Steel Wire Cloth,0.03mm Square Mesh Wire Cloth |
||
Product Description

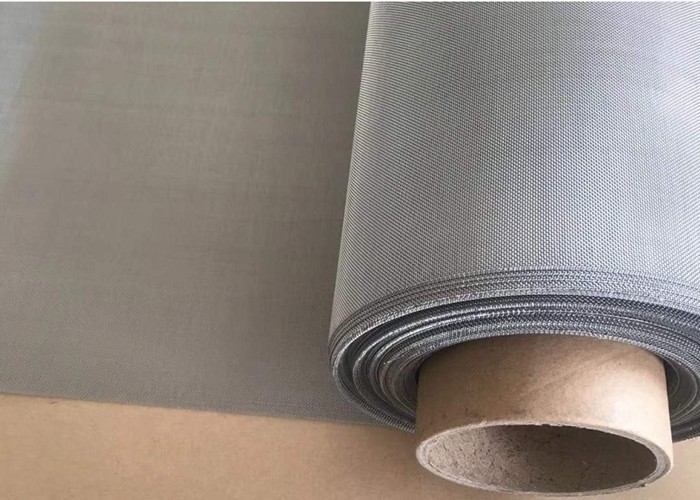

SS316 1M X100F 350 Mesh Ultra Fine Stainless Steel Woven Wire Mesh For Filter and sieving
Our company manufactures and supplies stainless steel wire mesh products to meet and exceed our client’s specific requirements, reducing costs while increasing production efficiency. We have a full range of 304 and 316 stainless steel woven mesh products available for immediate shipping and we can supply our clients with extra wide wire cloth products of up to 240″ wide and extra-long rolls of up to 2000″. Hightop’s wire mesh products comply with the ASTM E2016, ASTM E2814 and ISO 9044 as our minimum standard.
350 mesh ultra fine stainless steel woven wire mesh is a very competitive product among many products in our factory. "Mesh" is the unit of specification for stainless steel wire mesh, which refers to how many holes there are in a length of 1 inch (25.4 mm). 350 mesh stainless steel wire mesh is 350 meshes in one inch length. 350 mesh ultra fine stainless steel wire mesh is also called 350 mesh filter cloth, 350 mesh filter screen, 350 mesh screen and so on.
The wire diameters suitable for the production 350X350 mesh ultra fine stainless steel woven wire mesh is 0.03 mm. The following are detailed data about this product:
| Mesh |
Construction Type |
Wire Diameter (mm) |
Width of Opening (mm) |
% of Open Area |
Weight (kgs/m2) |
| 350X350 | Woven | 0.03 | 0.04 | 34.41% | 0.16 |
The widths of 350 mesh : 3F, 1 meter, 1.2 meters, 1.5meters, 1.8 meters, and 2 meters.
The length of each roll is usually 30 meters and 100F.
We can customize special sizes according to your requirements.
Features:
• 400 wires per inch
• DFAR material
• Material can easily bend by hand and cut with scissors and laser
• Commonly used for laboratories and filters
• This market grade mesh is woven from a standard wire diameter which is heavier than the wire used to weave bolting cloth
• Meets ASTM E 2016-15 and UNS S30400
Unlike other metals, stainless steel wire mesh is uniquely equipped to resist rust and abrasion. Stainless steel wire mesh contains chromium and nickel in addition to steel, increasing corrosion resistance. It's also extremely durable, as well as heat and cold resistant. Keep in mind stainless steel is non-magnetic in the annealed condition. After stainless steel wire mesh has been woven, it may become slightly magnetic due to cold working.
We can produce 350 mesh ultra fine stainless steel woven wire mesh with stainless steel wire material in SUS/AISI 316, 316L ,MONEL ,321 etc.The relatively more used materials is 316.
| T316 Stainless Steel-Standard Chemical Composition | |||||||
| Maximum Carbon (C) | Maximum Manganese (Mn) | Maximum Phosphorus (P) | Maximum Sulphur (S) | Maximum Silicon (Si) | Chromium (Cr) | Nickel (N) | Mo |
| 0.08 Max |
2.0 %
|
0.045 %
|
0.03 %
|
1.00 %
|
16.00 to 18.00 % |
10.00 to 14 % |
2.0 to 3.0 % |
|
T-316 is a special stainless alloy, which contains 18 percent chromium and 10 percent nickel, as well as 2 percent molybdenum. This combination enables the mesh to resist corrosion from salts, acids, and seawater.
T-316 melts at 2500 degrees F (1375 C), but its maximum recommended temperature for continuous service is 1500 degrees F. (815 C) and is useful for intermediate service up to 1650 degrees F (900 C). Its uses include processing oils and foods, chemicals, and pharmaceuticals.
T-316 stainless steel is heat resistant and has good oxidation resist resistance to a temperature of approximately 1600oF in intermittent service and to a temperature of 1700oF in continuous service. |
|||||||
T-316 stainless steel wire mesh is often used and found in applications and industries highlighted below:
Marine technologies Pharmaceuticals Chemical processing
Food preparation & processing Rubber, plastic machinery Boat & yacht fittings
Scientific & laboratory use Automotive Refinery & oil field
Aerospace Particle separation General industrial use
350 mesh ultra fine stainless steel woven wire cloth are widely used in the chemical industry for oil and gas separation, precision screening and filtration, battery manufacturing, aerospace, etc. due to its precise filtration characteristics.
We can cut stainless steel wire mesh into different shapes and sizes according to your needs, such as rectangular mesh, square mesh, round and oval mesh. It can also be processed into other shapes of filters.
Stainless steel wire mesh packaging: Generally, it is packaged in kraft paper, wrapped with waterproof plastic sheet, and then packed into a fumigation-free wooden box.
