Dutch Weave Stainless Steel Wire Cloth 400x2800 Mesh 1 Micron Filter Fabric
Product Details:
| Place of Origin: | China |
| Brand Name: | FUHANG |
| Certification: | ISO9001 |
| Model Number: | 400x2800 Mesh |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Square Meter |
|---|---|
| Price: | 1-30 Square Meter $2/Square Meter >30 Square Meters $1/Square Meter |
| Delivery Time: | 5-8 work days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 50000 square meter /15 Days |
|
Detail Information |
|||
| Product Name: | 400x2800 Mesh Dutch Weave Micronic Filter Cloth | Application: | Woven Wire Mesh |
|---|---|---|---|
| Weave Style: | Dutch/Plain/Twill Weave | Type: | Weave Wire Mesh |
| Technique: | Woven | Material: | Stainless Steel Wire 316 |
| Width: | Usually1M | Usage: | Filter |
| Length: | 1-30m | Feature: | Acid-resisting,Anti-corrosion,alkali-resisting Etc |
| Color: | Silver | Advantage: | Factory Direct Sale |
| Sample: | Free | Packing: | Paper Tube Inside+ Wodden Box +plastic Bag + |
| High Light: | Dutch Weave Stainless Steel Wire Cloth,400x2800 Mesh Stainless Steel Wire Cloth,1 Micron Filter Fabric |
||
Product Description

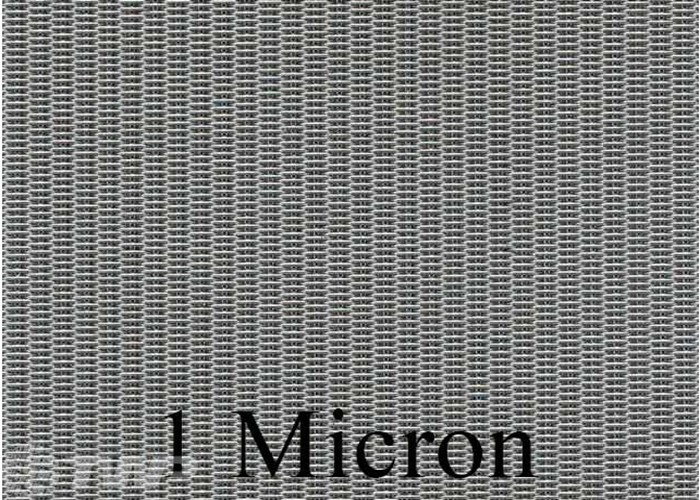

T316 400x2800 Mesh Dutch Weave 1 Micron Filter Cloth
Our Dutch Weave Wire Cloth Offer Strength and Rigidity Along With Fine Filtration Capabilities.
Dutch Woven Wire Cloth is made with a combination of big weft wires and small warp wires, this enables a strong wire cloth with super fine filtration.Dutch weave stainless steel wire cloth is commonly used as industry filter media, offer strength and rigidity along with fine filtration capabilities.
Our Dutch weaving filter cloth is available in various meshes and weaves, including plain Dutch weave, twilled Dutch weave, and reverse Dutch weave. They are available in either 300 series stainless steels, specialized stainless steels and Nickel based Alloys.
Mesh with a Dutch weave is woven to a precise tolerance for a much denser finished material with small, curved tunnel-shaped openings. Light does not pass through Dutch-woven micronic filter mesh. Thick and sturdy Dutch weaves are typically used for hydraulic fluid filters, gas diffusers, vacuum filters, pressure liquid filters, and breather vents.
Dutch weave is divided into plain Dutch weave and twill Dutch weave. 400x2800 Mesh uses twill Dutch weave.
| U.S. | Metric | |
| MESH SIZE | 400x2800 per in | 400x2800 per 2.54 cm |
| WIRE DIAMETER | 0.0012x0.0008 in | 0.03048x0.02032 mm |
| OPENING | 0 in | 0 mm |
| OPENING MICRONS | 1 | 1 |
| POROSITY | 0 | 0 |
| OVERALL THICKNESS | 0.0030 in | 0.0762 mm |
| WEIGHT/SQUARE FOOT | 0.1000 lb | 0.0454 kg |
Features
1 micron precision woven stainless steel screen
Used in separation, fuel filters, gas diffusers and vents
Light tight mesh
Flow Data is available
Meets ASTM E2814-18
Stainless Steel 316
