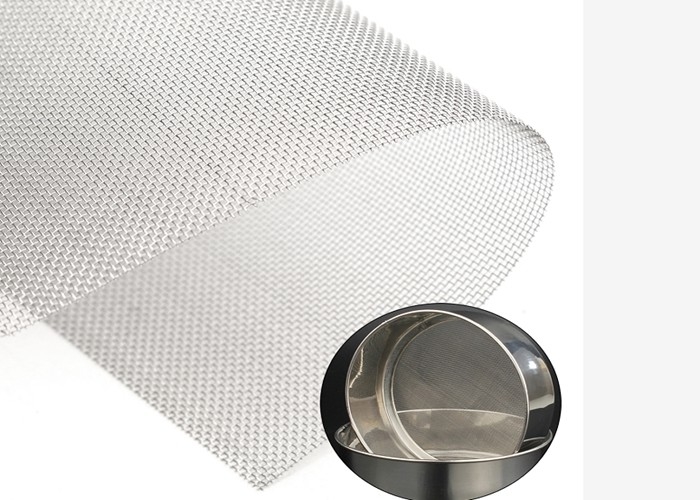

0.04mm Ultra Fine Stainless Steel Woven Wire Mesh Roll 300X300 Mesh

0.04mm Ultra Fine Stainless Steel Woven Wire Mesh Roll 300X300 Mesh

Product Details:

Place of Origin: China
Brand Name: FUHANG
Certification: ISO9001
Model Number: 300X300Mesh

Payment & Shipping Terms:

Minimum Order Quantity: 1 Square Meter
Price: 1-30 Square Meter $5/Square Meter >30 Square Meters $3/Square Meter
Packaging Details: paper tube inside+ wodden box +plastic bag
Delivery Time: 5-8 work days
Payment Terms: L/C, T/T
Supply Ability: 50000 square meter /30 Days
Get Best Price Contact Now

Detail Information

Product Name: SS304/316 1M X100F 300 Mesh Ultra Fine Stainless Steel Wire Mesh Application: Woven Wire Mesh
Weave Style: Plain Weave Type: Wire Cloth
Technique: Woven Material: 304,316,Monel 400
Width: 0.5m-3m Or Customized Usage: Oil,filter
Feature: Acid-resisting,Anti-corrosion Hole Shape: Square Hole
Mesh Count: 300 Mesh Sample: Free
High Light:

Stainless Steel Woven Wire Mesh Roll

,

0.04mm Stainless Steel Woven Wire Mesh

,

300X300 Ultra Fine Stainless Steel Mesh

Product Description

  SS304 /316 1M X100F 300 Mesh Ultra Fine Stainless Steel Woven Wire Mesh For Filter and sieving







   Stainless steel wire mesh with its excellent resistance against acid, alkali, heat and corrosion, find extensively uses in processing of oil, chemical, food, making wire mesh filter, also sorting and screening of solid, liquid and gas in mine, metallurgy, airspace and machine making etc.



   Our company manufactures and supplies stainless steel wire mesh products to meet and exceed our client’s specific requirements, reducing costs while increasing production efficiency. We have a full range of 304 and 316 stainless steel woven mesh products available for immediate shipping and we can supply our clients with extra wide wire cloth products of up to 240″ wide and extra-long rolls of up to 2000″. Hightop’s wire mesh products comply with the ASTM E2016, ASTM E2814 and ISO 9044 as our minimum standard.



    300 mesh stainless steel wire mesh is a square weave mesh, which is 300 meshes in one inch / 25.4mm length and can be used as a sieve, a filter, a printing net.The company produces 300 mesh stainless steel wire mesh mesh uniform, net formation, clean oil-free, the same color.



   The wire diameters suitable for the production 300X300 mesh ultra fine stainless steel woven wire mesh is 0.04 mm. The following are detailed data about this product:



Mesh

Construction

Type

Wire Diameter

(mm)

Width of

Opening

(mm)

% of

Open Area

Weight

(kgs/m2)

300X300 Woven 0.04 0.045 28.03% 0.24



   The width we often produce are 3F, 1 meter, 1.2 meters, 1.5meters, 1.8 meters, and 2 meters, 2.2meters, 2.5meters, 3meters. The length of each roll is usually 30 meters and 100F. We can customize special sizes according to your requirements.



300 mesh stainless steel wire mesh Features:

1. Acid, alkali, corrosion resistance and good performance;
2. High strength, tensile strength, toughness and wear resistance, durable;
3. High temperature oxidation, 304 stainless steel nominal temperature of 800 degrees Celsius; 316L stainless steel temperature limit in 1575 degrees:
4. Room temperature processing, that is easy plastic processing, stainless steel wire mesh to use the possibility of persification;
5. High finish, no surface treatment, easy maintenance.



   We can produce stainless steel wire mesh with stainless steel wire material in SUS/AISI 304,304L,310, 310S, 316, 316L ,MONEL ,321 etc.The relatively more used materials are 304 and 316.



   Unlike other metals, stainless steel wire mesh is uniquely equipped to resist rust and abrasion. Stainless steel wire mesh contains chromium and nickel in addition to steel, increasing corrosion resistance. It's also extremely durable, as well as heat and cold resistant. Keep in mind stainless steel is non-magnetic in the annealed condition. After stainless steel wire mesh has been woven, it may become slightly magnetic due to cold working.



 Stainless steel wire mesh is available in two basic types of metal alloys:



T304 Stainless Steel-Standard Chemical Composition
Maximum Carbon (C) Maximum Manganese (Mn) Maximum Phosphorus (P) Maximum Sulphur (S) Maximum Silicon (Si) Chromium (Cr) Nickel (N)

Maximum Nitrogen

(N)

0.08 %



2.0 %



0.045 %



0.03 %



1.00 %



18.00 to

20.00 %

8.00 to

10.50 %

0.10 %

   T-304is the basic stainless alloy, containing 18 percent chromium and 8 percent nickel. It's not as corrosion resistant as T-316, but it's acceptable (and more affordable) for most uses, unless otherwise specified.



   Although it melts at 2,600 degrees F (1430 degrees C), it’s best for use at 1450 degrees F (790 degrees C) for continuous service and 1650 degrees F (900 C) for intermediate service. Its uses include sorting and screening of abrasives, liquids, powders and other solids.





T316 Stainless Steel-Standard Chemical Composition
Maximum Carbon (C) Maximum Manganese (Mn) Maximum Phosphorus (P) Maximum Sulphur (S) Maximum Silicon (Si) Chromium (Cr) Nickel (N) Mo
0.08 Max

2.0 %



0.045 %



0.03 %



1.00 %



16.00 to

18.00 %

10.00 to

14 %

2.0 to

3.0 %

   T-316 is a special stainless alloy, which contains 18 percent chromium and 10 percent nickel, as well as 2 percent molybdenum. This combination enables the mesh to resist corrosion from salts, acids, and seawater.



   T-316 melts at 2500 degrees F (1375 C), but its maximum recommended temperature for continuous service is 1500 degrees F. (815 C) and is useful for intermediate service up to 1650 degrees F (900 C). Its uses include processing oils and foods, chemicals, and pharmaceuticals.



   T-316 stainless steel is heat resistant and has good oxidation resist resistance to a temperature of approximately 1600oF in intermittent service and to a temperature of 1700oF in continuous service.



While T-304 stainless steel wire mesh is generally more popular and more readily available in a wide array of specifications, T-316 stainless steel wire mesh is often used and found in applications and industries highlighted below:



Marine technologies Pharmaceuticals Chemical processing

Food preparation & processing Rubber, plastic machinery Boat & yacht fittings

Scientific & laboratory use Automotive Refinery & oil field

Aerospace Particle separation General industrial use



In addition, our 300mesh ultra fine stainless steel woven wire mesh produced with Monel 400® stainless steel wire is also favored by many customers.Monel 400® wire mesh is known for its exceptional strength and resistance. It is made primarily from nickel and copper alloys and holds up under high temperatures. This high-performance mesh is typically used in marine, chemical, power generation, and aerospace environments, but it is suitable for various applications including commercial cooking, filtration, heating, boiling, dyeing, refining, demistering, and desalination. In addition, it can be easily welded, which adds to the versatility of the material.



We can cut stainless steel wire mesh into different shapes and sizes according to your needs, such as rectangular mesh, square mesh, round and oval mesh. It can also be processed into other shapes of filters.

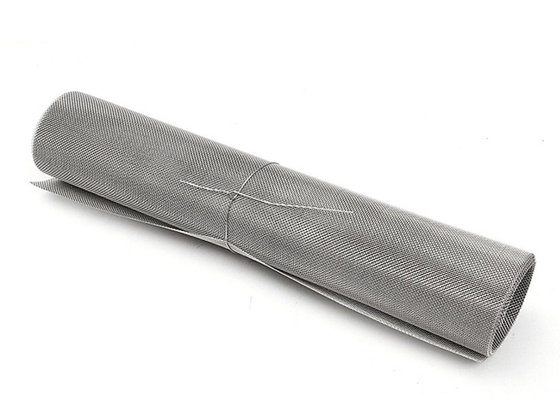

0.04mm Ultra Fine Stainless Steel Woven Wire Mesh Roll 300X300 Mesh 00.04mm Ultra Fine Stainless Steel Woven Wire Mesh Roll 300X300 Mesh 1



300 mesh stainless steel wire mesh Packing: paper tube, outsourcing moisture-proof paper, plastic film, woven bag.
