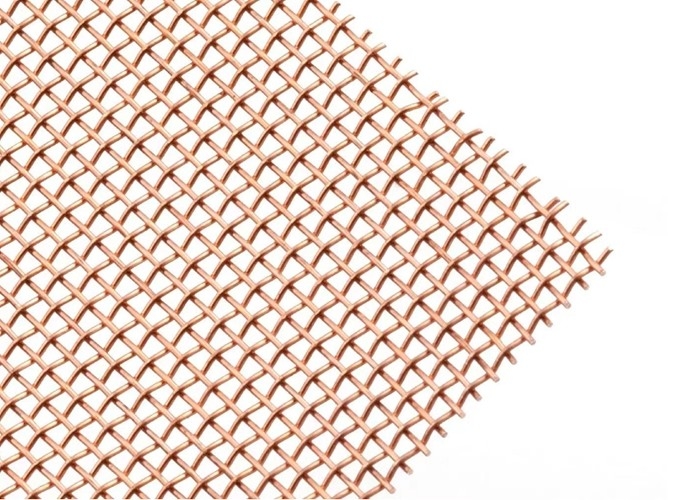

Non Magnetic Copper Wire Mesh Sheets / Copper Netting Mesh 0.05mm Diameter
Product Details:
| Place of Origin: | China |
| Brand Name: | FUHANG |
| Certification: | ISO9001 |
| Model Number: | cooper wire mesh |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 square meter |
|---|---|
| Price: | USD $0.5-$5 Square Meter |
| Packaging Details: | paper tube inside+ wodden box +plastic bag |
| Delivery Time: | 5-8 days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 1000000 PIECE Per Month |
|
Detail Information |
|||
| Application: | Filter,Screen,farady Cage Emf Electronic Shielding | Material: | Copper Wire |
|---|---|---|---|
| Type: | Woven,Weave Wire Mesh | Width: | 0.6-1.3m |
| Feature: | Nonmagnetic,Corrosion Resisting,good Ductility And,Strength | Wire Diameter: | 0.05-2.03mm |
| Color: | Red Copper Color,Copper | Product Name: | High Quality 80 Mesh 200 Micron Red Copper Wire Mesh |
| Length: | 15-100m/roll | Mesh Size: | 1x30m / Roll |
| Hole Shape: | Square | Usage: | Faraday Cage Screen Emf Shielding,Liquid Filter,Filtration,Distillation |
| Weave Style: | Plain Twill Dutch Weave | Sample: | Free |
| High Light: | non magnetic copper wire mesh sheets,0.05mm diameter copper wire mesh sheets,non magnetic copper netting mesh |
||
Product Description
Copper Wire Mesh Sheets Copper Netting Mesh Copper Mesh Shielding Copper Wire Screen Pure Copper Mesh
The primary usages of copper in wire cloth are in those applications requiring corrosion resistance, electrical and thermal conductivity, spark resistance and non-magnetic properties.
Copper Wire Mesh finds wide usage in traveling water screens, radio frequency interference shielding, sugar processing, and marine applications.
Skilled workers weave this copper screening in a plain(or other weaves like Twilled and Dutch) weave over-under pattern on modern mechanical looms. Our copper wire is over 99% pure.
Basic info
Woven Type: Plain Weave and Twill Weave
Mesh: 2-325 mesh, To accurately
Wire Dia.: 0.035 mm-2 mm, small deviation
Width: 190mm, 915mm, 1000mm, 1245mm to 1550mm
Length: 30m, 30.5m or cut to length minimum 2m
Hole shape: Square Hole
Wire Material: Copper Wire
Mesh Surface: clean, smooth, small magnetic.
Packing: Water-Proof, Plastic Paper, Wooden Case, Pallet
Min.Order Quantity: 30 SQM
Delivery Detail: 3-10 days
Sample: Free Charge
| Mesh | Wire Dia (inches) | Wire Dia (mm) | Openging (inches) |
| 2 | 0.063 | 1.6 | 0.437 |
| 2 | 0.08 | 2.03 | 0.42 |
| 4 | 0.047 | 1.19 | 0.203 |
| 6 | 0.035 | 0.89 | 0.131 |
| 8 | 0.028 | 0.71 | 0.097 |
| 10 | 0.025 | 0.64 | 0.075 |
| 12 | 0.023 | 0.584 | 0.06 |
| 14 | 0.02 | 0.508 | 0.051 |
| 16 | 0.018 | 0.457 | 0.0445 |
| 18 | 0.017 | 0.432 | 0.0386 |
| 20 | 0.016 | 0.406 | 0.034 |
| 24 | 0.014 | 0.356 | 0.0277 |
| 30 | 0.013 | 0.33 | 0.0203 |
| 40 | 0.01 | 0.254 | 0.015 |
| 50 | 0.009 | 0.229 | 0.011 |
| 60 | 0.0075 | 0.191 | 0.0092 |
| 80 | 0.0055 | 0.14 | 0.007 |
| 100 | 0.0045 | 0.114 | 0.0055 |
| 120 | 0.0036 | 0.091 | 0.0047 |
| 140 | 0.0027 | 0.068 | 0.0044 |
| 150 | 0.0024 | 0.061 | 0.0042 |
| 160 | 0.0024 | 0.061 | 0.0038 |
| 180 | 0.0023 | 0.058 | 0.0032 |
| 200 | 0.0021 | 0.053 | 0.0029 |
| 250 | 0.0019 | 0.04 | 0.0026 |
| 325 | 0.0014 | 0.035 | 0.0016 |
