• Woven Red Copper Wire Mesh Cloth Square Hole Size Customized
  • Woven Red Copper Wire Mesh Cloth Square Hole Size Customized
Woven Red Copper Wire Mesh Cloth Square Hole Size Customized

Woven Red Copper Wire Mesh Cloth Square Hole Size Customized

Product Details:

Place of Origin: China
Brand Name: FUHANG
Certification: ISO9001

Payment & Shipping Terms:

Minimum Order Quantity: 1 Square Meter
Price: 1-30 Square Meter $5/Square Meter >30 Square Meters $3/Square Meter
Delivery Time: 5-8 work days
Payment Terms: L/C, T/T
Supply Ability: 50000 square meter /30 Days
Get Best Price Contact Now

Detail Information
Application: Farady Cage Emf Electronic Shielding Material: Copper Wire
Type: Woven Color: Red Copper Color
Product Name: Fine Copper Mesh Fabric Length: 1-30m Or Customized
Hole Shape: Square Sample: Free , Available
Technique: Woven Name: 0.1mm 0.12mm 0.15mm Wire Knitted Copper Mesh For Distillation
High Light:

Woven Copper Wire Mesh

,

Red Copper Wire Mesh

,

Square Hole Copper Mesh Cloth

Product Description

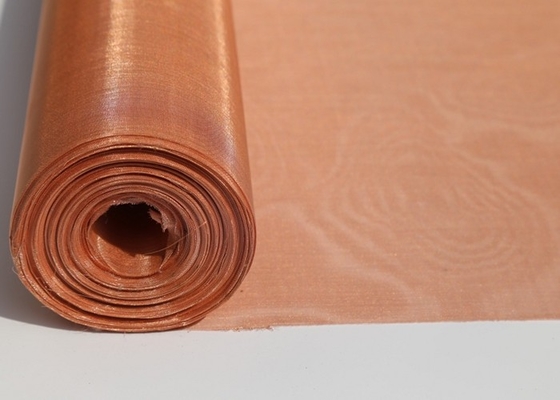

   Fine Copper Mesh Screen Copper Mesh Cloth Copper Woven Mesh



  Fine copper wire mesh is designed with openings ranging from 0.001 inch to 0.005 inch (0.030 mm to 0.122 mm). This metal fabric is totally made by 100% copper.Fine Copper wire mesh is pliable, malleable, and has high thermal and electrical conductivity. These characteristics make it popular to use in: RFI shielding, Faraday Cages, HVAC as well as numerous electrical based applications.



Woven Red Copper Wire Mesh Cloth Square Hole Size Customized 0

   Micro aperture allows its many applications as screens and sieves. For example, fine copper wire mesh can be used as locomotive engine compartments for ventilation. Softness and flexibility makes it very easy to operate in producing handcrafts or artworks.Fine Copper wire mesh is able to easily bend, but still maintain its strength. It is quite easy to any shapes with common knife or scissors.



   Fine Copper mesh is a yellowish red color when first woven and will gradually patina (discolor) to a greenish/bluish called verdigris. Faraday cages often choose fine copper mesh as its material. The meshes are grounded to dissipate any electric currents generated by the external electromagnetic fields.

Woven Red Copper Wire Mesh Cloth Square Hole Size Customized 1

Dimensions

  • Mateiral: copper wire
  • Mesh size: 60–300 mesh.
  • Roll width: 40``, 48``,60`` and customized sizes.
  • Roll length: 100Feet and customized lengths.
  • Customized specifications on large quantity order are also available.
Fuhang Company Available Sizes of Fine Copper Mesh
Item mesh/inch Wire Diameter Opening Weight
    mm inch mm inch Kg/m2
CM-01 60 0.122 0.005 0.3 0.012 0.482
CM-02 60 0.160 0.006 0.26 0.01 0.829
CM-03 60 0.190 0.007 0.23 0.009 1.170
CM-04 64 0.100 0.004 0.30 0.012 0.346
CM-05 66.8 0.080 0.003 0.30 0.012 0.231
CM-06 70 0.120 0.005 0.24 0.01 0.544
CM-07 80 0.120 0.005 0.2 0.008 0.622
CM-08 80 0.130 0.005 0.19 0.007 0.730
CM-09 80 0.140 0.006 0.18 0.007 0.847
CM-10 90 0.110 0.004 0.17 0.007 0.588
CM-11 100 0.035 0.001 0.22 0.009 0.066
CM-12 100 0.050 0.002 0.20 0.008 0.135
CM-13 100 0.055 0.002 0.20 0.008 0.163
CM-14 100 0.100 0.004 0.15 0.006 0.540
CM-15 100 0.110 0.004 0.14 0.006 0.653
CM-16 104 0.060 0.002 0.18 0.007 0.202
CM-17 120 0.090 0.004 0.12 0.005 0.525
CM-18 120 0.058 0.002 0.15 0.006 0.218
CM-19 120 0.080 0.003 0.13 0.005 0.415
CM-20 140 0.070 0.003 0.11 0.004 0.370
CM-21 145 0.045 0.002 0.13 0.005 0.159
CM-22 145 0.060 0.002 0.12 0.005 0.282
CM-23 150 0.060 0.002 0.11 0.004 0.292
CM-24 150 0.050 0.002 0.12 0.005 0.203
CM-25 160 0.050 0.002 0.11 0.004 0.216
CM-26 160 0.040 0.002 0.12 0.005 0.138
CM-27 160 0.035 0.001 0.12 0.005 0.106
CM-28 165 0.050 0.002 0.1 0.004 0.223
CM-29 180 0.050 0.002 0.09 0.004 0.243
CM-30 180 0.040 0.002 0.1 0.004 0.156
CM-31 200 0.053 0.002 0.07 0.003 0.303
CM-32 200 0.050 0.002 0.08 0.003 0.270
CM-33 200 0.040 0.002 0.09 0.003 0.173
CM-34 220 0.050 0.002 0.07 0.003 0.297
CMF35 230 0.035 0.001 0.08 0.003 0.152
CM-36 230 0.030 0.001 0.08 0.003 0.112
CM-37 250 0.040 0.002 0.06 0.002 0.216
CM-38 250 0.035 0.001 0.07 0.003 0.165
CM-39 250 0.030 0.001 0.07 0.003 0.122
CM-40 270 0.035 0.001 0.06 0.002 0.179
CM-41 270 0.030 0.001 0.06 0.003 0.131
CM-42 280 0.035 0.001 0.06 0.002 0.185
CM-43 300 0.030 0.001 0.05 0.002 0.146



Advantages

  • Beautiful and attractive surface.
  • Excellent EMI/RFI/EMC shielding performance.
  • Excellent electical conductivity.
  • Non-magnetic.

Applications

  • EMI/RFI/EMC shielding mesh
  • Faraday cage
  • MRI shielding mesh
