1-200 Mesh Woven Copper Mesh , 30m Length FH-002 Copper Wire Cloth
Product Details:
| Place of Origin: | Anping, China |
| Brand Name: | Fuhang |
| Certification: | ISO9001 |
| Model Number: | FH-002 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 50Sets |
|---|---|
| Price: | by inquiry |
| Packaging Details: | Packing with Water-Proof Paper Inside |
| Delivery Time: | within 15 days |
| Payment Terms: | L/C, T/T, , D/A, D/P, Western Union, MoneyGram |
| Supply Ability: | 2000 Sets/15 Days |
|
Detail Information |
|||
| Product Name: | Copper Wire Mesh | Wire Mesh Width: | 0.6-1.3m |
|---|---|---|---|
| Nickels: | 0% | Width: | 1m Or Cut Belt |
| Sample: | Free Samples | Specification: | 50mesh X 0.16mm X 1x30m |
| Technique: | Woven | Length: | 30m Or According To Your Request |
| Usage: | Separation And Sifting | Transport Package: | Packing With Water-Proof Paper Inside |
| High Light: | 200 Mesh Woven Copper Mesh,30m Copper Wire Cloth,FH-002 Copper Wire Cloth |
||
Product Description
Special Lightning Resistant Conductive Copper Wire Mesh For Wind Turbine Blades

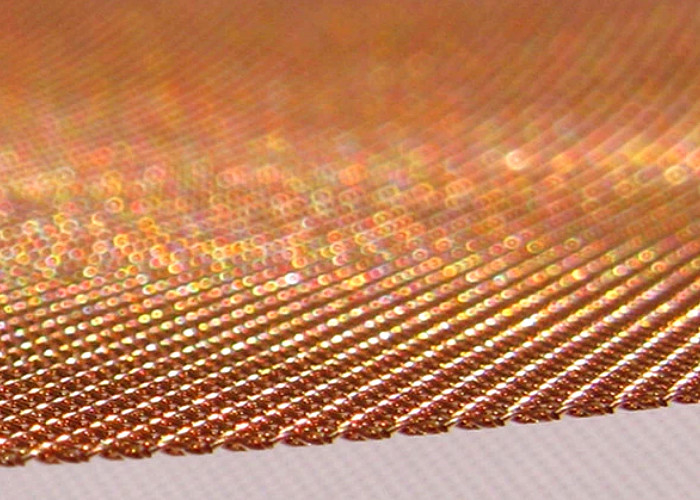

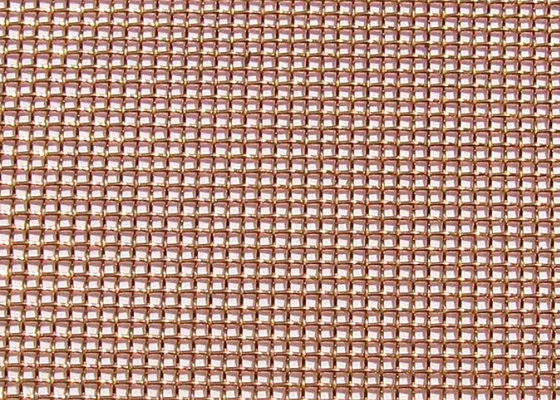

Woven copper mesh is similar to a cloth with wire threads woven at right angles. Our plain weave copper cloth is flimsy and easy to cut by common scissors. It has an unpolished surface. Confirming to ASTM E2016-06.
Apart from high conductivity, nonmagnetic feature and corrosive resistance, copper cloth is also easy to be welded to form a rigid sheet with uniform opening size. With opening size from 0.006 inch to 0.075inch, copper cloth is very usable as a strainer or a sieve.
Copper Wire Mesh Specifications
Material
brass wire--purity--Cu: 65% , Zn:35%
red copper wire--purity--Cu:99.8%
phoshpor bronze wire--purity--Cu:85%-90% , Sn:5%-15%
Optional range
Mesh count:1-200 mesh
Wire diameter:0.05mm-2.03mm
Common roll size:1*30m
Other size:1.2*30m,1.5*30m,2m*30m etc
| Mesh | Wire Dia. (MM) | Opening(mm) | ||
| SWG | mm | inch | ||
| 6mesh | 22 | 0.711 | 0.028 | 3.522 |
| 8mesh | 23 | 0.610 | 0.024 | 2.565 |
| 10mesh | 25 | 0.508 | 0.020 | 2.032 |
| 12mesh | 26 | 0.457 | 0.018 | 1.660 |
| 14mesh | 27 | 0.417 | 0.016 | 1.397 |
| 16mesh | 29 | 0.345 | 0.014 | 1.243 |
| 18mesh | 30 | 0.315 | 0.012 | 1.096 |
| 20mesh | 30 | 0.315 | 0.0124 | 0.955 |
| 22mesh | 30 | 0.315 | 0.0124 | 0.840 |
| 24mesh | 30 | 0.315 | 0.0124 | 0.743 |
| 26mesh | 31 | 0.295 | 0.0116 | 0.682 |
| 28mesh | 31 | 0.295 | 0.0116 | 0.612 |
| 30mesh | 32 | 0.247 | 0.011 | 0.573 |
| 32mesh | 33 | 0.254 | 0.010 | 0.540 |
| 34mesh | 34 | 0.234 | 0.0092 | 0.513 |
| 36mesh | 34 | 0.234 | 0.0092 | 0.472 |
| 38mesh | 35 | 0.213 | 0.0084 | 0.455 |
| 40mesh | 36 | 0.193 | 0.0076 | 0.442 |
| 42mesh | 36 | 0.193 | 0.0076 | 0.412 |
| 44mesh | 37 | 0.173 | 0.0068 | 0.404 |
| 46mesh | 37 | 0.173 | 0.0068 | 0.379 |
| 48mesh | 37 | 0.173 | 0.0068 | 0.356 |
| 50mesh | 37 | 0.173 | 0.0068 | 0.335 |
| 60X50mesh | 36 | 0.193 | 0.0076 | - |
| 60X50mesh | 37 | 0.173 | 0.0068 | - |
| 60mesh | 37 | 0.173 | 0.0068 | 0.250 |
| 70mesh | 39 | 0.132 | 0.0052 | 0.231 |
| 80mesh | 40 | 0.122 | 0.0048 | 0.196 |
| 90mesh | 41 | 0.112 | 0.0044 | 0.170 |
| 100mesh | 42 | 0.012 | 0.004 | 0.152 |
| 120X108mesh | 43 | 0.091 | 0.0036 | - |
| 120mesh | 44 | 0.081 | 0.0032 | 0.131 |
| 140mesh | 46 | 0.061 | 0.0024 | 0.120 |
| 150mesh | 46 | 0.061 | 0.0024 | 0.108 |
| 160mesh | 46 | 0.061 | 0.0024 | 0.098 |
| 180mesh | 47 | 0.051 | 0.002 | 0.090 |
| 200mesh | 47 | 0.051 | 0.002 | 0.076 |
Copper Wire Mesh Application
RFI/EMI/RF Shielding
Electronic information security
Faraday Cages
Power generation
Insect Screens
Outer space exploration and research
Fireplace Screen
Electronic security
Feature
non-magnetic, wear resistance
acid and alkali resistance, good ductility
good conductivity, good heat transfer performance
FuHang production copper wire mesh has the following advantages:
the bronze copper content of 99.99%, 99.97%, 99.95%, thermal conductivity, electrical conductivity, thermal resistance, electronic products, shielding, laminated glass, battery private networks (VPNS), pure copper wire mesh, copper alloy, copper and iron wire mesh, copper nickel alloy mesh, copper chromium alloy, copper, alloy net and other special materials production and processing.
Our Services:
If have stocks, the shipping within 3 days.
Why Choose Us ?
1 Rich experience production team
Our company was established in 2009 and it has 5000 m2 production workshop, Hundreds of skille technicians, Dozens of production and processing lines. We have many years of experience in the wi mesh field
2 Professional quality inspection system
We have a strict quality inspection system and a professional testing team, we guarantee product quality
3 Perfect service system
- 24 hours on-line service
- Free samples if stocked
- Quality problem we could accept the products returm
- Competitive price with superior higher quality products
- Professional team to solve all your questions
Packing detail :
Inside the roll with paper tube to reduce the pressure while loading, then wrapped with plastic flm as well
as woven bag on the finished roll, final loaded in the strong wooden box.
