• Copper Wire Netting Mesh 0.711mm 0.610mm Wire Dia. 6 Mesh
  • Copper Wire Netting Mesh 0.711mm 0.610mm Wire Dia. 6 Mesh
  • Copper Wire Netting Mesh 0.711mm 0.610mm Wire Dia. 6 Mesh
Copper Wire Netting Mesh 0.711mm 0.610mm Wire Dia. 6 Mesh

Copper Wire Netting Mesh 0.711mm 0.610mm Wire Dia. 6 Mesh

Product Details:

Place of Origin: Anping, China
Brand Name: Fuhang
Certification: ISO9001
Model Number: FH-002

Payment & Shipping Terms:

Minimum Order Quantity: 1 Square Meter
Price: by inquiry
Packaging Details: Packing with Water-Proof Paper Inside
Delivery Time: within 15 days
Payment Terms: L/C, T/T, , D/A, D/P, Western Union, MoneyGram
Supply Ability: 5000 square meter /15 Days
Get Best Price Contact Now

Detail Information
Product Name: Copper Wire Mesh Wire Mesh Width: 0.6-1.3m
Nickels: 0% Width: 1m Or Cut Belt
Sample: Free Samples Specification: 5mesh X 1.0mm X 1x30m
Length: 30m Or According To Your Request Usage: Separation And Sifting
Technique: Woven Transport Package: Packing With Water-Proof Paper Inside
High Light:

0.711mm Copper Netting Mesh

,

6 Mesh Copper Wire Netting

,

0.610mm Copper Wire Netting

Product Description

Woven Copper Mesh Copper Netting Mesh Copper Wire Netting

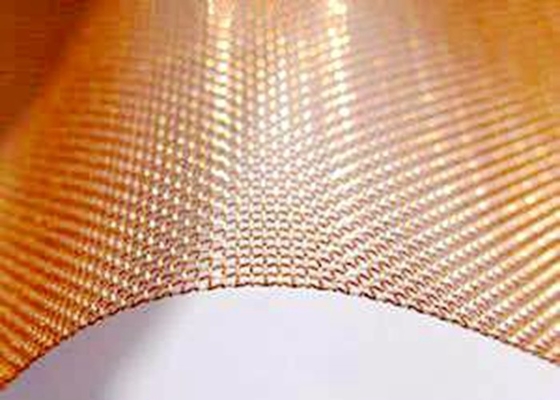

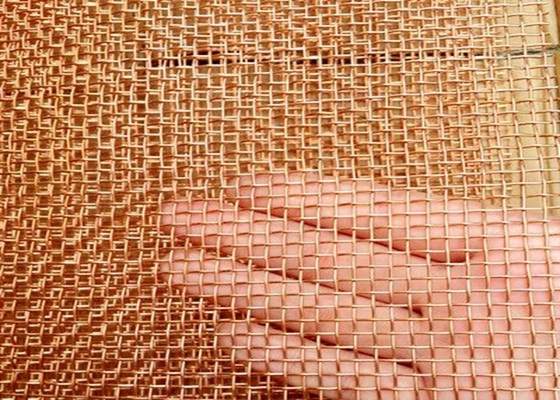

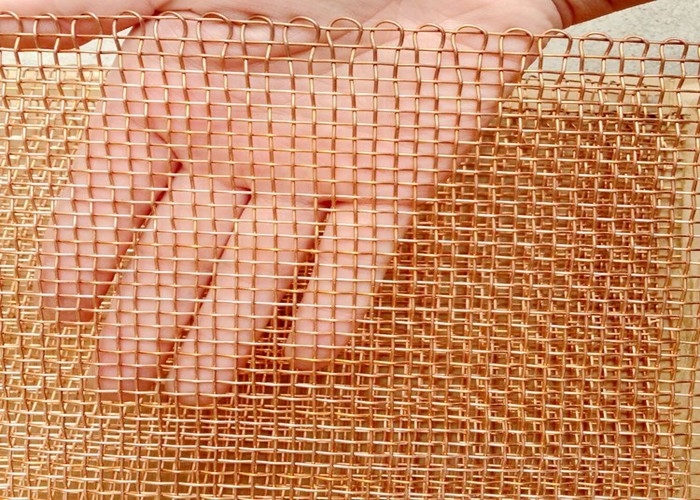

  Woven copper mesh is similar to a cloth with wire threads woven at right angles. Our plain weave copper cloth is flimsy and easy to cut by common scissors. It has an unpolished surface. Confirming to ASTM E2016-06.

   Apart from high conductivity, nonmagnetic feature and corrosive resistance, copper cloth is also easy to be welded to form a rigid sheet with uniform opening size. With opening size from 0.006 inch to 0.075inch, copper cloth is very usable as a strainer or a sieve.

   In addition, copper mesh owns special red-orange metallic luster and can be made to a great number of handicrafts or artworks.



Copper Wire Mesh Specifications



Copper Wire Netting Mesh 0.711mm 0.610mm Wire Dia. 6 Mesh 0Copper Wire Netting Mesh 0.711mm 0.610mm Wire Dia. 6 Mesh 1Copper Wire Netting Mesh 0.711mm 0.610mm Wire Dia. 6 Mesh 2

Material

brass wire--purity--Cu: 65% , Zn:35%

red copper wire--purity--Cu:99.8%

phoshpor bronze wire--purity--Cu:85%-90% , Sn:5%-15%



Optional range

Mesh count:1-200 mesh

Wire diameter:0.05mm-2.03mm

Common roll size:1*30m

Other size:1.2*30m,1.5*30m,2m*30m etc



Mesh Wire Dia. (MM) Opening(mm)
SWG mm inch
6mesh 22 0.711 0.028 3.522
8mesh 23 0.610 0.024 2.565
10mesh 25 0.508 0.020 2.032
12mesh 26 0.457 0.018 1.660
14mesh 27 0.417 0.016 1.397
16mesh 29 0.345 0.014 1.243
18mesh 30 0.315 0.012 1.096
20mesh 30 0.315 0.0124 0.955
22mesh 30 0.315 0.0124 0.840
24mesh 30 0.315 0.0124 0.743
26mesh 31 0.295 0.0116 0.682
28mesh 31 0.295 0.0116 0.612
30mesh 32 0.247 0.011 0.573
32mesh 33 0.254 0.010 0.540
34mesh 34 0.234 0.0092 0.513
36mesh 34 0.234 0.0092 0.472
38mesh 35 0.213 0.0084 0.455
40mesh 36 0.193 0.0076 0.442
42mesh 36 0.193 0.0076 0.412
44mesh 37 0.173 0.0068 0.404
46mesh 37 0.173 0.0068 0.379
48mesh 37 0.173 0.0068 0.356
50mesh 37 0.173 0.0068 0.335
60X50mesh 36 0.193 0.0076 -
60X50mesh 37 0.173 0.0068 -
60mesh 37 0.173 0.0068 0.250
70mesh 39 0.132 0.0052 0.231
80mesh 40 0.122 0.0048 0.196
90mesh 41 0.112 0.0044 0.170
100mesh 42 0.012 0.004 0.152
120X108mesh 43 0.091 0.0036 -
120mesh 44 0.081 0.0032 0.131
140mesh 46 0.061 0.0024 0.120
150mesh 46 0.061 0.0024 0.108
160mesh 46 0.061 0.0024 0.098
180mesh 47 0.051 0.002 0.090
200mesh 47 0.051 0.002 0.076

Copper Wire Mesh Application

The reduction or exclusion of Electro-magnetic interference is dependent upon the signal amplitude and frequency in relation to the many combinations of mesh count, wire diameter and weaving materials available.



Copper Wire Netting Mesh 0.711mm 0.610mm Wire Dia. 6 Mesh 3

Feature

non-magnetic, wear resistance

acid and alkali resistance, good ductility

good conductivity, good heat transfer performance

Good electrical conductivity, electrol beam filtration,
Acid & alkali resistance
EMI & EMF resistance
Sound insulation,preventing noise.
Shielding and filtering



Copper Wire Netting Mesh 0.711mm 0.610mm Wire Dia. 6 Mesh 4

FuHang production copper wire mesh has the following advantages:



the bronze copper content of 99.99%, 99.97%, 99.95%, thermal conductivity, electrical conductivity, thermal resistance, electronic products, shielding, laminated glass, battery private networks (VPNS), pure copper wire mesh, copper alloy, copper and iron wire mesh, copper nickel alloy mesh, copper chromium alloy, copper, alloy net and other special materials production and processing.



Copper Wire Netting Mesh 0.711mm 0.610mm Wire Dia. 6 Mesh 5Copper Wire Netting Mesh 0.711mm 0.610mm Wire Dia. 6 Mesh 6Copper Wire Netting Mesh 0.711mm 0.610mm Wire Dia. 6 Mesh 7

Our Services:



1.Support OEM.
2.Sample: Valid
3.Delivery time: The shortest of production time.
If have stocks, the shipping within 3 days.
4.Payment: T/T, L/C, Western Union.
5.The mode of transportation: Sea shipping, air shipping,International express.



Why Choose Us ?



1 Rich experience production team


Our company was established in 2009 and it has 5000 m2 production workshop, Hundreds of skille technicians, Dozens of production and processing lines. We have many years of experience in the wi mesh field


2 Professional quality inspection system

We have a strict quality inspection system and a professional testing team, we guarantee product quality



3 Perfect service system

  1. 24 hours on-line service
  2. Free samples if stocked
  3. Quality problem we could accept the products returm
  4. Competitive price with superior higher quality products
  5. Professional team to solve all your questions

Copper Wire Netting Mesh 0.711mm 0.610mm Wire Dia. 6 Mesh 8

Packing detail :


Inside the roll with paper tube to reduce the pressure while loading, then wrapped with plastic flm as well
as woven bag on the finished roll, final loaded in the strong wooden box.





Copper Wire Netting Mesh 0.711mm 0.610mm Wire Dia. 6 Mesh 9
