Product Description

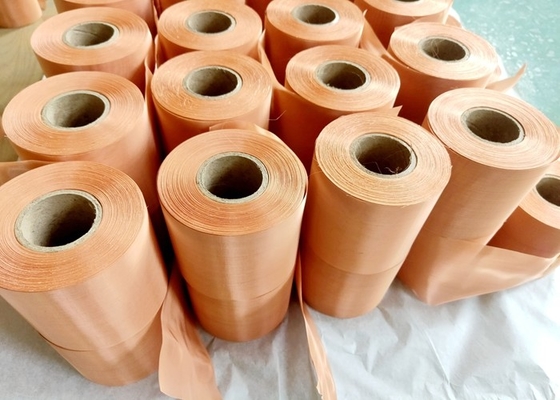

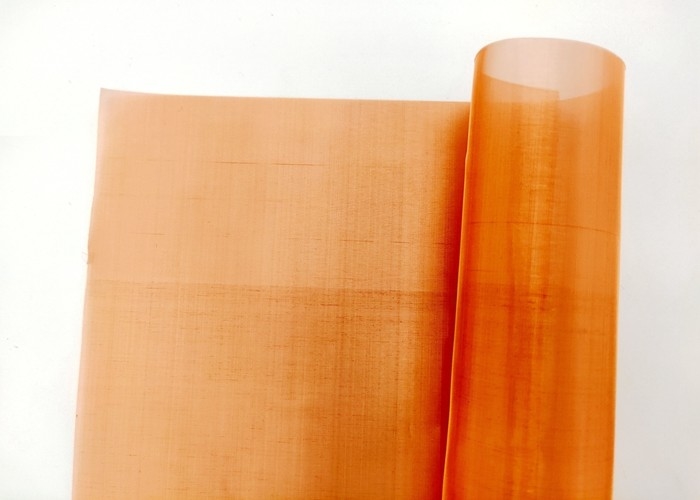

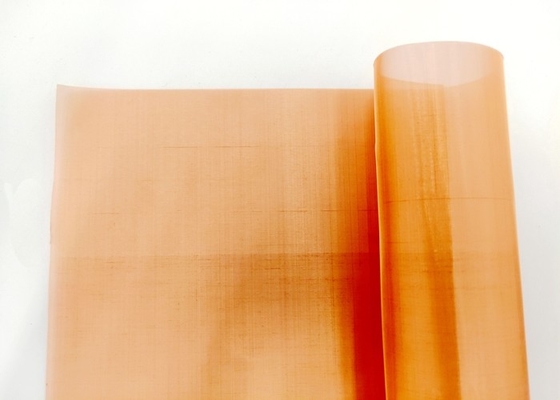

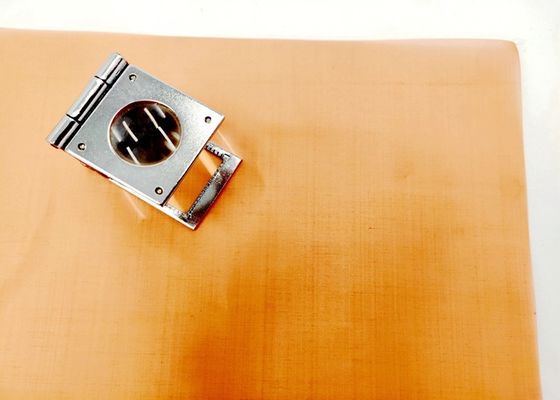

Special Lightning Resistant Conductive Copper Wire Mesh For Wind Turbine Blades

Copper Wire Mesh Introduction

Copper wire mesh is also called red copper mesh. The purity of copper is 99.8%. The aperture of copper wire mesh can range from 2 meshes to 100 meshes, which can suit for different requirements. Except for the pure copper woven wire mesh, there are copper alloy wire mesh, such as the brass wire mesh and phosphor bronze wire mesh.
The copper woven wire mesh is non-magnetic, so it is also called shielding screen in the circuits, laboratories and computer rooms, it also has outstanding wear resistance and sound insulation performance.

Copper Wire Mesh Specifications

Material

brass wire--purity--Cu: 65% , Zn:35%

red copper wire--purity--Cu:99.8%

phoshpor bronze wire--purity--Cu:85%-90% , Sn:5%-15%

Optional range

Mesh count:1-200 mesh

Wire diameter:0.05mm-2.03mm

Common roll size:1*30m

Other size:1.2*30m,1.5*30m,2m*30m etc

Feature:
High conductivity and rust corrosion.
Uniform opening.
Red-orange metallic luster.
Flexibility.
Easy to cut with scissors.

Advantages

Excellent EMI/RFI/EMC shielding performance.

Beautiful and attractive surface.

Non-magnetic.

Excellent electical conductivity.

FuHang production copper wire mesh has the following advantages:

The bronze copper content of 99.99%, 99.97%, 99.95%, thermal conductivity, electrical conductivity, thermal resistance, electronic products, shielding, laminated glass, battery private networks (VPNS), pure copper wire mesh, copper alloy, copper and iron wire mesh, copper nickel alloy mesh, copper chromium alloy, copper, alloy net and other special materials production and processing.
