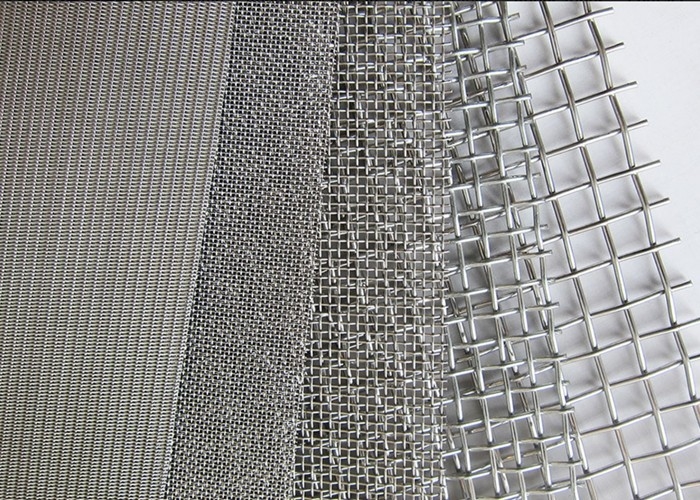

316 Stainless Steel Wire Cloth Mesh Screen Reverse Dutch Weave
Product Details:
| Place of Origin: | China |
| Brand Name: | FUHANG |
| Certification: | ISO9001 |
| Model Number: | stainless steel wire mesh |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 square meter |
|---|---|
| Price: | USD $0.5-$5 Square Meter |
| Packaging Details: | paper tube inside+ wodden box +plastic bag |
| Delivery Time: | 5-8 days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 10000 Square Meter Per Month |
|
Detail Information |
|||
| Material: | AISI 304/316/316L/201/202/310S Etc | Application: | Filters,Woven Wire Mesh,mining,oil,space Flight |
|---|---|---|---|
| Technique: | Woven | Type: | Weave Wire Mesh,Wire Cloth |
| Weave Style: | Plain Weave,Dutch Weave,Reverse Dutch | Wire Diameter: | 0.018mm-2.5mm,0.025-1.8mm,0.018-1.6,0.008-0.08inch (0.0203-2.03mm) |
| Product Name: | Stainless Steel Wire Mesh,Micro Opening Stainless Steel Wire Cloth/mesh/filter Screen,dutch Weave Stainless Steel Filter Cloth For Plastic Extruder,90 100 200 400 600 Micron Stainless Steel Wire Mesh Screen | Length: | 30m Per Roll Or As Required |
| Width: | 1.2m,1m,0.5-2m | Usage: | Liquid Filter,space Flight,oil,Printing,chemical Industry |
| Feature: | Corrosion Resistance,Acid-resisting,alkali- Resisting,heat Resistant | Mesh: | 2 Meshes,20 Mesh,100 200 250 300 400 500 600 Mesh,80-400mesh/inch Stainless Steel Wire Mesh |
| Hole Shape: | Square Hole,Customized | Sample: | Free,available,According To Size |
| Mesh Count: | 1x1-635x635mesh/inch,0.5 Mesh To 2800 Mesh | Name: | Stainless Steel Wire Screen Printing Metalic Mesh,Wire Mesh Reverse Dutch Woven Cloth For Plastic Extruder Screen,2x2 Stainless Steel Welded Wire Mesh,stainless Steel Printing Screen Cloth,40 60 Mesh UNS S32750 Super Duplex Stainless Steel Wire Mesh / |
| Market: | Europe,Australia,Asia,Afirca Etc,America | ||
| High Light: | reverse dutch stainless steel wire cloth,316 stainless steel wire cloth,316 stainless steel wire cloth screen |
||
Product Description
Stainless Steel Mesh Cloth Stainless Steel Cloth Stainless Wire Cloth 316 Stainless Steel Mesh Screen
Stainless Steel Woven Wire Mesh Screen
Stainless steel woven wire mesh has better corrosion resistance and longer service life than galvanized woven wire mesh. Although galvanized woven mesh is economical and has similar uses with stainless steel woven mesh, galvanized mesh cannot replace stainless steel mesh in demanding environments, such as the printing industry, ultra-fine mesh and high-precision filtration, and the use environment that requires high strength and toughness.
Fuhang company offers various weave types of stainless steel woven wire mesh screen to fulfill your requirements, including plain weave, twill weave and Dutch weave, etc..
Material: AISI 302, 304, 304L, 316, 316L, 321, 310, 904L, etc.
Wire diameter: 0.0008″-0.08″ (0.02-2.0 mm)
Mesh counts: 1-500 mesh
Opening in Micron: 1-20,000 microns
Types of Weave: Plain Weave, Twill Weave and Dutch Weave
Types: Available in cloth, panels and sheets.
Features: Precise opening, uniform mesh, excellent corrosion resistance, strong and durable.
Plain & Twill Weave
Plain weave and twill weave stainless steel woven wire mesh screens are commonly used for sieving, filtration, and security applications. Plain weave is woven by passing the shute wire over and under the warp wire successively, creating a square opening mesh. Twill weave is woven by passing the shute wire over and under two strands of warp wire, creating denser and sturdier meshes.
plain weave vs twill weave
Plain Dutch Weave
Plain Dutch stainless steel woven wire mesh screen has a similar weaving pattern as in plain, except the diameter of warp wire is larger than shute wire.
Twill Dutch Weave
Twill Dutch weave stainless steel wire mesh screen combines the weaving pattern of twill and Dutch, the larger diameter warp successively passes over and under smaller diameter shute wire creating a tight mesh that can withstand heavy pressure. Since Dutch weave creates a stronger and more durable structure than plain weave does, this type of mesh provides superior liquid filtration capabilities and it is your ideal option for petrochemical, aerospace, pharmaceutical, mining, and wastewater treatment facilities.
Reverse Plain & Twilled Dutch Weave
Reverse Dutch weave stainless steel woven wire mesh screen also uses two different sizes of wires in weaving but reversing the method used in Dutch weave. The smaller wires are using in the warp direction and are woven with a larger shute wire. The smaller wires are woven as closely as possible to provide a finer and tighter mesh for filtering. The larger wire is used to strengthen and support the whole mesh.
