316L Stainless Steel Demister Pad / Rope Mesh For Gas Liquid Separation
Product Details:
| Place of Origin: | China |
| Brand Name: | FUHANG |
| Certification: | ISO9001 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Square Meter |
|---|---|
| Price: | 1-30 Square Meter $2/Square Meter >30 Square Meters $1/Square Meter |
| Packaging Details: | paper tube inside+ wodden box +plastic bag |
| Delivery Time: | 5-8 work days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 50000 square meter /15 Days |
|
Detail Information |
|||
| Material: | Stainless Steel Wire | Application: | Filters |
|---|---|---|---|
| Type: | Knitted Wire Mesh | Feature: | Corrosion Resistance,high Temperature Resistance |
| Width: | Customized | Product Name: | Stainless Steel Knitted Mesh |
| Usage: | Air & Amp ; Liquid Filtration | Color: | Can Be Customized |
| Sample: | Avaliable , Free | Business Type: | Manufacture & Trading,manufacture And Trading Company |
| High Light: | Stainless Steel Demister Pad,316L Stainless Steel Rope Mesh |
||
Product Description

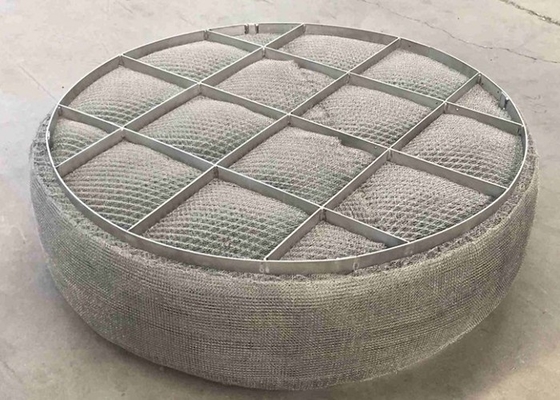

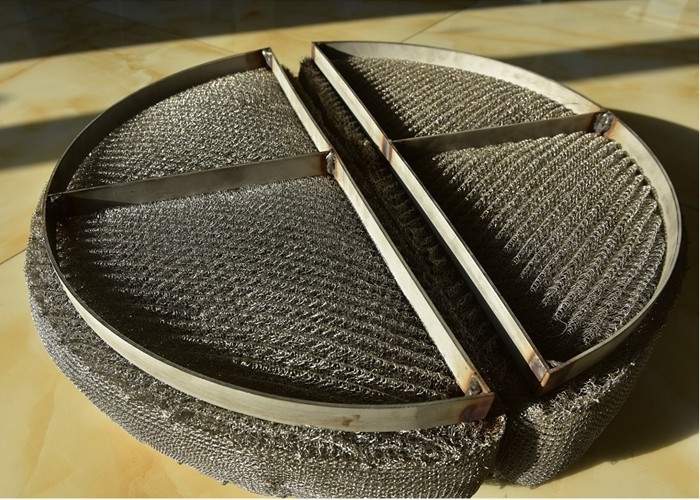

Stainless Steel Demister Pad Stainless Steel Rope Mesh For Gas-Liquid Separation
The stainless steel demister pad not only has excellent chemical stability, it also has high separating efficiency and temperature resistance performance. Stainless steel demister pad is the most widely used type among all the metal demister pad. Stainless steel demister pad for separation of entrained droplets of gas tower to ensure that there is mass transfer efficiency and reduce the value of material losses and the operation of the compressor to improve the tower, most people set the wire in the top of the tower mesh demister. Can effectively remove the 3 - 5um the droplet, if the settings between trays demister, not only to ensure the efficiency of mass transfer tray, also can reduce the board space.
Demister Pad:
Material: 304,304L,316,316L
Diameter:300mm--6400mm
Popular specs of stainless steel demister pad
• Demister pad size: 442 mm diameter × 150 mm thickness.
• Demister pad size: 2290 mm diameter × 100 mm thickness.
• Demister pad size: 11-1/4" width × 1" thickness × 118" length.
• Demister pad size: 11-7/8" width × 1" thickness × 142" length.
• Demister pad size: 14-5/6" width × 1" thickness × 142" length.
|
Models in domestic and other companies |
|||||||||||
| Density (kg/m3) |
Free volume (%) |
Surface area (m2/m3) |
Domestic model | Other companies model | |||||||
| Metex | York | Becoil | Knitmesh | Vico-tex | Uop | Koch | Acs | ||||
| 80 | 99.0 | 158 | H | Hi-Thruput | 931 | 954 | 4536 | 160 | B | 511 | 7CA |
| 120 | 98.5 | 210 | L | 422 | |||||||
| 144 | 98.2 | 280 | N | Nu-Standard | 431 | 9030 | 280 | A | 911 | 4CA | |
| 128 | 98.4 | 460 | SN | 326 | 415 | 706 | |||||
| 193 | 97.5 | 375 | SL | Xtra-Dense | 421 | 890 | 9033 | 380 | C | 1211 | 4BA |
| 300 | 96.2 | 575 | SM | ||||||||
| 390 | 95.0 | 750 | SH | ||||||||
| 220 | 97.2 | 905 | T | ||||||||
| 432 | 94.5 | 1780 | R | Multi-Strand | 333 | 800 | |||||
| 220 | 97.2 | 428 | W | Wound | |||||||
| 160 | 96.7 | 5000 | GS | 371 | |||||||
Stainless steel demister pad is mainly used for gas-liquid separation. Widely used in chemical, petroleum, tower manufacturing, pressure vessels and other industries in the gas-liquid separation device. Also for the air filter for gas separation. In addition, demister screen can be used as instruments of industrial instrumentation in the various buffers to prevent electrical interference shielding of electronic devices.
Demister pads standard: HG / T 21618 - 1998
Features of stainless steel demister pad
• High corrosion and rust resistance.
• Acid, alkali and salty resistance.
• High mechanical strength.
• High filtering efficiency.
• Durable and long service life.
• Various types for choice.
• Convenient for installing and transporting.
