Monel Knitted Wire Mesh Gasket Light Weight Durable Corrosion Resistance
Product Details:
| Place of Origin: | China |
| Brand Name: | FUHANG |
| Certification: | ISO9001 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Square Meter |
|---|---|
| Price: | 1-30 Square Meter $5/Square Meter >30 Square Meters $3/Square Meter |
| Packaging Details: | paper tube inside+ wodden box +plastic bag |
| Delivery Time: | 3-10 work days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 5000 square meter /15 Days |
|
Detail Information |
|||
| Name: | Monel Knitted Wire Mesh | Type: | Knitted Wire Mesh |
|---|---|---|---|
| Weave Style: | Knitting Mesh | Technique: | Knitted |
| Feature: | Corrosion Resistance | Product Name: | Knitted Wire Mesh,gas Liquid Filter |
| Usage: | Air & Liquid Filtration | Business Type: | Manufacture & Trading,factory |
| High Light: | Monel Knitted Wire Mesh,Knitted Wire Mesh Gasket,Corrosion Resistance Knitted Metal Mesh |
||
Product Description

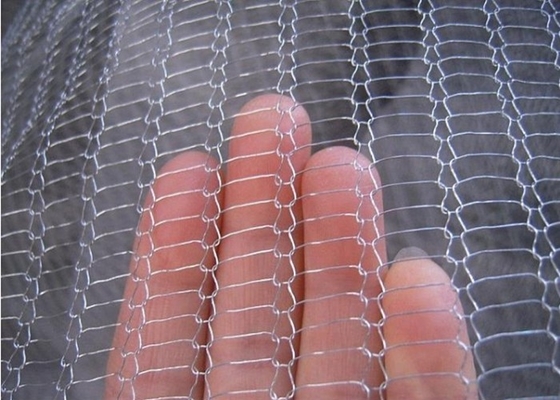

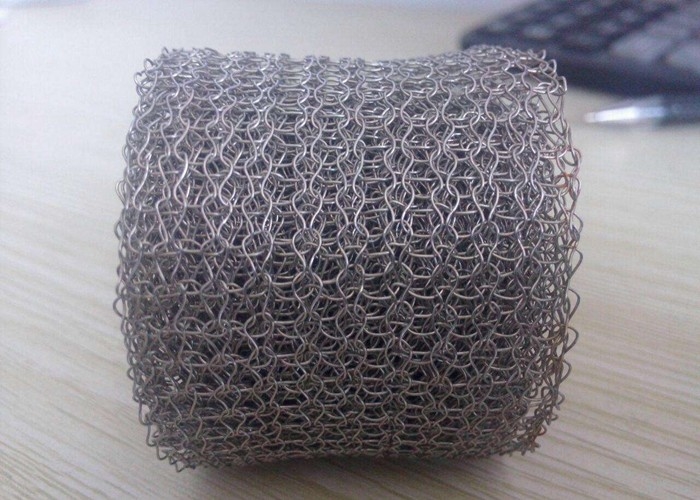

Monel knitted wire mesh/gaskets are produced by special weaving machines, use monel wire as raw material, the finished product is knitted wire mesh tube. Monel knitted wire mesh is most commonly used as economical gaskets for EMI shielding. Monel knitted wire mesh has good corrosion resistance in all extreme environments and it is reasonably conductive and is tough with high tensile strength, giving good wear characteristics.
We can offer monel knitted wire mesh in the standard specifications, opening sizes range from 1 mm x 1 mm to 6 mm x 6 mm, while wire diameters range from 0.10 mm to 0.28 mm, and the manufactured width is up to 600 mm, although more typically 20 mm to 100 mm.
The standard wire material are Monel 400. Monel 400 is an extremely combination property nickel alloy contains approximately 67% nickel, 28% copper and 5% others, in the hydrofluoric acid and fluoride gas medium with excellent corrosion resistance, it is more resistant to oxidation than higher copper alloys and more resistant to reducing conditions than nickel.
Benefits
Light weight and durable
Greater strength and toughness
Soft and nonmagnetic
High temperature and excellent corrosion resistant
Application
Usage of Monel knitted wire mesh includes:
In the filtration & separation applications, for the screen of the mist eliminator.
In the EMI & RFI shielding applications, for shielding gaskets, elastomer cores and cable wrap.
Monel knitted wire mesh materials
Knitted wire mesh is available in three series of different wire materials:
Pure nickel: Nickel 200/201, Nickel 270
Nickel Alloy: Cr20Ni80, Monel 400, Inconel 600
Others available, please ask
Monel knitted wire mesh rolls
Roll width 3 mm, 15 mm, 25.4 mm, 50.8 mm to 600 mm (measured on flat)
Roll length 15 m, 30 m, 50 m to 200 m
Other rolls size on request
When ordering or requesting a quote for monel knitted wire mesh, please specify:
Number of length 30 m rolls or size required
Width eg. 25.4 mm
Diameter of wire eg. 0.11 mm
Aperture eg. 1 mm x 1 mm
Material eg. Monel 400
