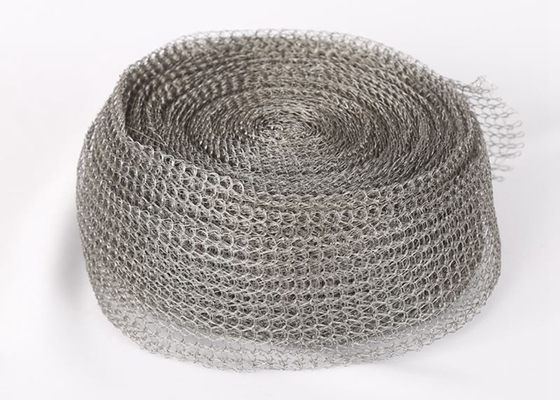

Aluminum Knitted Wire Mesh Tube 50mm 100mm Roll Width for Filters
Product Details:
| Place of Origin: | China |
| Brand Name: | FUHANG |
| Certification: | ISO9001 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Square Meter |
|---|---|
| Price: | 1-30 Square Meter $2/Square Meter >30 Square Meters $1/Square Meter |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 50000 square meter /15 Days |
|
Detail Information |
|||
| Name: | Aluminum Knitted Wire Mesh | Application: | Filters |
|---|---|---|---|
| Type: | Knitted Wire Mesh | Technique: | Knitted |
| Width: | Customized | Product Name: | Knitted Wire Mesh |
| Usage: | Liquid Filter,Air & Liquid Filtration | Length: | As Customer Requirement |
| Sample: | Free | ||
| High Light: | Knitted Wire Mesh Tube,Aluminum Knitted Wire Mesh,100mm Knitted Filter Wire Mesh |
||
Product Description
Aluminum knitted wire mesh, knitted wire mesh tube, flat knitted wire mesh tape, shielding knitted wire mesh gaskets
Aluminum knitted wire mesh can be create very high levels of electromagnetic shielding performance, so it is widely used in the EMI & RFI shielding applications. Aluminum knitted wire mesh is produced from monofilament or multifilament aluminum wire by special weaving machines, knitted into a seamless and continuous tubular form.
Knitted aluminum wire mesh strips provide excellent RFI/EMI shielding and filtration solutions. Shielding seals supplied in forms of Compressed mesh gaskets or O rings Processing knit mesh into gaskets: Knitted aluminum wire mesh is made into gaskets through a compression die Fabric layers: Single layer, double layer, trilayers.
We can offer aluminum knitted wire mesh in the standard specifications, opening sizes range from 3 mm x 3 mm to 10 mm x 10 mm, while wire diameter ranges from 0.13 mm to 0.30 mm, and the manufactured width is between 100 mm and 500 mm. The standard wire materials are Grade 5056 aluminum alloy.
Benefits
Good electrical performance
Long Service Life
Lightweight and low cost
Aluminum knitted wire mesh materials
Pure aluminum series: Grade 1050 (DIN Al99.5), Grade 1060 (DIN Al99.6), Grade 1100 (DIN Al99.0Cu)
Aluminum knitted wire mesh is available in two series of different wire materials:
Aluminum alloy series: Grade 5052 (DIN AlMg2.5), Grade 5056 (DIN AlMg5), Grade 5083 (DIN AlMg4.5)
Others available, please ask
Application
Usage of aluminum knitted wire mesh includes:
In the aerospace applications, for a part of the aircraft under wing door panel as a seal.
In the filtration & separation applications, for the screen of the demister pads and range hood screen.
In the EMI & RFI shielding applications, for elastomer cores and cable wrap.

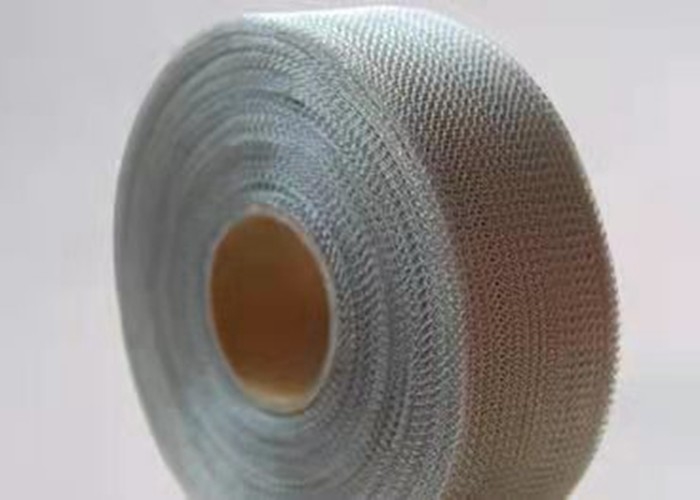

Aluminum knitted wire mesh rolls
Roll width 50 mm, 100 mm, 200 mm to 500 mm (measured on flat)
Roll length 15 m, 30 m, 50 m to 100 m
Other rolls size on request
When ordering or requesting a quote for aluminum knitted wire mesh, please specify:
Number of length 30m rolls or size required
Width eg. 100 mm
Diameter of wire eg. 0.23 mm
Aperture eg. 3 mm x 5 mm
Material eg. Grade 5056 aluminum alloy
