Stainless Steel Knitted Wire Mesh 0.10mm -0.45mm Wire Diameter
Product Details:
| Place of Origin: | China |
| Brand Name: | FUHANG |
| Certification: | ISO9001 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Square Meter |
|---|---|
| Price: | 1-30 Square Meter $5/Square Meter >30 Square Meters $3/Square Meter |
| Packaging Details: | paper tube inside+ wodden box +plastic bag |
| Delivery Time: | 6-8 work days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 50000 square meter /15 Days |
|
Detail Information |
|||
| Name: | Stainless Steel Knitted Wire Mesh | Material: | Stainless Steel Wire,imported Wire 304N,Stainless Steel Wire304,316 |
|---|---|---|---|
| Type: | Knitted Wire Mesh | Weave Style: | Knitting Mesh |
| Technique: | Knitted | Feature: | Corrosion Resistance,anti-corrosion |
| Product Name: | Stainless Steel Compressed Knitted Wire Mesh Customized,knitted Wire Mesh | Length: | As Customer Requirement |
| Sample: | Avaliable,free | Business Type: | Manufacture & Trading,factory |
| High Light: | Stainless Steel Knitted Wire Mesh,Knitted Wire Mesh 0.10mm,Knitted Stainless Steel Wire Mesh |
||
Product Description
Stainless Steel Knitted Wire Mesh Stainless Steel Knitted Mesh Knitted Stainless Steel Wire Mesh
Stainless steel knitted wire mesh, knitted wire mesh tube, shielding knitted wire mesh, 304 stainless steel knitted mesh tape

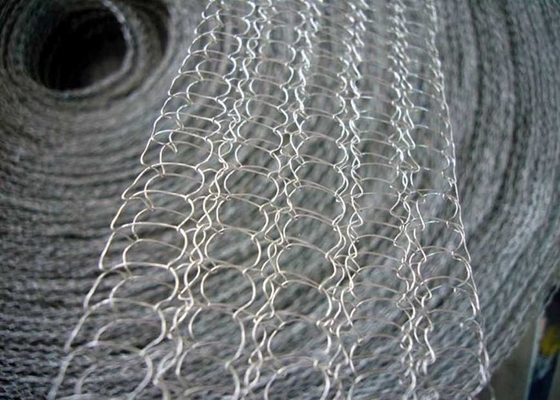

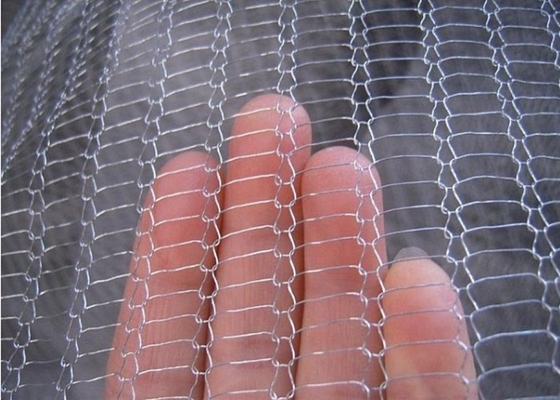

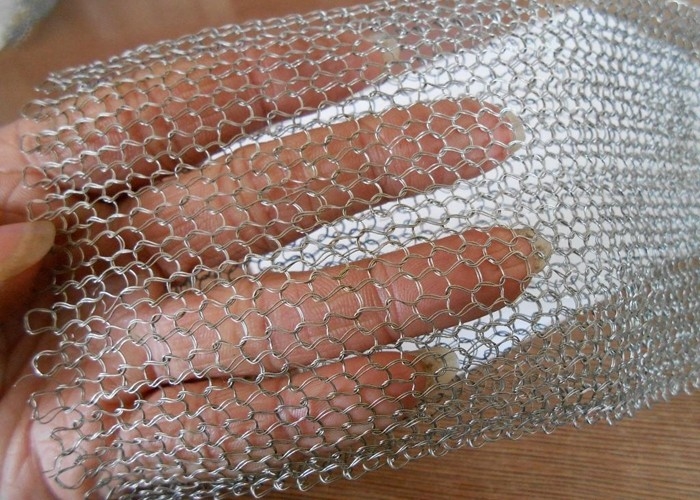

Stainless steel knitted mesh is manufactured by a circular knitting machine, use stainlesss steel wire as raw material, knitting monofilament or multifilament wire into a tubular form. Then the wire mesh be flattened to mesh rolls, and can be also supplied in corrugated (crimped) form. This production process produces an extremely strong and flexible sleeve composed of a series of interlocking rings. It can be made of monofilament or multifilament.
Monofilament knitted mesh is the most commonly used type and can be used for general applications, while multifilament woven mesh has higher strength and bearing capacity and can be used for heavy applications. Stainless steel knitted wire mesh are most commonly used in the filtration & separation industries and EMI & RFI shielding industries.
We can offer stainless steel knitted wire mesh in the standard specifications, opening sizes range from 1 mm x 1 mm to 10 mm x 10 mm, while wire diameters range from 0.10 mm to 0.45 mm. Depending on the specification, and the manufactured width is between 3 mm and 600 mm. The standard materials are Grade 304 and Grade 316 stainless steel.
Features
High strength and overall rigidity
Excellent filtration accuracy
Excellent corrosion resistance, alkali and acid resistance, heat resistance
Excellent shielding performance.
Long-lasting
Stainless steel knitted wire mesh materials
Stainless steel knitted wire mesh is available in three series of different wire materials:
200 series: Grade 201 (1.4372), Grade 202 (1.4373)
300 series: Grade 304 (1.4301), Grade 316 (1.4401), Grade 321 (1.4541)
400 series: Grade 410 (1.4006), Grade 420 (1.4021 ), Grade 430 (1.4016)
Others available, please ask
Application
Usage of stainless steel knitted wire mesh includes:
In the architectural & decorative industries, for the screen of garden.
Sealing, shock-absorbing, muffler and exhaust gas purification components of auto parts

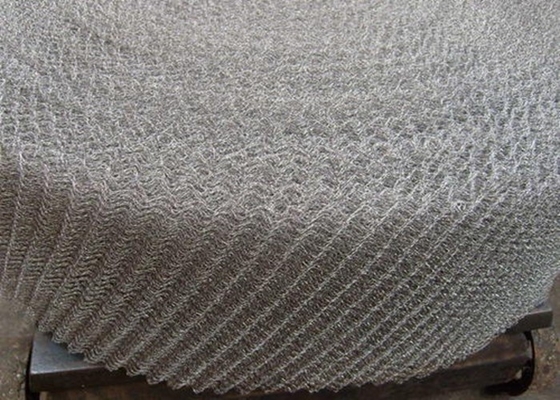

It can be made into a defogging pad to eliminate mist.
In the EMI & RFI shielding industries, for elastomer cores and cable wrap.
In the filtration & separation industries, for the screen of the demister pads, coalescers (Reactor Internals) and range hood screen.
In the automobile industries, for airbags, anti vibration and mufflers & silencers.
Weave type

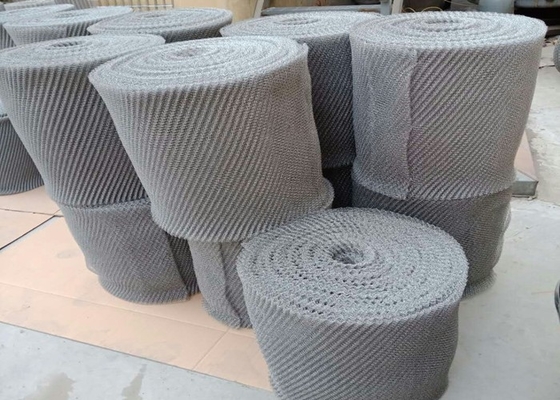

Stainless steel knitted wire mesh rolls
Roll width 3 mm, 15 mm, 25.4 mm, 50.8 mm to 600 mm (measured on flat)
Roll length 15 m, 30 m, 50 m to 200m
Other rolls size on request
When ordering or requesting a quote for stainless steel knitted wire mesh, please specify:
Number of length 30 m rolls or size required
Width eg. 100 mm
Diameter of wire eg. 0.23 mm
Aperture eg. 3 mm x 5 mm
Material eg. Grade 304
