80x700 Mesh Dutch Weave Stainless Steel Wire Mesh , 25 Micron Filter Cloth
Product Details:
| Place of Origin: | China |
| Brand Name: | FUHANG |
| Certification: | ISO9001 |
| Model Number: | 80x700 Mesh |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Square Meter |
|---|---|
| Price: | 1-30 Square Meter $2/Square Meter >30 Square Meters $1/Square Meter |
| Delivery Time: | 5-8 work days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 50000 square meter /15 Days |
|
Detail Information |
|||
| Product Name: | 80x700 Mesh Dutch Weave Micronic Filter Cloth | Application: | Woven Wire Mesh |
|---|---|---|---|
| Weave Style: | Dutch/Plain/Twill Weave | Type: | Weave Wire Mesh |
| Material: | Stainless Steel Wire 316 | Width: | Usually1M |
| Usage: | Filter | Length: | 1-30m |
| Feature: | Acid-resisting,Anti-corrosion,alkali-resisting Etc | Color: | Silver |
| Technique: | Woven | Advantage: | Factory Direct Sale |
| Sample: | Free | Packing: | Paper Tube Inside+ Wodden Box +plastic Bag + |
| High Light: | Dutch Weave Stainless Steel Wire Mesh,ISO9001 25 Micron Stainless Steel Mesh,25 Micron Filter Cloth |
||
Product Description

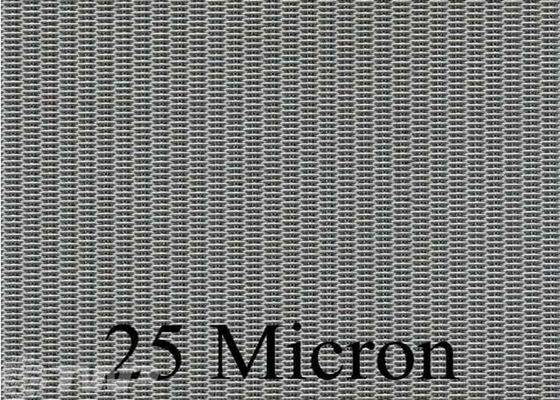

T316 80x700 Mesh Dutch Weave 25 Micron Filter Cloth
Dutch Weave Wire Mesh is made of high quality stainless steel wire woven. The main feature is the warp and weft wire diameter and density of greater contrast, and therefore the net thickness and filtering accuracy and life will have a more significant increase than the average square mesh.
Widely used petroleum, chemical, fiber, rubber, metallurgy, medicine, food and other industries.
Mesh with a Dutch weave is woven to a precise tolerance for a much denser finished material with small, curved tunnel-shaped openings. Light does not pass through Dutch-woven micronic filter mesh. Thick and sturdy Dutch weaves are typically used for hydraulic fluid filters, gas diffusers, vacuum filters, pressure liquid filters, and breather vents.
Dutch weave is divided into plain Dutch weave and twill Dutch weave. 80x700 Mesh uses twill Dutch weave.
| U.S. | Metric | |
| MESH SIZE | 80x700 per in | 80x700 per 2.54 cm |
| WIRE DIAMETER | 0.0040x0.0030 in | 0.1016x0.0762 mm |
| OPENING | 0.0010 in | 0.0254 mm |
| OPENING MICRONS | 25 | 25 |
| POROSITY | 44 | 44 |
| OVERALL THICKNESS | 0.0110 in | 0.2794 mm |
| WEIGHT/SQUARE FOOT | 0.2500 lb | 0.1135 kg |
Features
25 micron precision woven stainless steel screen
Used in separation, fuel filters, gas diffusers and vents
Light tight mesh
Flow Data is available
Meets ASTM E2814-18
Stainless Steel 316
