T316 200x1400 Mesh Dutch Weave Screen Mesh , 5 Micron Filter Fabric
Product Details:
| Place of Origin: | China |
| Brand Name: | FUHANG |
| Certification: | ISO9001 |
| Model Number: | 200x1400 Mesh |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Square Meter |
|---|---|
| Price: | 1-30 Square Meter $2/Square Meter >30 Square Meters $1/Square Meter |
| Delivery Time: | 5-8 work days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 50000 square meter /15 Days |
|
Detail Information |
|||
| Product Name: | 200x1400 Mesh Dutch Weave Micronic Filter Cloth | Application: | Woven Wire Mesh |
|---|---|---|---|
| Weave Style: | Dutch/Plain/Twill Weave | Type: | Weave Wire Mesh |
| Technique: | Woven | Material: | Stainless Steel Wire 316 |
| Width: | Usually1M | Usage: | Filter |
| Length: | 1-30m | Feature: | Acid-resisting,Anti-corrosion,alkali-resisting Etc |
| Color: | Silver | Advantage: | Factory Direct Sale |
| Sample: | Free | Packing: | Paper Tube Inside+ Wodden Box +plastic Bag + |
| High Light: | T316 Dutch Weave Screen Mesh,200x1400 Dutch Weave Screen Mesh,5 Micron Filter Fabric |
||
Product Description

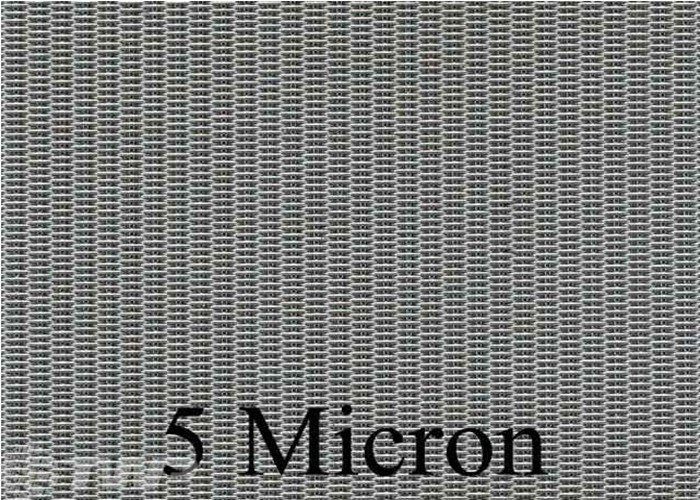

T316 200x1400 Mesh Dutch Weave 5 Micron Filter Cloth
Mesh with a Dutch weave is woven to a precise tolerance for a much denser finished material with small, curved tunnel-shaped openings. Light does not pass through Dutch-woven micronic filter mesh. Thick and sturdy Dutch weaves are typically used for hydraulic fluid filters, gas diffusers, vacuum filters, pressure liquid filters, and breather vents.
Dutch weave is divided into plain Dutch weave and twill Dutch weave. 200x1400 Mesh uses twill Dutch weave.
| U.S. | Metric | |
| MESH SIZE | 200x1400 per in | 200x1400 per 2.54 cm |
| WIRE DIAMETER | 0.0028x0.0016 in | 0.07112x0.04064 mm |
| OPENING | 0.0002 in | 0.00508 mm |
| OPENING MICRONS | 5 | 5 |
| POROSITY | 36 | 36 |
| OVERALL THICKNESS | 0.0060 in | 0.1524 mm |
| WEIGHT/SQUARE | FOOT0.1600 | lb0.0726 |
Features
5 micron precision woven stainless steel screen
Used in separation, fuel filters, gas diffusers and vents
Light tight mesh
Flow Data is available
Meets ASTM E2814-18
Stainless Steel 316
Fine mesh holes give very high filter precision.
High tensile strength and can operate under heavy pressure.
Has a solid structure and a long service life.
Applications
woven wire cloth is mainly used in the absorption, evaporation and filtration process in petroleum, chemical, medicine, metallurgy, machinery, ship and automobiles to delete the mist drop or liquid foam or used as air filter in cars and trucks. And can be made to extruder screens for melt filtration.
