165x1400 Mesh 10 Micron Filter Cloth / T316 Dutch Weave Wire Cloth
Product Details:
| Place of Origin: | China |
| Brand Name: | FUHANG |
| Certification: | ISO9001 |
| Model Number: | 165x1400 Mesh |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Square Meter |
|---|---|
| Price: | 1-30 Square Meter $2/Square Meter >30 Square Meters $1/Square Meter |
| Delivery Time: | 5-8 work days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 50000 square meter /15 Days |
|
Detail Information |
|||
| Product Name: | 165x1400 Mesh Dutch Weave Micronic Filter Cloth | Application: | Woven Wire Mesh |
|---|---|---|---|
| Weave Style: | Dutch/Plain/Twill Weave | Technique: | Woven |
| Material: | Stainless Steel Wire 316 | Width: | Usually1M |
| Usage: | Filter | Length: | 1-30m |
| Type: | Weave Wire Mesh | Feature: | Acid-resisting,Anti-corrosion,alkali-resisting Etc |
| Color: | Silver | Advantage: | Factory Direct Sale |
| Sample: | Free | Packing: | Paper Tube Inside+ Wodden Box +plastic Bag + |
| High Light: | 10 Micron Filter Cloth,165x1400 Mesh Dutch Weave Wire Cloth,T316 Dutch Weave Wire Cloth |
||
Product Description

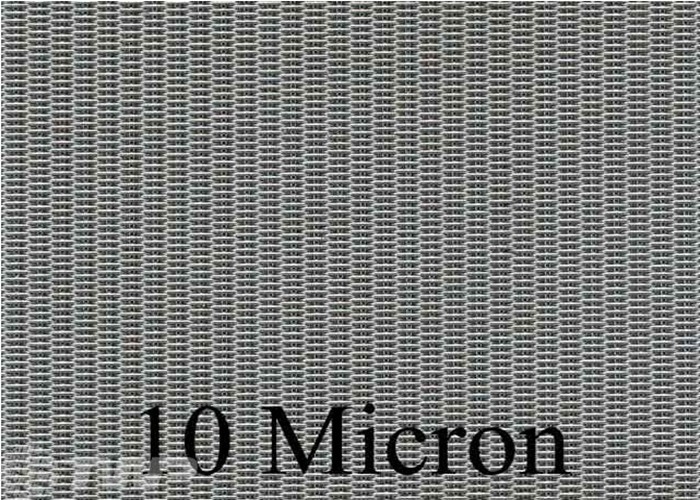

T316 165x1400 Mesh Dutch Weave 10 Micron Filter Cloth
Mesh with a Dutch weave is woven to a precise tolerance for a much denser finished material with small, curved tunnel-shaped openings. Light does not pass through Dutch-woven micronic filter mesh. Thick and sturdy Dutch weaves are typically used for hydraulic fluid filters, gas diffusers, vacuum filters, pressure liquid filters, and breather vents.
We fabric woven wire cloth from stainless steel wire with plain dutch weave or twill dutch weave for melt filtration.
Plain dutch weave
The pattern of this mesh is the same as in plain weave except that the warp wires are of a larger diameter than the shute wires and the shute wires are driven up close to each other, resulting in tapers or wedge-shaped opening instead of square opening. In dutch weave the warp wires remain in straight conditions and the shute wires are crimped.
Twilled dutch weave
Wire cloth which has the same pattern as twilled weave except the warp wires are of a larger diameter than the shute wires & the shute wires are driven up tapers or wedge-shaped opening. Warp wires remain in a straight condition, but the shute wires take all the crimp. Due to the twilled weave construction, the shute wires are not only deformed in depth (crimps when formed around the warp wires) but also sideways.
Dutch weave is divided into plain Dutch weave and twill Dutch weave. 165x1400 Mesh uses twill Dutch weave.
| U.S. | Metric | |
| MESH SIZE | 165x1400 per in | 165x1400 per 2.54 cm |
| WIRE DIAMETER | 0.0028x0.0016 in | 0.07112x0.04064 mm |
| OPENING | 0.0004 in | 0.01016 mm |
| OPENING MICRONS | 10 | 10 |
| POROSITY | 37 | 37 |
| OVERALL THICKNESS | 0.0055 in | 0.1397 mm |
| WEIGHT/SQUARE | FOOT0.1600 | lb0.0726 |
Features
10 micron precision woven stainless steel screen
Used in separation, fuel filters, gas diffusers and vents
Light tight mesh
Flow Data is available
Meets ASTM E2814-18
Stainless Steel 316
