Silver Twill Dutch Weave Wire Mesh 1M Width 15 Micron Filter Cloth
Product Details:
| Place of Origin: | China |
| Brand Name: | FUHANG |
| Certification: | ISO9001 |
| Model Number: | 165x800 Mesh |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Square Meter |
|---|---|
| Price: | 1-30 Square Meter $2/Square Meter >30 Square Meters $1/Square Meter |
| Delivery Time: | 5-8 work days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 50000 square meter /15 Days |
|
Detail Information |
|||
| Product Name: | 165x800 Mesh Dutch Weave Micronic Filter Cloth | Application: | Woven Wire Mesh |
|---|---|---|---|
| Weave Style: | Dutch / Plain / Twill Weave | Type: | Weave Wire Mesh |
| Material: | Stainless Steel Wire 316 | Width: | Usually 1M |
| Usage: | Filter | Length: | 1-30m |
| Technique: | Woven | Feature: | Acid-resisting,Anti-corrosion,alkali-resisting Etc |
| Color: | Silver | Advantage: | Factory Direct Sale |
| Sample: | Free | Packing: | Paper Tube Inside+ Wodden Box +plastic Bag + |
| High Light: | 1M Twill Dutch Weave Wire Mesh,Silver Twill Dutch Weave Wire Mesh,15 Micron Filter Cloth |
||
Product Description

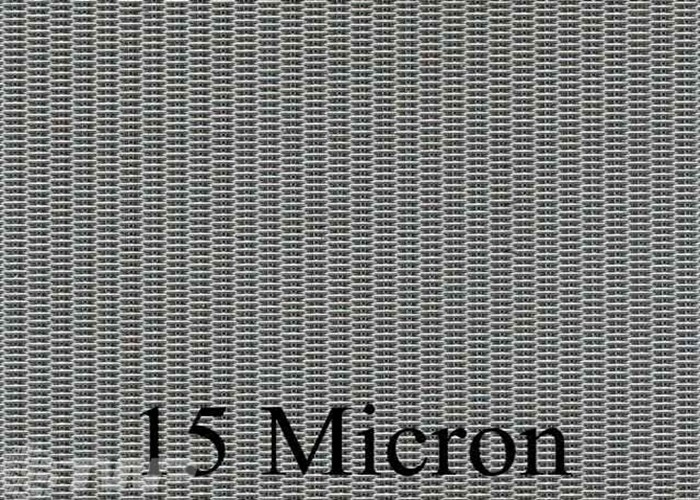

T316 165x800 Mesh Dutch Weave 15 Micron Filter Cloth
Dutch Weave wire mesh is produced by the use of coarse mesh (mesh wire, woven wire mesh, wire mesh basket) in the warp and a fine mesh with relatively smaller wire in the weft. This weave results in greater strength with very fine openings and is primarily used as a filter cloth. The shape and position of the openings and particle retention and increase filter cake formation.
Twilled Dutch Weave is produced by a combination of the features of the Dutch Weave and the Twilled Weave. Weft wires are passed alternately over and under two warp wires forming a fine mesh in one direction and a coarse mesh (mesh wire, woven wire mesh, wire mesh basket) in the other. This type of weave is capable of supporting greater loads than the Dutch Weave, with finer openings than the Twilled Weave. It is used in applications where the filtering of heavy material is necessary.
Mesh with a Dutch weave is woven to a precise tolerance for a much denser finished material with small, curved tunnel-shaped openings. Light does not pass through Dutch-woven micronic filter mesh. Thick and sturdy Dutch weaves are typically used for hydraulic fluid filters, gas diffusers, vacuum filters, pressure liquid filters, and breather vents.
Dutch weave is divided into plain Dutch weave and twill Dutch weave. 165x800 Mesh uses twill Dutch weave.
| U.S. | Metric | |
| MESH SIZE | 165x800 per in | 165x800 per 2.54 cm |
| WIRE DIAMETER | 0.0028x0.0020 in | 0.07112x0.0508 mm |
| OPENING | 0.0006 in | 0.01524 mm |
| OPENING MICRONS | 15 | 15 |
| POROSITY | 54 | 54 |
| OVERALL THICKNESS | 0.0060 in | 0.1524 mm |
| WEIGHT/SQUARE | FOOT0.1200 | lb0.0545 |
Features
15 micron precision woven stainless steel screen
Used in separation, fuel filters, gas diffusers and vents
Light tight mesh
Flow Data is available
Meets ASTM E2814-18
Stainless Steel 316
