50x250 Mesh 40 Micron Stainless Steel Mesh For Filter Free Sample
Product Details:
| Place of Origin: | China |
| Brand Name: | FUHANG |
| Certification: | ISO9001 |
| Model Number: | 50x250 Mesh |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Square Meter |
|---|---|
| Price: | 1-30 Square Meter $2/Square Meter >30 Square Meters $1/Square Meter |
| Delivery Time: | 5-8 work days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 50000 square meter /15 Days |
|
Detail Information |
|||
| Product Name: | 50x250 Mesh Dutch Weave Micronic Filter Cloth | Application: | Woven Wire Mesh |
|---|---|---|---|
| Weave Style: | Dutch/Plain/Twill Weave | Technique: | Woven |
| Material: | Stainless Steel Wire,304,316 | Width: | Usually1M |
| Usage: | Filter | Length: | 1-30m |
| Type: | Weave Wire Mesh | Feature: | Acid-resisting,Anti-corrosion,alkali-resisting Etc |
| Color: | Silver | Advantage: | Factory Direct Sale |
| Sample: | Free | Packing: | Paper Tube Inside+ Wodden Box +plastic Bag + |
| High Light: | 40 Micron Stainless Steel Mesh,40 Micron Filter Mesh |
||
Product Description

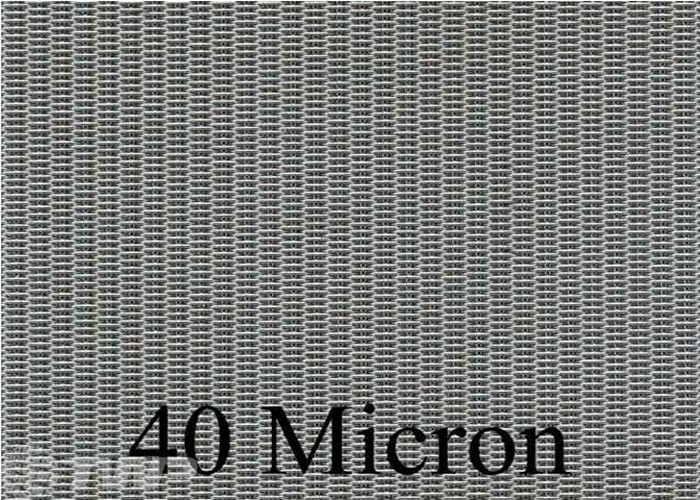

T304/T316 50x250 Mesh Dutch Weave 40 Micron Filter Cloth
Dutch Weave Wire Mesh is also known as stainless steel dutch woven wire cloth and stainless steel filter cloth. It is usually made of mild steel wire and stainless steel wire.Stainless steel dutch wire mesh is extensively utilized as filter fittings for chemical industry, medicine, petroleum, scientific research units ,due to its stable and fine filtration capability.
The apparent difference of reverse dutch weaving compared with standard dutch weave lies in the thicker warp wires and less weft wires. Reverse dutch woven stainless steel wire cloth offers finer filtration and finds popular application in petroleum, chemical, food, pharmacy and other fields.Through constant technological innovation and improvement, we can produce stainless steel wire mesh of various specification in reverse Dutch weaving patterns.
Mesh with a Dutch weave is woven to a precise tolerance for a much denser finished material with small, curved tunnel-shaped openings. Light does not pass through Dutch-woven micronic filter mesh. Thick and sturdy Dutch weaves are typically used for hydraulic fluid filters, gas diffusers, vacuum filters, pressure liquid filters, and breather vents.
Dutch weave is divided into plain Dutch weave and twill Dutch weave. 50x250 Mesh uses plain Dutch weave.
| U.S. | Metric | |
| MESH SIZE | 50x250 per in | 50x250 per 2.54 cm |
| WIRE DIAMETER | 0.0055x0.0045 in | 0.1397x0.1143 mm |
| OPENING | 0.0016 in | 0.04064 mm |
| OPENING MICRONS | 40 | 40 |
| POROSITY | 65 | 65 |
| OVERALL THICKNESS | 0.0145 in | 0.3683 mm |
| WEIGHT/SQUARE FOOT | 0.2200 lb | 0.0999 kg |
Features
40 micron precision woven stainless steel screen
Used in separation, fuel filters, gas diffusers and vents
Light tight mesh
Flow Data is available
Meets ASTM E2814-18
Stainless Steel 304/316
