Dutch Weave 316 Stainless Steel Wire Cloth Mesh 40x200 Mesh 55 Micron
Product Details:
| Place of Origin: | China |
| Brand Name: | FUHANG |
| Certification: | ISO9001 |
| Model Number: | 40x200 Mesh |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Square Meter |
|---|---|
| Price: | 1-30 Square Meter $2/Square Meter >30 Square Meters $1/Square Meter |
| Delivery Time: | 5-8 work days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 50000 square meter /15 Days |
|
Detail Information |
|||
| Product Name: | 40x200 Mesh Dutch Weave Micronic Filter Cloth | Application: | Woven Wire Mesh |
|---|---|---|---|
| Weave Style: | Dutch/Plain/Twill Weave | Type: | Weave Wire Mesh |
| Technique: | Woven | Material: | Stainless Steel Wire,304,316 |
| Width: | Usually1M | Usage: | Filter |
| Length: | 1-30m | Feature: | Acid-resisting,Anti-corrosion,alkali-resisting Etc |
| Color: | Silver | Advantage: | Factory Direct Sale |
| Sample: | Free | Packing: | Paper Tube Inside+ Wodden Box +plastic Bag + |
| High Light: | 316 Stainless Steel Wire Cloth,55 Micron Stainless Steel Wire Cloth Mesh |
||
Product Description

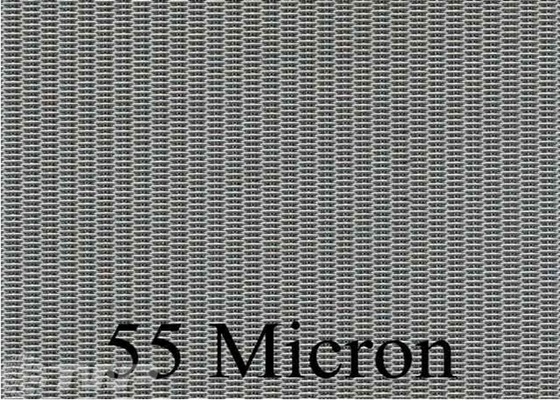

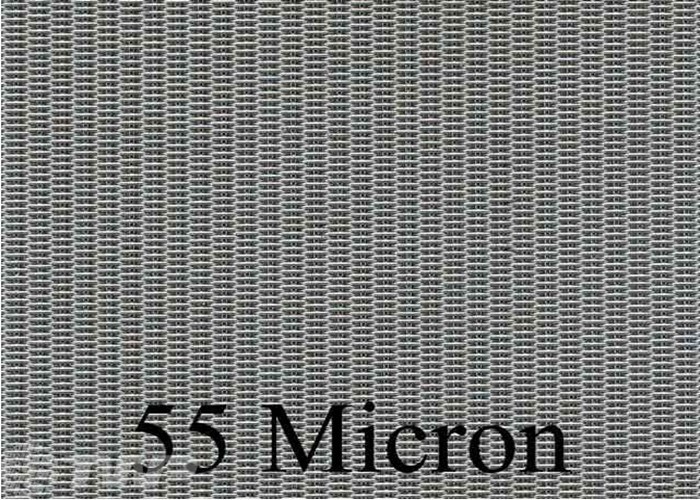

T304/T316 40x200 Mesh Dutch Weave 55 Micron Filter Cloth
Mesh with a Dutch weave is woven to a precise tolerance for a much denser finished material with small, curved tunnel-shaped openings. Light does not pass through Dutch-woven micronic filter mesh. Thick and sturdy Dutch weaves are typically used for hydraulic fluid filters, gas diffusers, vacuum filters, pressure liquid filters, and breather vents.
Dutch weave is divided into plain Dutch weave and twill Dutch weave. 40x200 Mesh uses plain Dutch weave.
| U.S. | Metric | |
| MESH SIZE | 40x200 per in | 40x200 per 2.54 cm |
| WIRE DIAMETER | 0.0070x0.0055 in | 0.1778x0.1397 mm |
| OPENING | 0.0022 in | 0.05588 mm |
| OPENING MICRONS | 55 | 55 |
| POROSITY | 63 | 63 |
| OVERALL THICKNESS | 0.0180 in | 0.4572 mm |
| WEIGHT/SQUARE FOOT | 0.2800 lb | 0.1271 kg |
Features
55 micron precision woven stainless steel screen
Used in separation, fuel filters, gas diffusers and vents
Light tight mesh
Flow Data is available
Meets ASTM E2814-18
Stainless Steel 304/316
Applications of dutch weave woven wire mesh
1. Dutch weave woven wire mesh is mainly used for filtering. It provides superior filtration capabilities for a wide range of areas applications.
Aerospace.
Petrochemical.
Pharmaceutical.
Mining.
Waste water.
2. According to the material of filtering, the plain dutch and twill dutch can be used in different applications.
The plain dutch weave woven wire mesh is mainly used for filtering and separating liquid and slurry products.
The twill dutch weave woven wire mesh is used for filtering heavy materials.
