65 Micron Stainless Steel Wire Cloth 30x150 Mesh 1-30m Length
Product Details:
| Place of Origin: | China |
| Brand Name: | FUHANG |
| Certification: | ISO9001 |
| Model Number: | 30x150 Mesh |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Square Meter |
|---|---|
| Price: | 1-30 Square Meter $2/Square Meter >30 Square Meters $1/Square Meter |
| Delivery Time: | 5-8 work days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 50000 square meter /15 Days |
|
Detail Information |
|||
| Product Name: | 30x150 Mesh Dutch Weave Micronic Filter Cloth | Application: | Woven Wire Mesh |
|---|---|---|---|
| Weave Style: | Dutch / Plain / Twill Weave | Type: | Weave Wire Mesh |
| Material: | Stainless Steel Wire,304,316 | Usage: | Filter |
| Length: | 1-30m | Color: | Silver |
| Technique: | Woven | Width: | Usually 1M |
| Feature: | Acid-resisting,Anti-corrosion,alkali-resisting Etc | Sample: | Free |
| High Light: | 65 Micron Stainless Steel Wire Cloth,30x150 Mesh Stainless Steel Wire Cloth,30m Stainless Steel Mesh Cloth |
||
Product Description

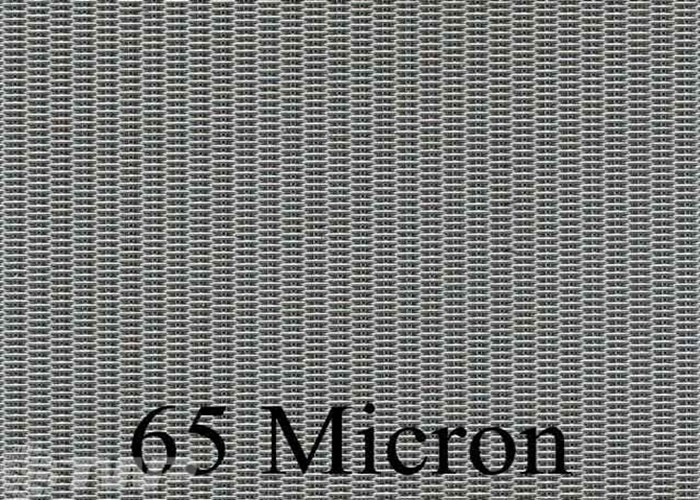

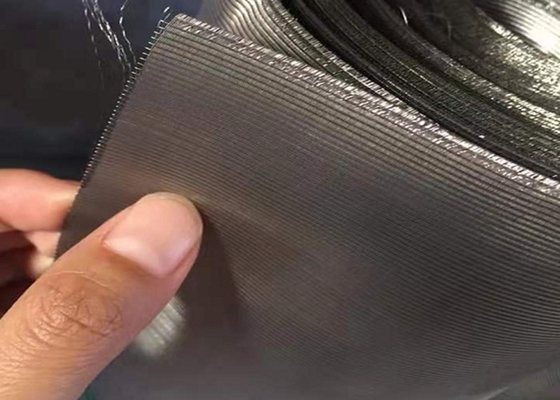

T304/T316 30x150 Mesh Dutch Weave 65 Micron Filter Cloth
Mesh with a Dutch weave is woven to a precise tolerance for a much denser finished material with small, curved tunnel-shaped openings. Light does not pass through Dutch-woven micronic filter mesh. Thick and sturdy Dutch weaves are typically used for hydraulic fluid filters, gas diffusers, vacuum filters, pressure liquid filters, and breather vents.
Dutch weave woven wire mesh can be woven in both plain dutch weave and twill dutch weave. They have their own characteristics, which can be used in different applications. There is also a specially designed and applied products - reverse dutch woven wire mesh in another page, which the warp wire lies close together and has thinner wire diameter than the warp wire.
Plain dutch weave is the combination of dutch weave and plain weave. It has two sizes of wire diameters like the dutch weave. Each warp wire with coarse wire diameter passes alternately over and under one weft wire to supply high tensile strength for the netting. The weft wire with fine wire diameter alternately passes over and under one warp wire to form a fine opening for filtering.
The plain dutch weave woven wire cloth is mainly used for filtering and separating liquid and slurry products.
Advantages than the plain weave woven wire mesh
Greater mechanical stability.
Finer opening for better filtration efficiency and quality.
Coarser wire for higher tensile strength.
Dutch weave is divided into plain Dutch weave and twill Dutch weave. 30x150 Mesh uses plain Dutch weave.
| U.S. | Metric | |
| MESH SIZE | 30x150 per in | 30x150 per 2.54 cm |
| WIRE DIAMETER | 0.0090x0.0070 in | 0.2286x0.1778 mm |
| OPENING | 0.0026 in | 0.06604 mm |
| OPENING MICRONS | 65 | 65 |
| POROSITY | 66 | 66 |
| OVERALL THICKNESS | 0.0240 in | 0.6096 mm |
| WEIGHT/SQUARE FOOT | 0.3900 lb | 0.1771 kg |
Features
65 micron precision woven stainless steel screen
Used in separation, fuel filters, gas diffusers and vents
Light tight mesh
Flow Data is available
Meets ASTM E2814-18
Stainless Steel 304/316
