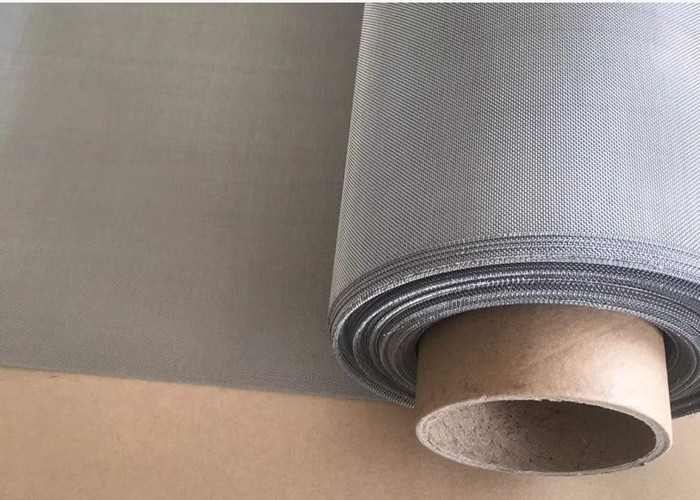

• SS316L Stainless Steel Wire Cloth 400 Mesh 0.03mm Anti Corrosion
SS316L Stainless Steel Wire Cloth 400 Mesh 0.03mm Anti Corrosion

SS316L Stainless Steel Wire Cloth 400 Mesh 0.03mm Anti Corrosion

Product Details:

Place of Origin: China
Brand Name: FUHANG
Certification: ISO9001
Model Number: 400X400Mesh

Payment & Shipping Terms:

Minimum Order Quantity: 1 Square Meter
Price: 1-30 Square Meter $5/Square Meter >30 Square Meters $3/Square Meter
Packaging Details: paper tube inside+ wodden box +plastic bag
Delivery Time: 5-8 work days
Payment Terms: L/C, T/T
Supply Ability: 50000 square meter /30 Days
Get Best Price Contact Now

Detail Information

Product Name: SS316L 400 Mesh Ultra Fine Stainless Steel Wire Mesh Application: Woven Wire Mesh
Type: Wire Cloth Technique: Woven
Material: 316L , Monel 400 Width: 0.5m-3m Or Customized
Usage: Oil,filter Feature: Acid-resisting , Anti-corrosion
Hole Shape: Square Hole Mesh Count: 400mesh
Sample: Free
High Light:

SS316L Stainless Steel Wire Cloth


0.03mm Stainless Steel Wire Cloth


400 Micron Stainless Steel Mesh

Product Description

  SS316L  400 Mesh Ultra Fine Stainless Steel Woven Wire Mesh For Filter and sieving


   Our company manufactures and supplies stainless steel wire mesh products to meet and exceed our client’s specific requirements, reducing costs while increasing production efficiency. We have a full range of 304 and 316 stainless steel woven mesh products available for immediate shipping and we can supply our clients with extra wide wire cloth products of up to 240″ wide and extra-long rolls of up to 2000″. Hightop’s wire mesh products comply with the ASTM E2016, ASTM E2814 and ISO 9044 as our minimum standard.


SS316L Stainless Steel Wire Cloth 400 Mesh 0.03mm Anti Corrosion 0


   400 mesh ultra fine stainless steel woven wire mesh is a very competitive product among many products in our factory. "Mesh" is the unit of specification for stainless steel wire mesh, which refers to how many holes there are in a length of 1 inch (25.4 mm). 400 mesh stainless steel wire mesh is 400 meshes in one inch length. 400 mesh ultra fine stainless steel wire mesh is also called 400 mesh filter cloth, 400 mesh filter screen, 400 mesh screen and so on.


   The wire diameters suitable for the production 400X400 mesh ultra fine stainless steel woven wire mesh is 0.03 mm. The following are detailed data about this product:





Wire Diameter


Width of



% of

Open Area



400X400 Woven 0.03 0.034 27.00% 0.18


   The widths we often produce are3F, 1 meter, 1.2 meters, 1.5meters, 1.8 meters, and 2 meters. The length of each roll is usually 30 meters and 100F. We can customize special sizes according to your requirements.



1. Good acid resistance, alkali resistance and corrosion resistance;

2. High strength, strong tensile force, toughness and abrasion resistance, durable;

3. Resistant to high temperature oxidation.

4. Processing at room temperature, easy to make various shapes;

5. High smoothness, no need for surface treatment, convenient and simple maintenance.

6. Material can easily bend by hand and cut with scissors or laser

7. Commonly used for laboratories and filters


   Unlike other metals, stainless steel wire mesh is uniquely equipped to resist rust and abrasion. Stainless steel wire mesh contains chromium and nickel in addition to steel, increasing corrosion resistance. It's also extremely durable, as well as heat and cold resistant. Keep in mind stainless steel is non-magnetic in the annealed condition. After stainless steel wire mesh has been woven, it may become slightly magnetic due to cold working.


   We can produce stainless steel wire mesh with stainless steel wire material in SUS/AISI 316, 316L ,MONEL.The relatively more used materials is 316.


T316 Stainless Steel-Standard Chemical Composition
Maximum Carbon (C) Maximum Manganese (Mn) Maximum Phosphorus (P) Maximum Sulphur (S) Maximum Silicon (Si) Chromium (Cr) Nickel (N) Mo
0.08 Max

2.0 %


0.045 %


0.03 %


1.00 %


16.00 to

18.00 %

10.00 to

14 %

2.0 to

3.0 %

   T-316 is a special stainless alloy, which contains 18 percent chromium and 10 percent nickel, as well as 2 percent molybdenum. This combination enables the mesh to resist corrosion from salts, acids, and seawater.


   T-316 melts at 2500 degrees F (1375 C), but its maximum recommended temperature for continuous service is 1500 degrees F. (815 C) and is useful for intermediate service up to 1650 degrees F (900 C). Its uses include processing oils and foods, chemicals, and pharmaceuticals.

T-316 stainless steel is heat resistant and has good oxidation resist resistance to a temperature of approximately 1600oF in intermittent service and to a temperature of 1700oF in continuous service.


T-316L stainless steel wire mesh is often used and found in applications and industries highlighted below:


Marine technologies Pharmaceuticals Chemical processing

Food preparation & processing Rubber, plastic machinery Boat & yacht fittings

Scientific & laboratory use Automotive Refinery & oil field

Aerospace Particle separation General industrial use


   In addition, our 400mesh ultra fine stainless steel woven wire mesh produced with Monel 400® stainless steel wire is also favored by many customers.Monel 400® wire mesh is known for its exceptional strength and resistance. It is made primarily from nickel and copper alloys and holds up under high temperatures. This high-performance mesh is typically used in marine, chemical, power generation, and aerospace environments, but it is suitable for various applications including commercial cooking, filtration, heating, boiling, dyeing, refining, demistering, and desalination. In addition, it can be easily welded, which adds to the versatility of the material.


   400 mesh ultra fine stainless steel woven wire cloth are widely used in the chemical industry for oil and gas separation, precision screening and filtration, battery manufacturing, aerospace, etc. due to its precise filtration characteristics.


   We can cut stainless steel wire mesh into different shapes and sizes according to your needs, such as rectangular mesh, square mesh, round and oval mesh. It can also be processed into other shapes of filters.

SS316L Stainless Steel Wire Cloth 400 Mesh 0.03mm Anti Corrosion 1


Stainless steel wire mesh packaging: Generally, it is packaged in kraft paper, wrapped with waterproof plastic sheet, and then packed into a fumigation-free wooden box.

SS316L Stainless Steel Wire Cloth 400 Mesh 0.03mm Anti Corrosion 2
