T304 Stainless Steel Wire Cloth 120 Mesh Plain Weave 0.5m-3m With Good Acid Resistance
Product Details:
Place of Origin: | China |
Brand Name: | FUHANG |
Certification: | ISO9001 |
Model Number: | 120X120Mesh |
Payment & Shipping Terms:
Minimum Order Quantity: | 1 Square Meter |
---|---|
Price: | 1-30 Square Meter $5/Square Meter >30 Square Meters $3/Square Meter |
Packaging Details: | paper tube inside+ wodden box +plastic bag |
Delivery Time: | 5-8 work days |
Payment Terms: | L/C, T/T |
Supply Ability: | 50000 square meter /30 Days |
Detail Information |
|||
Application: | Woven Wire Mesh | Product Name: | SS304/316 1M X100F 120 Mesh Stainless Steel Wire Mesh |
---|---|---|---|
Weave Style: | Plain Weave | Type: | Wire Cloth |
Technique: | Woven | Material: | 304 , 316 |
Width: | 0.5m-3m Or Customized | Usage: | Oil,filter |
Feature: | Acid-resisting,Anti-corrosion | Hole Shape: | Square Hole |
Mesh Count: | 120mesh | Sample: | Free |
High Light: | T304 Stainless Steel Wire Cloth,120 Mesh Stainless Steel Wire Cloth,0.5m Plain Weave Wire Cloth |
Product Description
SS304 4F X100F 120 Mesh Stainless Steel Wire Mesh For Filter and sieving
Stainless steel wire mesh, also known as wire cloth or wire fabric, is renowned for its remarkable versatility. The distinguishing characteristic of wire mesh is the matrix of wires that are arranged at 90-degree angles.
Stainless steel wire mesh with its excellent resistance against acid, alkali, heat and corrosion, find extensively uses in processing of oil, chemical, food, making wire mesh filter, also sorting and screening of solid, liquid and gas in mine, metallurgy, airspace and machine making etc.
"Mesh" is the unit of specification for stainless steel wire mesh, which refers to how many holes there are in a length of 1 inch (25.4 mm). 120 mesh stainless steel wire mesh is 120 meshes in one inch length. 120 mesh stainless steel wire mesh is also called 120 mesh filter cloth, 120 mesh filter screen, 120 mesh screen and so on.
There are usually two ways of weaving 120 mesh stainless steel wire mesh: plain weave and twill weave. The wire diameters suitable for the production of plain weave 120X120mesh stainless steel wire mesh are 0.09mm,0.08, 0.07mm. The wire diameters suitable for the production of twill weave 120X120mesh stainless steel wire mesh are 0.12mm,0.11mm. The following are detailed data about this product:
Mesh |
Construction Type |
Wire Diameter (mm) |
Width of Opening (mm) |
% of Open Area |
Weight (kgs/m2) |
120X120 | Plain Weave | 0.09 | 0.12 | 33.04% | 0.49 |
0.08 | 0.13 | 38.69% | 0.38 | ||
0.07 | 0.14 | 44.80% | 0.29 | ||
Twill Weave | 0.12 | 0.09 | 18.76% | 0.86 | |
0.11 | 0.10 | 23.07% | 0.73 |

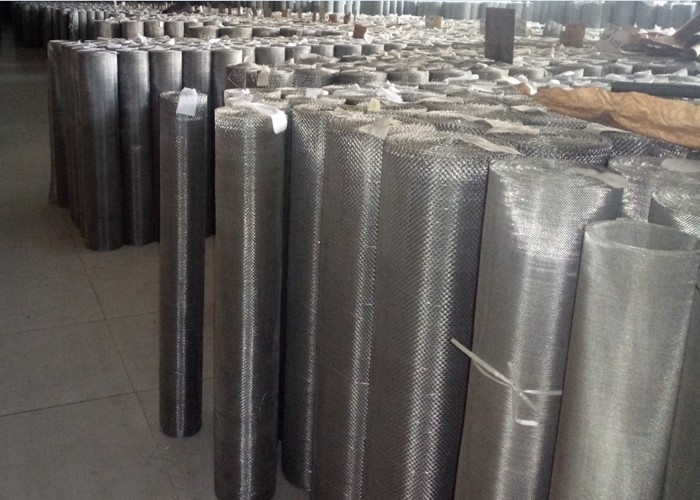

The widths we often produce are3F, 1 meter, 1.2 meters, 1.5meters, 1.8 meters, and 2 meters, 2.2meters, 2.5meters, 3meters. The length of each roll is usually 30 meters and 100F. We can customize special sizes according to your requirements.
Features:
1. Good acid resistance, alkali resistance and corrosion resistance;
2. High strength, strong tensile force, toughness and abrasion resistance, durable;
3. Resistant to high temperature oxidation, the nominal temperature of 304 stainless steel
4. Processing at room temperature, easy to make various shapes;
5. High smoothness, no need for surface treatment, convenient and simple maintenance.
We can produce stainless steel wire mesh with stainless steel wire material in SUS/AISI 201, 202, 304,304L,310, 310S, 316, 316L ,MONEL ,321 ,430 etc.The relatively more used materials are 304 and 316.
Unlike other metals, stainless steel wire mesh is uniquely equipped to resist rust and abrasion. Stainless steel wire mesh contains chromium and nickel in addition to steel, increasing corrosion resistance. It's also extremely durable, as well as heat and cold resistant. Keep in mind stainless steel is non-magnetic in the annealed condition. After stainless steel wire mesh has been woven, it may become slightly magnetic due to cold working.
Stainless steel wire mesh is available in two basic types of metal alloys:
T304 Stainless Steel-Standard Chemical Composition | |||||||
Maximum Carbon (C) | Maximum Manganese (Mn) | Maximum Phosphorus (P) | Maximum Sulphur (S) | Maximum Silicon (Si) | Chromium (Cr) | Nickel (N) |
Maximum Nitrogen (N) |
0.08 %
|
2.0 %
|
0.045 %
|
0.03 %
|
1.00 %
|
18.00 to 20.00 % |
8.00 to 10.50 % |
0.10 % |
T-304 is the basic stainless alloy, containing 18 percent chromium and 8 percent nickel. It's not as corrosion resistant as T-316, but it's acceptable (and more affordable) for most uses, unless otherwise specified.
Although it melts at 2,600 degrees F (1430 degrees C), it’s best for use at 1450 degrees F (790 degrees C) for continuous service and 1650 degrees F (900 C) for intermediate service. Its uses include sorting and screening of abrasives, liquids, powders and other solids. |
T316 Stainless Steel-Standard Chemical Composition | |||||||
Maximum Carbon (C) | Maximum Manganese (Mn) | Maximum Phosphorus (P) | Maximum Sulphur (S) | Maximum Silicon (Si) | Chromium (Cr) | Nickel (N) | Mo |
0.08 Max |
2.0 %
|
0.045 %
|
0.03 %
|
1.00 %
|
16.00 to 18.00 % |
10.00 to 14 % |
2.0 to 3.0 % |
T-316 is a special stainless alloy, which contains 18 percent chromium and 10 percent nickel, as well as 2 percent molybdenum. This combination enables the mesh to resist corrosion from salts, acids, and seawater.
T-316 melts at 2500 degrees F (1375 C), but its maximum recommended temperature for continuous service is 1500 degrees F. (815 C) and is useful for intermediate service up to 1650 degrees F (900 C). Its uses include processing oils and foods, chemicals, and pharmaceuticals. |
The main difference between 316 and 304 in chemical composition is that 316 contains Mo, and it is generally recognized that 316 has better corrosion resistance and is more resistant to corrosion in high temperature environments than 304. Therefore, in high-temperature environments, engineers generally choose 316 stainless steel wire mesh.
Some of the more popular applications and industries that use 120X120mesh stainless steel wire mesh are listed below:
1. Used for sieving and filtering under acid and alkali environmental conditions, as a sieving net in the petroleum industry, and as a sieving net in the chemical and chemical fiber industry.
2. Used in mining, petroleum, chemical, food, medicine, machinery manufacturing and other industries.
3. Used for screening and filtering under acid and alkali environmental conditions, as a mud mesh in the petroleum industry, as a screen in the chemical and chemical fiber industry, and as a pickling mesh in the electroplating industry.
We can cut stainless steel wire mesh into different shapes and sizes according to your needs, such as rectangular mesh, square mesh, round and oval mesh. It can also be processed into other shapes of filters.
Stainless steel wire mesh packaging: Generally, it is packaged in kraft paper, wrapped with waterproof plastic sheet, and then packed into a fumigation-free wooden box.
