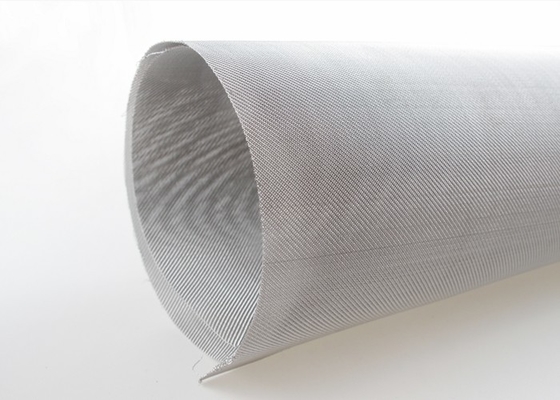

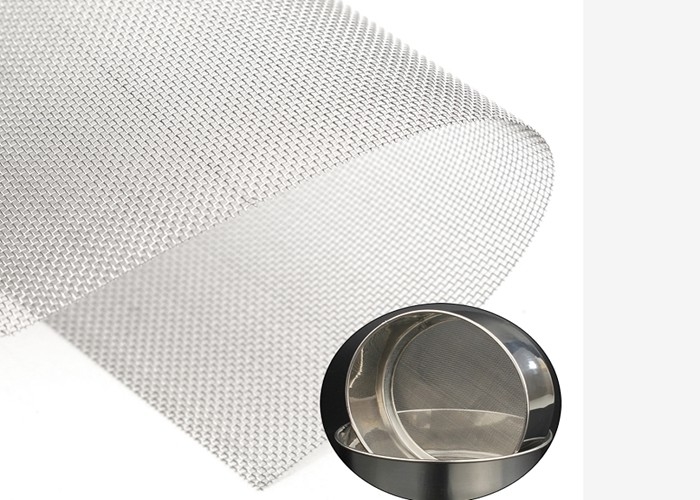

1M Width Stainless Steel Wire Cloth Square Hole 90X90 Mesh Silver Color
Product Details:
| Place of Origin: | China |
| Brand Name: | FUHANG |
| Certification: | ISO9001 |
| Model Number: | 90X90Mesh |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Square Meter |
|---|---|
| Price: | 1-30 Square Meter $2/Square Meter >30 Square Meters $1/Square Meter |
| Delivery Time: | 5-8 work days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 50000 square meter /15 Days |
|
Detail Information |
|||
| Product Name: | 1M X 100F Square Hole 90X90 Mesh Stainless Steel Wire Netting | Application: | Mining,Protecting Mesh |
|---|---|---|---|
| Type: | Weave Wire Mesh | Technique: | Woven |
| Material: | Stainless Steel Wire | Wire Diameter: | Requirement |
| Feature: | Acid-resisting,Anti-corrosion,alkali Resist | Color: | Silver |
| Weave Style: | Plain Weave, Twill Weave | Hole Shape: | Square Hole |
| Advantage: | Factory Direct Sale,competitive Price | Sample: | Free,Avaliable |
| Name: | 90Mesh Stainless Steel Wire Mesh | ||
| High Light: | 1M Stainless Steel Wire Cloth,90X90 Mesh Stainless Steel Wire Cloth,Stainless Steel Wire Mesh Cloth |
||
Product Description
1M Width Square Hole 90X90 Mesh Stainless Steel Wire Mesh For Sieving and Filtering
Stainless steel wire mesh, also known as wire cloth or wire fabric, is renowned for its remarkable versatility. The distinguishing characteristic of wire mesh is the matrix of wires that are arranged at 90-degree angles.
Stainless steel wire mesh with its excellent resistance against acid, alkali, heat and corrosion, find extensively uses in processing of oil, chemical, food, making wire mesh filter, also sorting and screening of solid, liquid and gas in mine, metallurgy, airspace and machine making etc.
There are usually two ways of weaving 90 mesh stainless steel wire mesh: plain weave and twill weave. The wire diameters suitable for the production of plain weave 80X80mesh stainless steel wire mesh are 0.12mm,0.10mm. The wire diameters suitable for the production of twill weave 90X90mesh stainless steel wire mesh are 0.15mm. The following are detailed data about this product:
| Mesh |
Construction Type |
Wire Diameter (mm) |
Width of Opening (mm) |
% of Open Area |
Weight (kgs/m2) |
| 90X90 | Plain Weave | 0.12 | 0.16 | 33.04% | 0.65 |
| 0.1 | 0.18 | 41.69% | 0.45 | ||
| Twill Weave | 0.15 | 0.13 | 21.95% | 1.01 |
The widths we often produce are3F, 1 meter, 1.2 meters, 1.5meters, 1.8 meters, and 2 meters, 2.2meters, 2.5meters, 3meters. The length of each roll is usually 30 meters and 100F. We can customize special sizes according to your requirements.
Features:
1. Good acid resistance, alkali resistance and corrosion resistance;
2. High strength, strong tensile force, toughness and abrasion resistance, durable;
3. Resistant to high temperature oxidation, the nominal temperature of 304 stainless steel
4. Processing at room temperature, easy to make various shapes;
5. High smoothness, no need for surface treatment, convenient and simple maintenance.
We can produce stainless steel wire mesh with stainless steel wire material in SUS/AISI 201, 202, 304,304L,310, 310S, 316, 316L ,MONEL ,321 ,430 etc.The relatively more used materials are 304 and 316. The following mainly introduces the element content and characteristics of the two materials 304 and 316.
| T304 Stainless Steel-Standard Chemical Composition | |||||||
| Maximum Carbon (C) | Maximum Manganese (Mn) | Maximum Phosphorus (P) | Maximum Sulphur (S) | Maximum Silicon (Si) | Chromium (Cr) | Nickel (N) |
Maximum Nitrogen (N) |
|
0.08 %
|
2.0 %
|
0.045 %
|
0.03 %
|
1.00 %
|
18.00 to 20.00 % |
8.00 to 10.50 % |
0.10 % |
| 304 stainless steel is the most widely used chromium-nickel stainless steel. As a widely used steel, it has good corrosion resistance, heat resistance, low temperature strength and mechanical properties; it has good hot workability such as stamping and bending without heat treatment. If it is an industrial atmosphere or heavily polluted area, it needs to be cleaned in time to avoid corrosion. It is suitable for food processing, storage and transportation. Has good processing properties and weldability. | |||||||
| T316 Stainless Steel-Standard Chemical Composition | |||||||
| Maximum Carbon (C) | Maximum Manganese (Mn) | Maximum Phosphorus (P) | Maximum Sulphur (S) | Maximum Silicon (Si) | Chromium (Cr) | Nickel (N) | Mo |
| 0.08 Max |
2.0 %
|
0.045 %
|
0.03 %
|
1.00 %
|
16.00 to 18.00 % |
10.00 to 14 % |
2.0 to 3.0 % |
| Due to the addition of Mo element, 316 stainless steel has greatly improved its corrosion resistance and high temperature strength. The high temperature resistance can reach 1200-1300 degrees, and it can be used under harsh conditions. | |||||||
The main difference between 316 and 304 in chemical composition is that 316 contains Mo, and it is generally recognized that 316 has better corrosion resistance and is more resistant to corrosion in high temperature environments than 304. Therefore, in high-temperature environments, engineers generally choose 316 stainless steel wire mesh.
Due to the different chemical composition content of stainless steel of different materials, the degree of heat resistance of stainless steel wire mesh is also different. The temperature that the stainless steel mesh withstands is also different from the actual temperature.
Material heat-resistant temperature (degrees Celsius)
SUS304 750
SUS321 850
SUS316 850
SUS310 1150 (stable at high temperature)
SUS314 1250 (strong high temperature resistance and oxidation resistance)
Actual use of heat-resistant temperature
SUS304 550 (temperature resistance conflicts with corrosion resistance)
SUS321 625 (temperature resistance conflicts with corrosion resistance)
SUS316 625 (temperature resistance conflicts with corrosion resistance)
SUS310 900 (stable at high temperature)
SUS314 1100 (strong high temperature resistance and oxidation resistance)
Some of the more popular applications and industries that use 90X90mesh stainless steel wire mesh are listed below:
1. Used for sieving and filtering under acid and alkali environmental conditions, as a sieving net in the petroleum industry, and as a sieving net in the chemical and chemical fiber industry.
2. Used in mining, petroleum, chemical, food, medicine, machinery manufacturing and other industries.
3. Used for screening and filtering under acid and alkali environmental conditions, as a mud mesh in the petroleum industry, as a screen in the chemical and chemical fiber industry, and as a pickling mesh in the electroplating industry.
We can cut stainless steel wire mesh into different shapes and sizes according to your needs, such as rectangular mesh, square mesh, round and oval mesh. It can also be processed into other shapes of filters.
Stainless steel wire mesh packaging: Generally, it is packaged in kraft paper, wrapped with waterproof plastic sheet, and then packed into a fumigation-free wooden box.
