0.5-10mm Hot Dip Galvanized Wire Mesh , Stainless Steel Crimped Mesh For Protection
Product Details:
| Place of Origin: | China |
| Brand Name: | FUHANG |
| Certification: | ISO9001 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Square Meter |
|---|---|
| Price: | 1-30 Square Meter $2/Square Meter >30 Square Meters $1/Square Meter |
| Delivery Time: | 5-8 work days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 50000 square meter /30 Days |
|
Detail Information |
|||
| Features: | Acid Resistant | Product Name: | Galvanized Crimped Wire Mesh |
|---|---|---|---|
| Application: | Protecting Mesh | Type: | Crimped Wire Mesh |
| Material: | Galvanized Wire | Weave Style: | Crimped Weave |
| Wire Diameter: | 0.5-10mm | Hole Shape: | Square Hole,as Per Requirement |
| Length: | 30m Per Roll Or As Required | Usage: | Coal Industrial,screening Coarse Material,construction Industrial |
| Width: | Customized | Name: | Mine Screen Mesh |
| Keyword: | Galvanized Square Woven Wire Mesh | ||
| High Light: | 0.5mm Hot Dip Galvanized Wire Mesh,Stainless Steel Crimped Mesh |
||
Product Description

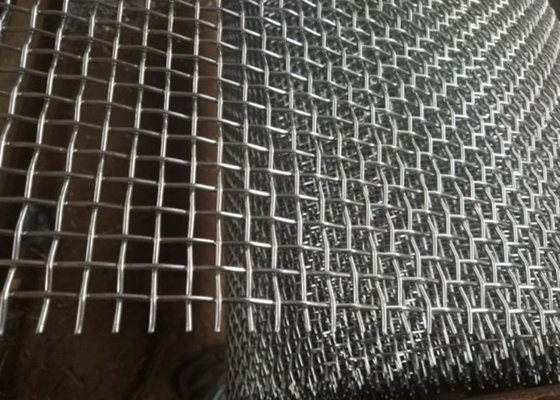

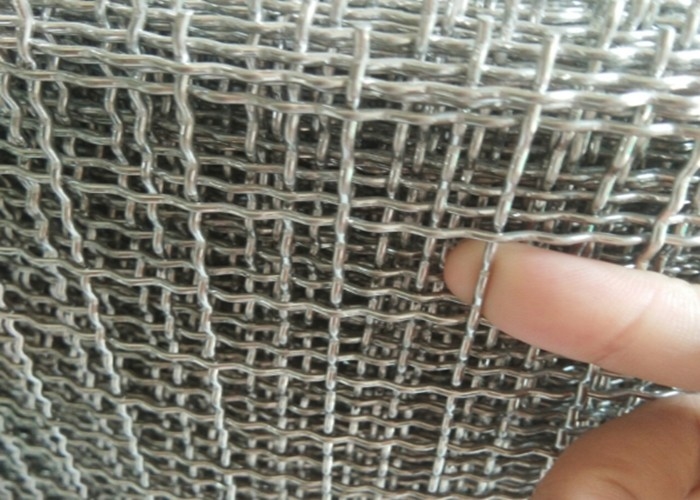

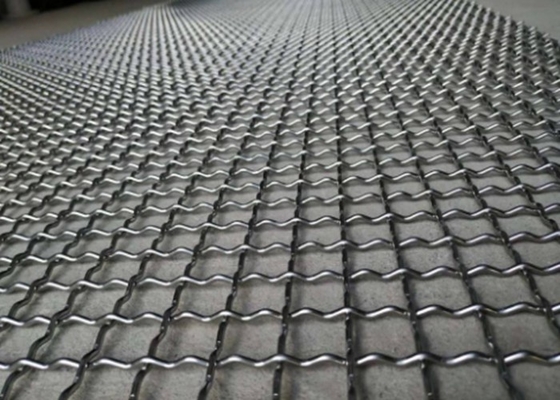

Galvanized Crimped Wire Mesh Hot Dip Galvanized Crimped Mesh For Protection
Galvanized crimped wire mesh is made by pressing the galvanized wire into a certain wave, and then weaving it through a weaving machine. The galvanized crimped mesh has a compact structure and high cost performance. Compared with stainless steel crimped wire mesh, the biggest advantage of galvanized crimped wire mesh is its low price. Compared with galvanized welded wire mesh, galvanized crimped wire mesh has the advantage of being firm and will not open welding. Therefore, galvanized crimped wire mesh is the best choice for places that do not have high requirements for rust and corrosion, but have protection requirements.
Wide application of galvanized crimped wire mesh
Galvanized crimped wire mesh is widely used in mechanical protection, screening, food machinery, construction, animal cages, etc. due to its compact structure, rust and corrosion resistance, and high cost performance. At the same time, galvanized crimped wire mesh is also widely used in barbecues. Our website has a special introduction to the use of galvanized mesh for barbecue. If you are interested, you can check the relevant content.
Characteristics:
With stable structure and good strength, crimped wire mesh is high temperature resistance, acid resistance, alkali resistance, abrasion resistance.
Recommended Specifications:
| BWG | Wire Diameter | Aperture | Weight Kg/㎡ |
| 14 | 2.0 | 1 | 4.2 |
| 8 | 4.05 | 1 | 15 |
| 25 | 0.50 | 0.61 | 2.6 |
| 23 | 0.61 | 0.8 | 3.4 |
| 24 | 0.55 | 0.1 | 2.5 |
| 24 | 0.55 | 0.12 | 4 |
| 22 | 0.71 | 0.14 | 2.94 |
| 19 | 1 | 0.18 | 1.45 |
| 6 | 4.8 | 2 | 20 |
| 6 | 4.8 | 2 | 20 |
| 6 | 4.8 | 3 | 14 |
| 14 | 2.0 | 0.3 | 12 |
| 14 | 2.0 | 1 | 2.5 |
| 14 | 2.0 | 1.5 | 1.9 |
