Lock Crimped Wire Mesh Carbon Steel Surface Untreatment Wear Resistance

Product Description

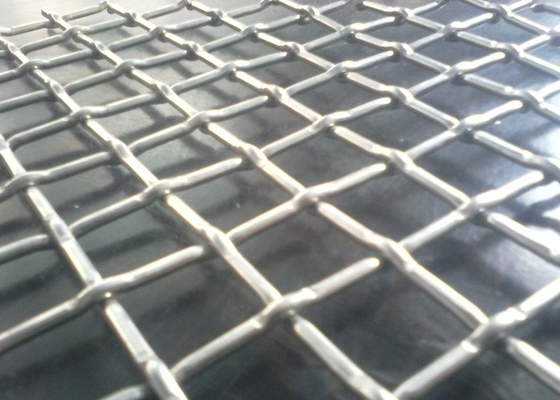

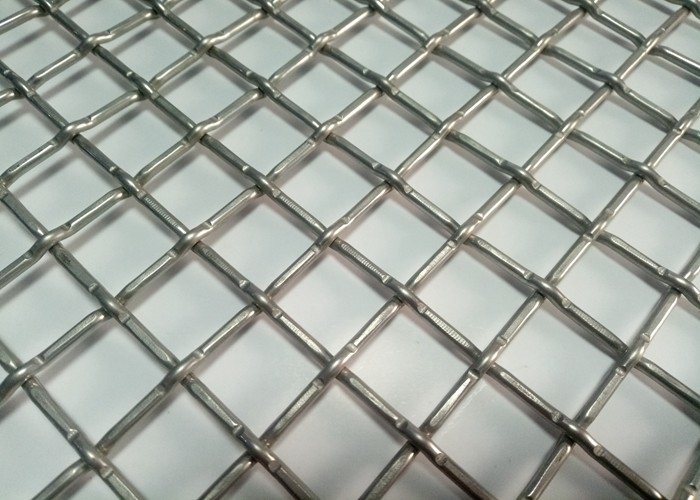

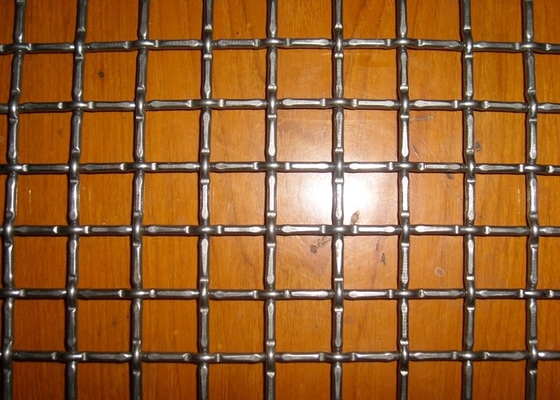

   304 Lock Crimped Wire Mesh Carbon Steel Pre Crimped Wire Mesh Lock Crimp Wire Mesh

   Lock crimp is comprised of pre-crimped wire featuring the formation of knuckles or bumps over intersecting sets of wires. This locks the mesh in place to create an extremely rigid product.Lock crimped wire mesh/screen is produced on looms by weaving previously crimped wires.

   This type of wire mesh prevents materials from slipping down and is commonly used as heavy duty wire mesh in the mining and architectural applications. Lock crimped weave is a more modern crimp style, the warp wire and weft wire are crimping at the points of intersection and have clear bumps, while the wires on a lock crimp are straight between intersections.

   The lock crimp wire mesh is manufactured by weaving pre-crimped wires. The characteristic of the lock crimp is that its warp and weft are crimped at the intersection and have distinct humps, and the wire in between the intersection is straight.

   This crimping pattern locks the wires tightly together, further ensuring that the wires will not move, and improving the stability of the screen. Lock crimp wire mesh provides a stable mesh structure, which makes it an ideal choice for vibrating screens in mining & construction industries and decorative mesh in architecture industries.

We can offer lock crimped wire mesh in the standard specifications, opening sizes range from 4.0 mm to 100.0 mm, while wire diameters range from 0.8 mm to 4.8 mm, and the manufactured width is between 1 m and 4 m. The woven mesh are commonly constructed with materials of carbon steel and stainless steel.

Benefits

Particularly smooth surface

Wear resistance and firm structure

Greater precision

strong and durable, long life

Keep the wires in a specific position

Lock crimped wire mesh materials

Lock crimped wire mesh is available in five different series of wire materials:

Stainless steel: 201,202, 304, 316, 321, 410, 430, 310, 310S

Carbon/plain steel: low carbon steel, mild carbon steel, high carbon steel

Copper: brass, pure copper, phosphor bronze

Nickel: nickel alloy,pure nickel, monel

Aluminum: 5056, 5052, 1100, 1060, 1050

Other available, please ask

Application

Usage of lock crimped wire mesh includes:

In the architectural & decorative industries, for the screen of window, fence and ceiling.

In the mining & aggregate industries, for the quarrying screen of vibrating machine.

In the petrochemical & chemical industries, for test sieve.

Construction and decoration industry, used for fences, ceilings, and other decorative elements.

Test sieve for petrochemical industry.

Lock crimped wire mesh rolls

Roll width 1 m---4 m

Roll length 15 m--- 90 m

Other rolls size on request

Lock crimped wire mesh panels

Panel width: 0.5 m--- 3 m

Panel length: 1 m---8 m

Other sheets size on request

When ordering or requesting a quote for lock weave crimped wire mesh, please specify:

Number of length 30 m for 1 m wide rolls or size required

Crimp style eg. Lock crimp weave

Aperture eg. 20 mm

Diameter of wire eg. 3.2 mm

Material eg. 316 Stainless Steel Wire
