SS304 Plain Crimped Wire Mesh Fence Carbon Steel Mining Screen Mesh
Product Details:
| Place of Origin: | China |
| Brand Name: | FUHANG |
| Certification: | ISO9001 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Square Meter |
|---|---|
| Price: | 1-30 Square Meter $20/Square Meter >30 Square Meters $15/Square Meter |
| Delivery Time: | 5-8 work days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 50000 square meter /15 Days |
|
Detail Information |
|||
| Name: | Plain Crimped Wire Mesh | Application: | Woven Wire Mesh |
|---|---|---|---|
| Technique: | Weave | Material: | Stainless Steel Wire,Black Wire Mesh,High Carbon Steel,SS304/SS304L/SS316/SS316L/SS310/Low Carbon Steel Wire |
| Wire Diameter: | Requirement | Hole Shape: | As Per Requirement |
| Color: | Customized | Type: | Crimped Screen |
| Length: | 30m Per Roll Or As Required,50m/roll At Customer Request | Product Name: | Crimped Wire Mesh |
| Usage: | Construction Industrial | Surface Treatment: | Untreatment |
| Width: | Customized | ||
| High Light: | SS304 Crimped Wire Mesh,Crimped Wire Mesh Fence,Carbon Steel Mining Screen Mesh |
||
Product Description
304 Plain Crimped Wire Mesh Carbon Steel Mining Screen Mesh Crimped Wire Fence
Plain crimped wire mesh, pre-crimped wire mesh sheets, vibrating screen panels, square or rectangular hole wire screen

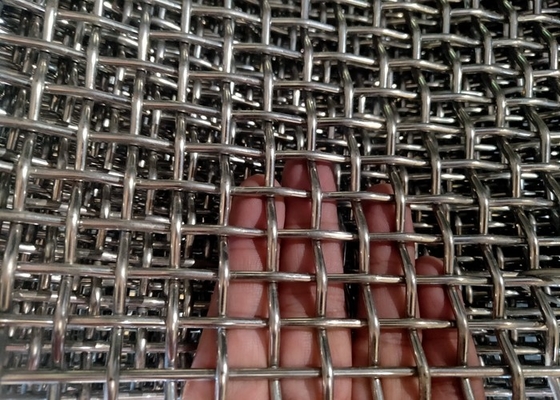

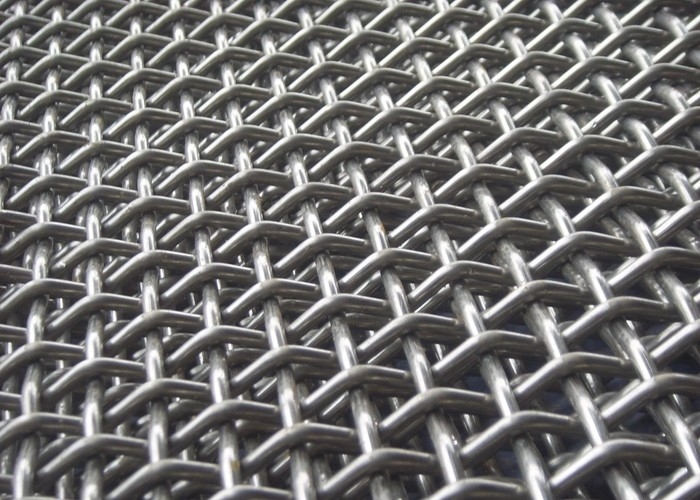

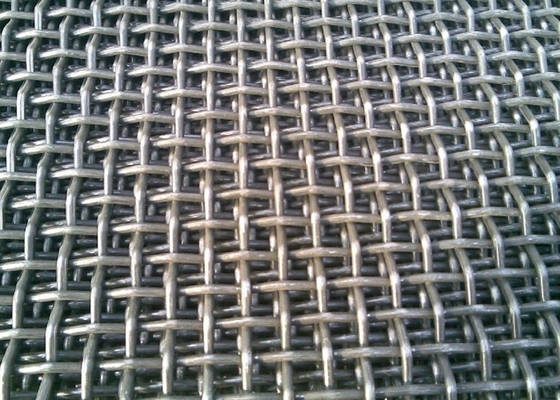

Plain crimped wire mesh/screen is produced in plain crimped weave, opening is square or rectangular hole. Plain crimped weave is the most commonly type of pre-crimped weave, it is a simple style of crimping in which warp wire and weft wire intersect at every crimps or corrugations. This type of crimped weave is mainly with lighter wires to ensure tension in a light screen. The plain pre-crimped wire mesh are widely used in the industries.The wire mesh is manufactured by weaving machines, both of the warp wire and weft wire are mildly crimped by weaving process before the wire mesh is woven.
Fuhang Company can offer plain crimped wire mesh in the standard specifications, opening sizes range from 5.0 mm to 100.0 mm, while wire diameters range from 0.5 mm to 12.7 mm, and the manufactured widths are between 1 m and 4 m. The plain crimped wire mesh is commonly constructed with materials of carbon steel and stainless steel.
Benefits
More accurate and consistent opening sizes
Pre-crimped wire mesh has high rigidity and strength
Strong wear resistance and firm structure
Plain crimped wire mesh materials
Plain crimped wire mesh is available in five series of different wire materials:
Stainless steel: 201, 304, 304L ,316, 316, 321, 310,310S.
Carbon/plain steel: low carbon steel, mild carbon steel, high carbon steel
Galvanized steel wire: Hot-dip galvanized steel wire , electro-galvanized steel wire
Copper: brass, pure copper, phosphor bronze
Nickel: pure nickel, nickel alloy, monel
Aluminum: 1050, 1060, 1100, 5052, 5056
Other available, please ask
Plain crimped wire mesh panels
Panel width: 0.1 m---5 m
Panel length: 0.2 m---6 m
Other sheets size on request
Application
Usage of plain crimped wire mesh includes:
In the automobile industries, for car grilles.
In the architectural & decorative industries, for the screen of cupboard, fireplace, fence and ceiling.
In the mining & aggregate industries, for vibrating machine
In the agricultural & food industries, for barbecue grills and pig raising screens.
In the petrochemical & chemical industries, for test sieve.
Plain crimped wire mesh rolls
Roll width 1 m, 1.22 m, 1.5 m to 4 m
Roll length 15 m, 30 m to 60 m
Other rolls size on request
When ordering or requesting a quote for plain pre-crimp screen, please specify:
Number of length 20 m for 1 m wide rolls or size required
Crimp style eg. Plain crimp weave
Aperture eg. 10mm
Diameter of wire eg. 3.0mm
Material eg. Stainless steel wire
