Intermediate Crimped Wire Mesh SS316L SS310 Width Customized

Intermediate Crimped Wire Mesh SS316L SS310 Width Customized

Product Details:

Place of Origin: China
Brand Name: FUHANG
Certification: ISO9001

Payment & Shipping Terms:

Minimum Order Quantity: 1 Square Meter
Price: 1-30 Square Meter $5/Square Meter >30 Square Meters $3/Square Meter
Packaging Details: paper tube inside+ wodden box +plastic bag
Delivery Time: 5-8 work days
Payment Terms: L/C, T/T
Supply Ability: 50000 square meter /15 Days
Get Best Price Contact Now

Detail Information

Features: Alkali-resisting Etc.,Structure Firm And Durable,Acid Resistant,Acid-resisting Name: Intermediate Crimped Wire Mesh
Type: Crimped Wire Mesh,Crimped Screen Wire Diameter: 0.5-10mm
Product Name: Galvanized Crimped Wire Mesh Width: Customized
Material: Stainless Steel Wire,Black Wire Mesh,copper,High Carbon Steel,SS304/SS304L/SS316/SS316L/SS310/Low Carbon Steel Wire Certification: ISO
High Light:

Intermediate Crimped Wire Mesh


SS316L Crimped Wire Mesh


Intercrimp Wire Mesh

Product Description

304 Intermediate Crimped Wire Mesh 316Intercrimped Wire Msh Crimped Wire Mesh Weaving

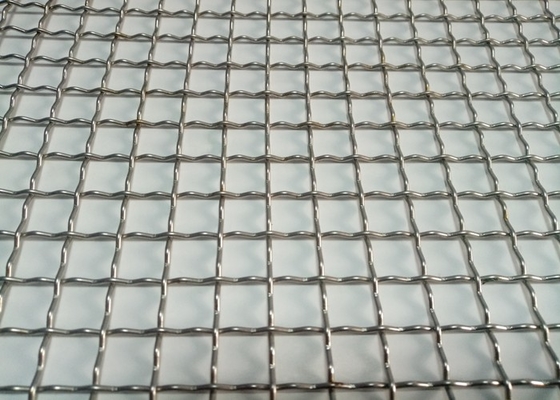

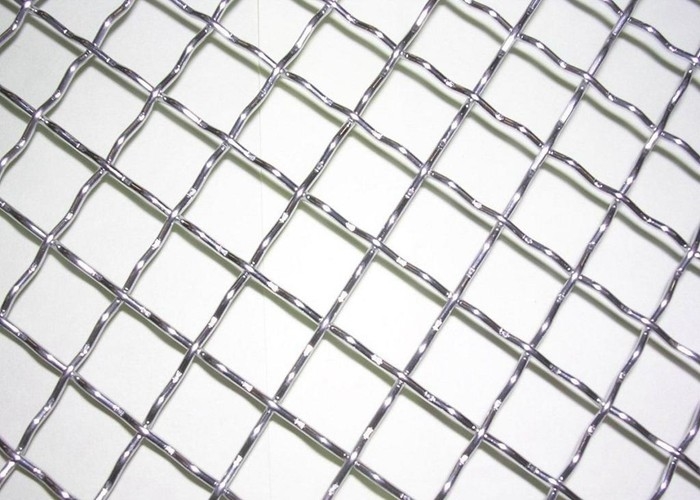

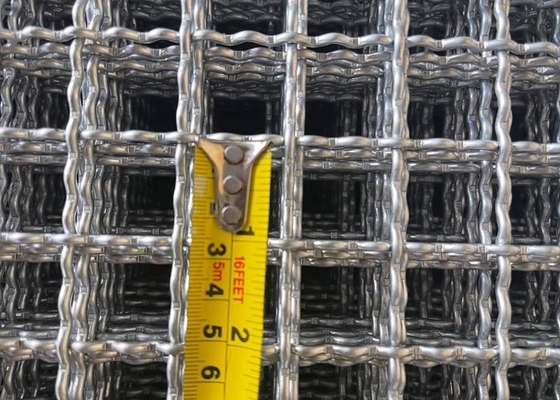

   Intercrimped weave is a type of pre-crimped weave that both of warp wire and weft wires intersection occur at the points of every odd number (three, five, seven etc.) crimps or corrugations, and the larger opening size with the more number of crimps. The intercrimped weave allows for square and rectangular openings in a variety of sizes, and usually provide larger openings in relation to the lighter wire size. Since it offers greater stability, tightness of weave and maximum rigidity, it is widely used for wall decoration, doors, ceiling and roofing decorations and also at different sites of the building. It is further used for fixed partitions or isolations in architectural uses.


   Intermediate crimped wire mesh / screen is also known as intercrimp wire mesh or multiple crimp wire mesh. The wire mesh is manufactured by precision weaving machines, both of the warp wire and weft wire are pre-crimped before the wire mesh is woven. Intercrimped wire mesh are the most widely used in the construction and automobile industries.


   We can offer intermediate crimped wire mesh in the standard specifications, opening sizes range from 5.0 mm to 100.0 mm, while wire diameters range from 0.6 mm to 5.8 mm, and manufacture width is up to 4 m. The standard materials of intercrimp wire mesh are carbon steel and stainless steel.



Large opening up to 100 mm

Intercrimped assure the proper locking of the warp and weft wires

Superior rigidity and greater stability

Strong wear resistance and firm structure


Intermediate crimped wire mesh materials

Intermediate crimped wire mesh is available in five different series of wire materials:

Stainless steel: 201, 304,304L, 316,316L, 321, 310, 310S

Carbon/plain steel: low carbon steel, mild carbon steel, high carbon steel

Copper: brass, pure copper, phosphor bronze

Nickel: pure nickel, nickel alloy, monel

Aluminum: 1050, 1060, 1100, 5052, 5056

Other available, please ask



Usage of intermediate crimped wire mesh includes:

In the agricultural & food industries, for barbecue grills.

In the architectural & decorative industries, for the screen of window, fireplace, fence and ceiling.

In the automobile industries, for radiator grills and headlight covers.

In the petrochemical & chemical industries, for test sieve.

In the mining & aggregate industries, for the screens of vibrating machine.


Intermediate crimped wire mesh rolls

Roll width 1m—4m

Roll length 10m---60m

Other rolls size on request


Intermediate crimped wire mesh panels

Mesh Panel Width: 0.5 m---2 m

Mesh Panel Length: 1 m---- 6 m

Other sheets size on request


When ordering or requesting a quote for inter crimped wire mesh/screen, please specify:

Crimp style eg. Single Inter crimp weave

Aperture eg. 12.7 mm

Diameter of wire eg. 2.0 mm

Material eg. Grade 304

Number of length 30 m for 1 m wide rolls or size required
