Flat Top Decorative Woven Wire Mesh 10m - 30m Roll Length Color Customized
Product Details:
| Place of Origin: | China |
| Brand Name: | FUHANG |
| Certification: | ISO9001 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Square Meter |
|---|---|
| Price: | 1-30 Square Meter $12/Square Meter >30 Square Meters $10/Square Meter |
| Delivery Time: | 3-10 work days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 50000 square meter /30 Days |
|
Detail Information |
|||
| Name: | Flat Top Crimped Wire Mesh | Application: | Screen,decorative Wire Mesh |
|---|---|---|---|
| Technique: | Woven | Type: | Crimped Wire Mesh,Crimped Screen |
| Material: | Stainless Steel Wire,Black Wire Mesh,copper,High Carbon Steel,SS304/SS304L/SS316/SS316L/SS310/Low Carbon Steel Wire | Hole Shape: | As Per Requirement |
| Color: | Customized | Length: | 30m Per Roll Or As Required |
| Product Name: | Crimped Wire Mesh | Surface Treatment: | Untreatment |
| Width: | Customized | Keyword: | Crimped Wire Mesh |
| High Light: | Customized Flat Top Wire Mesh,10m Decorative Woven Wire Mesh,ISO9001 Decorative Woven Wire Mesh |
||
Product Description

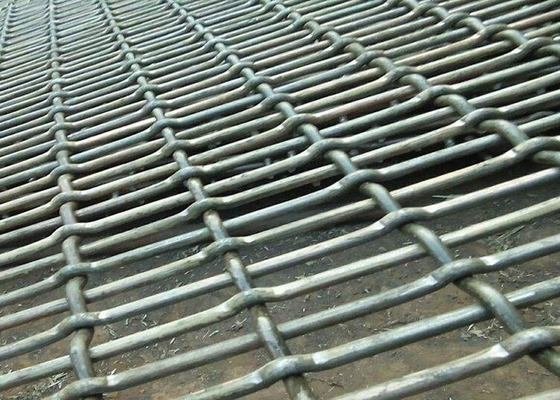

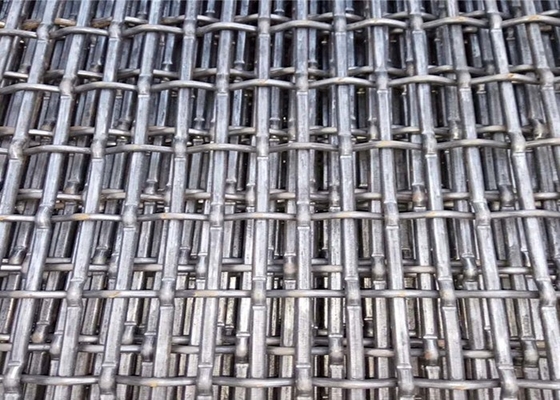

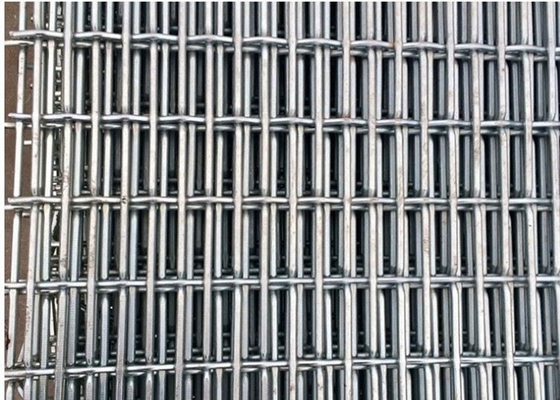

Flat Top Crimped Wire Mesh Stainless Steel Crimped Mesh Decorative Woven Wire Mesh
Flat top crimped wire mesh is also know as smooth top wire screen. Flat top crimped wire mesh panel is similar to the lock crimped mesh, the difference is that it has a flat upper surface and all of its crimps are in the back of the screen.

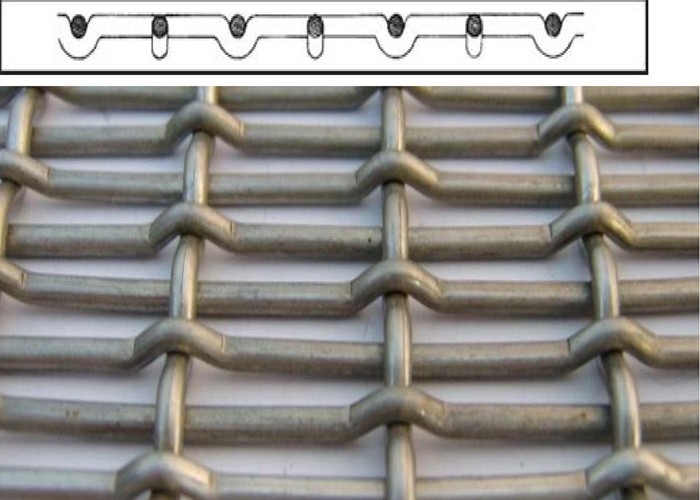

The flat top crimped weave is a improved crimp style, its wire is same to lock crimped weave, the difference is all of its crimps or corrugations is offset to the bottom side of screen, producing a smooth and flat top surface, there is no projections on top to avoid wearing.
The wire mesh is produced on looms as screen panels, both of the warp wire and weft wire are previously crimped before weaving. Flat top crimped wire mesh is commonly used in the architectural and mining industries.
We can offer flat top crimped wire mesh in the standard specifications, opening sizes range from 4 mm to 60 mm, while wire diameters range from 1.6 mm to 5.0 mm, and manufacture width is up to 4 m.
The standard materials of flat top crimped wire mesh are carbon steel and stainless steel. Our flat top crimped wire mesh can be provided in different sizes and specifications according to customer requirements.
Flat top crimped wire mesh rolls
Roll width 1m-- 4m
Roll length 10m--30m
Other rolls size on request
Flat top crimped wire mesh panels
Panel width: 0.5m-- 3m
Panel length: 1m--8 m
Other sheets size on request
Benefits
A flat surface reduces friction and facilitates material flow
Excellent wear resistance and strong structure
High rigidity and strength
Construction and decoration industry, used for fences, facades and ceilings.
Agriculture, screen for raising pigs.
Application of flat top crimped wire mesh
Mining industries used for vibrating screens.
Flat top crimped wire mesh materials
Flat top crimped wire mesh is available in five series of different wire materials:
Stainless steel: 201,202, 304, 316, 321, 410, 430,304L, 316L, 310, 310S
Carbon/plain steel: low carbon steel, mild carbon steel, high carbon steel
Aluminum: 1050, 1060, 1100, 5052, 5056
Copper: brass, pure copper, phosphor bronze
Nickel: pure nickel, nickel alloy, monel
Other available, please ask
Application
Usage of flat top crimped wire mesh includes:
In the architectural & decorative industries, for the screen of fence, facade and ceiling.
In the agricultural & food industries, for pig raising screens.
In the mining & aggregate industries,vibrating machine.
When ordering or requesting a quote for flat top crimped wire screen, please specify:
Number of length 20 m for 1 m wide rolls or size required
Crimp style eg. Flat top crimp weave
Aperture eg. 20mm
Diameter of wire eg. 4.5 mm
Material eg. Grade 316
