Woven Customized Sintered Metal Mesh Filter 304/316 Stainless Steel
Product Details:
| Place of Origin: | China |
| Brand Name: | FUHANG |
| Certification: | ISO9001 |
| Model Number: | 304/316 Stainless Steel Sintered Metal Mesh Filter |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 square meter |
|---|---|
| Price: | USD $0.5-$5 Square Meter |
| Packaging Details: | paper tube inside+ wodden box +plastic bag |
| Delivery Time: | 5-8 days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 10000 Square Meter Per Month |
|
Detail Information |
|||
| Product Name: | 304/316 Stainless Steel Sintered Metal Mesh Filter | Application: | Filters |
|---|---|---|---|
| Weave Style: | Plain/Twill Weave | Type: | Weave Wire Mesh |
| Technique: | Woven | Material: | Stainless Steel Wire |
| Wire Diameter: | 0.02-2mm | Width: | 0.5m-3m Or Customized |
| Usage: | Oil,space Flight,filter,chmical Industry | Length: | 30m/roll 50m/roll Or As Required |
| Feature: | Acid-resisting,corrosion Resistent Etc.,Anti-corrosion,alkali-resisting Etc | Color: | Steel |
| Hole Shape: | Square Hole | Mesh: | 1-635mesh |
| Advantage: | Superior Wire,standard Mesh,factory Direct Sale,competitive Price | Mesh Count: | 1-400mesh |
| Sample: | Free | Packing: | Paper Tube Inside+ Wodden Box +plastic Bag + |
| High Light: | customized sintered metal mesh filter,316 ss sintered metal mesh filter,304 sintered stainless steel mesh |
||
Product Description

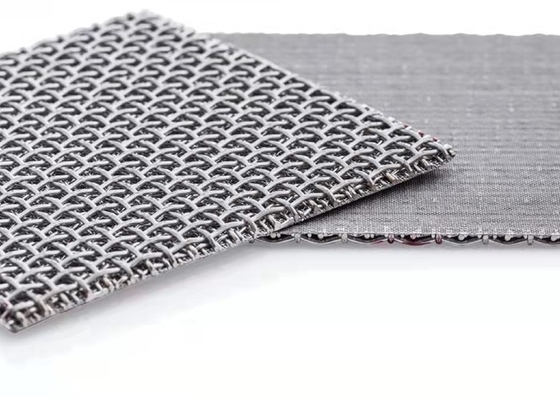

Customized 304/316 Stainless Steel Sintered Metal Mesh Filter
Sintered metal mesh filter is a wire filtering cloth made by pressing multilayers stainless steel woven wire cloth, then sintered together in a vacuum furnace. This kind of filtering cloth is much better than common metal woven wire mesh with good strength, hardness and good positioning of opening. Its comprehensive property is superior to sintered metal powder and porcelain.
Advantages:
High strength: five layers of silk mesh sintering, with very high mechanical strength and pressure-resistant strength.
High accuracy: In fact the filtration granularity of 2 to 200um can play a uniform surface filtration performance.
Heat resistance: In general, can be used for continuous filtration from -200 degrees to 650 degrees.
Easy cleaning: cleaning is very simple due to the surface filtration results with excellent counter-current cleaning effect.
Excellent corrosion resistance
High temperature resistance, thermal shock resistance
Specification
Material: SS304, SS316, Inconel, Hastelloy, and Monel
Filtration rate: 1-100 micron
Types: 5 layers.
Common Construction: Protection / Filter / Drainage / Support Structure / Support Structure
Type classification: Sintered dutch woven wire mesh and sintered square woven wire mesh.
Standard size:
480 mm × 480 mm, 480 mm × 980 mm, 500 mm × 1000 mm,
600 mm × 1200 mm, 610 mm × 1219 mm, 610 mm × 1250 mm,
1000 mm × 1000 mm, 1200 mm × 1200 mm,
other sizes can be designed as per customers’ demand.
Maximum size: 1219 mm × 1219 mm.
