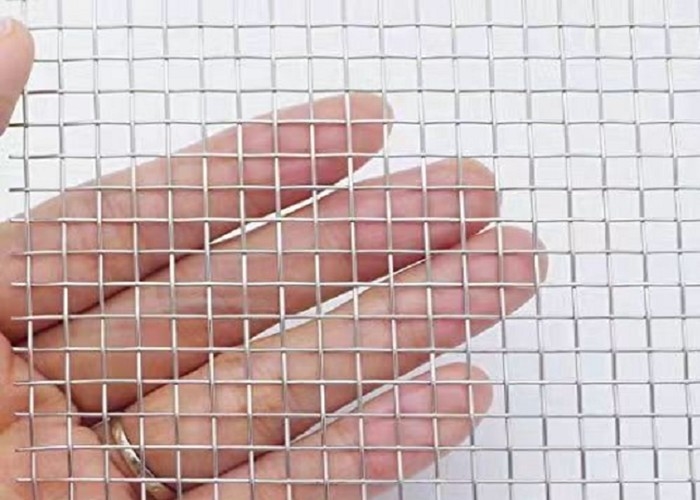

5X5 Stainless Steel Wire Mesh T-304/316 0.5m - 3m Width Plain Weave
Product Details:
| Place of Origin: | China |
| Brand Name: | FUHANG |
| Certification: | ISO9001 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Square Meter |
|---|---|
| Price: | 1-30 Square Meter $5/Square Meter >30 Square Meters $3/Square Meter |
| Packaging Details: | paper tube inside+ wodden box +plastic bag |
| Delivery Time: | 5-8 work days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 50000 square meter /30 Days |
|
Detail Information |
|||
| Name: | 304 316 5Mesh Plain Woven Stainless Steel Wire Mesh | Application: | Woven Wire Mesh |
|---|---|---|---|
| Weave Style: | Plain Weave | Technique: | Woven |
| Material: | Stainless Steel Wire | Wire Diameter: | Requirement |
| Width: | 0.5m-3m Or Customized | Usage: | Chmical Industry |
| Length: | 1-30m | Feature: | Acid Resisting , Anti Corrosion |
| Color: | Silver,steel | Hole Shape: | Square Hole |
| Advantage: | Factory Direct Sale | ||
| High Light: | 5X5 Stainless Steel Wire Mesh,3m Stainless Steel Wire Mesh,5X5 Stainless Steel 304 Wire Mesh |
||
Product Description
T-304/316 4F Width 5X5 Mesh Stainless Steel Wire Mesh for sieving
5mesh stainless steel wire mesh is one of the stainless steel wire mesh products that our factory often produces, and we usually stock a large amount of stock. The following are detailed data about this product
| Mesh | 5X5 MESH |
| Wire Diameter | 0.08 in |
| Width of Opening | 0.120 in |
| Construction Type | Plain Weave |
| % of Open Area | 36.00 % |
| Weight | 2.261 lb/ft² |
| Weave/Crimp Type | Plain Weave |
| Note on RFQ Quantity | Please Specify Qty to be Quoted. Item will be |
T304 Stainless Steel - Standard Chemical Composition
| Alloy | T-304 Stainless Steel |
| Maximum Carbon (C) | 0.08 % |
| Maximum Manganese (Mn) | 2.0 % |
| Maximum Phosphorus (P) | 0.045 % |
| Maximum Sulphur (S) | 0.03 % |
| Maximum Silicon (Si) | 1.00 % |
| Chromium (Cr) | 18.00 to 20.00 % |
| Nickel (N) | 8.00 to 10.50 % |
| Iron (Fe) | Balance |
| Maximum Nitrogen (N)1 | 0.10 % |
Additional Information
| Additional Information | Due to its chromium-nickel chemical composition, T-304 stainless steel is usually called 18-8, and there are two processes for braiding and welding to choose from. We have a large stock of the specifications listed on this website. If you do not see the specifications you like, please contact us to discuss your requirements, and we can customize them for you. |
| T316 Stainless Steel-Standard Chemical Composition | |||||||
| Maximum Carbon (C) | Maximum Manganese (Mn) | Maximum Phosphorus (P) | Maximum Sulphur (S) | Maximum Silicon (Si) | Chromium (Cr) | Nickel (N) | Mo |
| 0.08 Max |
2.0 %
|
0.045 %
|
0.03 %
|
1.00 %
|
16.00 to 18.00 % |
10.00 to 14 % |
2.0 to 3.0 % |
|
T-316 is a special stainless alloy, which contains 18 percent chromium and 10 percent nickel, as well as 2 percent molybdenum. This combination enables the mesh to resist corrosion from salts, acids, and seawater.
T-316 melts at 2500 degrees F (1375 C), but its maximum recommended temperature for continuous service is 1500 degrees F. (815 C) and is useful for intermediate service up to 1650 degrees F (900 C). Its uses include processing oils and foods, chemicals, and pharmaceuticals. |
|||||||
Popular Industries and Applications
| Popular Industries and Applications |
Some of the more popular applications and industries that use T-304 stainless steel are listed below: • General industrial use • Mining and protection • Quarrying and Sieving • Beer brewing • Water filtration • Particle separation • Automotive • Basket fabrication • Refinery & oil field • Aerospace • Food processing • Scientific & laboratory use |
