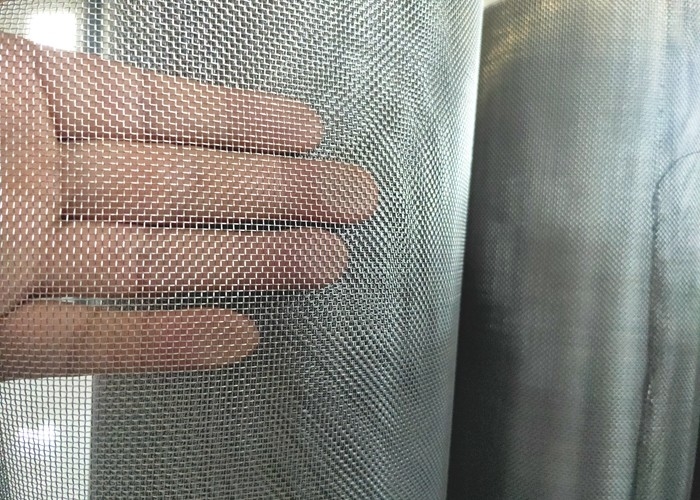

0.025 Inch Wire Diameter Stainless Steel Sieve Mesh, 14X14 Mesh SS Woven Wire Mesh
Product Details:
| Place of Origin: | China |
| Brand Name: | FUHANG |
| Certification: | ISO9001 |
| Model Number: | 14X14Mesh |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Square Meter |
|---|---|
| Price: | 1-30 Square Meter $2/Square Meter >30 Square Meters $1/Square Meter |
| Delivery Time: | 5-8 work days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 50000 square meter /15 Days |
|
Detail Information |
|||
| Product Name: | 304 Stainless Steel Wire Mesh | Weave Style: | Plain Weave |
|---|---|---|---|
| Type: | Weave Wire Mesh | Technique: | Woven |
| Feature: | Acid-resisting,Anti-corrosion,alkali Resist | Hole Shape: | Square Hole |
| Material: | Stainless Steel Wire | Application: | Mining , Protecting Mesh |
| Wire Diameter: | Requirement | Sample: | Free,Avaliable |
| Color: | Silver | Name: | 304 316 14Mesh Plain Woven Stainless Steel Wire Mesh |
| High Light: | 0.025 Inch Stainless Steel Sieve Mesh,ISO9001 Stainless Steel Sieve Mesh,14X14 SS Woven Wire Mesh |
||
Product Description
T-304 4F X 100F Square Hole 14X14 Mesh Stainless Steel Wire Cloth For Sieving
The wire diameters suitable for the production of 14X14mesh stainless steel wire woven mesh are 0.025In.,0.023In., 0.020In. ,0.0195In., 0.017In. The following are detailed data about this product:
| Mesh |
Construction Type |
Wire Diameter |
Width of Opening |
% of Open Area |
Weight |
|
14X14
|
Plain Weave
|
0.025 Inch | 0.046 Inch | 42.25% | 0.608 lb/ft² |
| 0.023 Inch | 0.048 Inch | 45.97% | 0.510 lb/ft² | ||
| 0.020 Inch | 0.051 Inch | 51.84% | 0.381 lb/ft² | ||
| 0.0195 Inch | 0.055 Inch | 52.85% | 0.362 lb/ft² | ||
| 0.017 Inch | 0.054 Inch | 58.06% | 0.273 lb/ft² |
| T304 Stainless Steel-Standard Chemical Composition | |||||||
| Maximum Carbon (C) | Maximum Manganese (Mn) | Maximum Phosphorus (P) | Maximum Sulphur (S) | Maximum Silicon (Si) | Chromium (Cr) | Nickel (N) |
Maximum Nitrogen (N) |
|
0.08 %
|
2.0 %
|
0.045 %
|
0.03 %
|
1.00 %
|
18.00 to 20.00 % |
8.00 to 10.50 % |
0.10 %
|
|
The most important elements in 304 are Ni and Cr, but they are not limited to these two elements. The specific requirements are stipulated by the product standards. The common judgment in the industry is that as long as the Ni content is greater than 8% and the Cr content is greater than 18%, it can be considered as 304 stainless steel. This is why the industry will call this type of stainless steel 18/8 stainless steel.
304 is a versatile stainless steel, which is widely used to make equipment and parts that require good overall performance (corrosion resistance and formability). In order to maintain the inherent corrosion resistance of stainless steel, steel must contain more than 18% chromium and more than 8% nickel. |
|||||||
Features:
1. High temperature resistance, oxidation resistance, acid and alkali resistance
2. Precise filtration, uniform mesh, good toughness
3. Smooth surface, no need for surface treatment, easy maintenance;
4. High strength, good tensile strength
Some of the more popular applications and industries that use T-304 12X12mesh stainless steel wire mesh are listed below:
1. Used for sieving and filtering under acid and alkali environmental conditions, as a sieving net in the petroleum industry, and as a sieving net in the chemical and chemical fiber industry.
2. Used in mining, petroleum, chemical, food, medicine, machinery manufacturing and other industries.
3. Used for screening and filtering under acid and alkali environmental conditions, as a mud mesh in the petroleum industry, as a screen in the chemical and chemical fiber industry, and as a pickling mesh in the electroplating industry.
