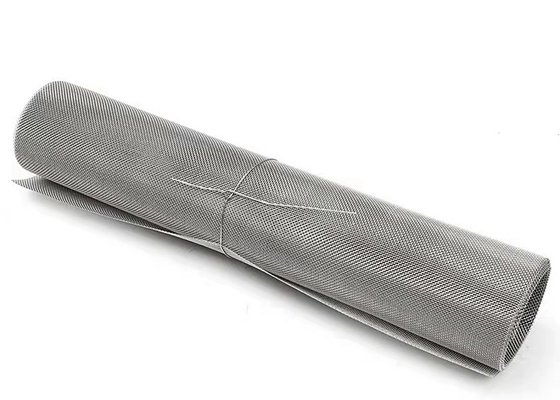

304 316 Square Anticorrosion Stainless Steel Woven Wire Mesh

304 316 Square Anticorrosion Stainless Steel Woven Wire Mesh

Product Details:

Place of Origin: China
Brand Name: FUHANG
Certification: ISO9001
Model Number: 321 Stainless Steel Wire Mesh

Payment & Shipping Terms:

Minimum Order Quantity: 1 square meter
Price: USD $0.5-$5 Square Meter
Packaging Details: paper tube inside+ wodden box +plastic bag
Delivery Time: 5-8 days
Payment Terms: L/C, T/T
Supply Ability: 10000 Square Meter Per Month
Get Best Price Contact Now

Detail Information
Product Name: Stainless Steel Square Wire Mesh Application: Filters
Weave Style: Plain/Twill Weave Type: Weave Wire Mesh
Technique: Woven Material: Stainless Steel Wire
Wire Diameter: 0.02-2mm Width: 0.5m-3m Or Customized
Usage: Oil,space Flight,filter,chmical Industry Length: 30m/roll 50m/roll Or As Required
Feature: Acid-resisting,corrosion Resistent Etc.,Anti-corrosion,alkali-resisting Etc Color: Steel
Hole Shape: Square Hole Mesh: 1-635mesh
Advantage: Superior Wire,standard Mesh,factory Direct Sale,competitive Price Mesh Count: 1-400mesh
Sample: Free Packing: Paper Tube Inside+ Wodden Box +plastic Bag +
High Light:

304 stainless steel woven wire mesh

,

anticorrosion stainless steel woven wire mesh

,

316 ss woven mesh

Product Description

   304 Stainless Steel Woven Wire Mesh 316 Stainless Steel Square Wire Mesh







   Stainless Steel Woven Wire Mesh, also name stainless steel square wire mesh, is manufactured by weaving longitudinal and transverse wires together. Commercial / Industrial grade mesh also known as wire cloth and gauze is extensively used for:



   Industry for filtration, screening / sieving and food pressing/ drying

Industry for Hollander Mesh & Bolting Cloth

Architecture for function and appearance both internally and externally

Bushfire Mesh part of your solution to bushfire protection

Window & Door Mesh part of your solution for stopping insects, intruders & embers

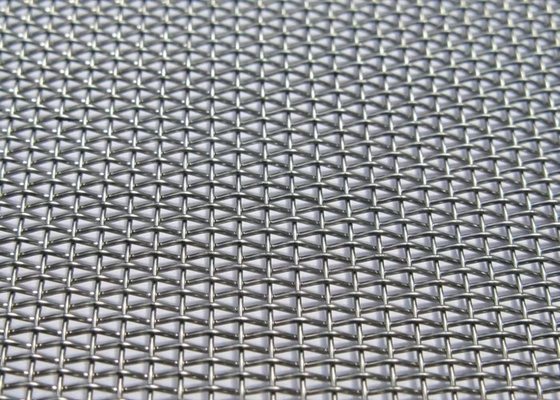

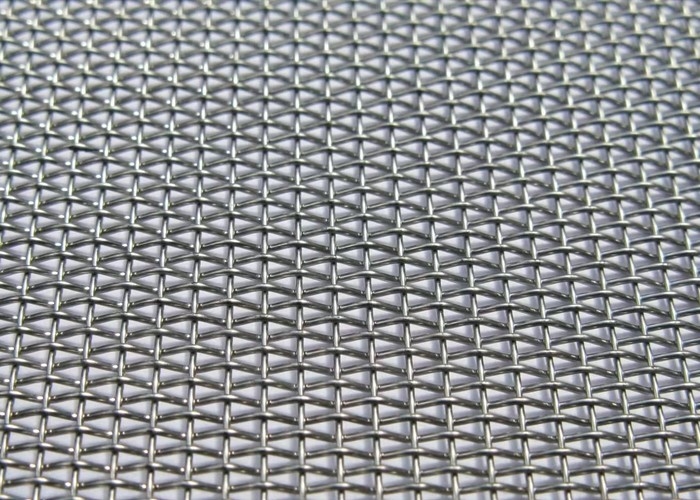

   Stainless steel square wire mesh is a commonly used stainless steel wire mesh products, the main characteristic is the mesh count in width and length are at the same, and hole shape is square shape. Stainless steel square wire mesh is made of high quality stainless steel wire and woven by wire mesh weaving machine in different weaving ways. For the low mesh count, normally produced by plain woven, and for high mesh count normally by twilled woven.We usually call the stainless steel wire mesh over 200 mesh count as fine stainless steel mesh.

304 316 Square Anticorrosion Stainless Steel Woven Wire Mesh 0

304 316 Square Anticorrosion Stainless Steel Woven Wire Mesh 1

   Stainless steel square wire mesh is uniform and flat surface, and has good resistance to acid, alkali and high temperature, also with good strength and wear resistance. This make it to be an important material to filter the gas, liquid or other media separation. It is widely used in petroleum, chemical industry, chemical fiber, rubber, tire manufacturing, metallurgy, mining, medicine, food and other industries.





   The Main Parameters and Common Specifications of Stainless Steel Square Wire Mesh



   Stainless steel square wire mesh normally has 3 basic parameter which are wire diameter, mesh opening size and mesh count(mesh holes numbers per inch), the third parameter will be curtained once the other two parameters are decided.



304 316 Square Anticorrosion Stainless Steel Woven Wire Mesh 2   304 316 Square Anticorrosion Stainless Steel Woven Wire Mesh 3





The main woven type of stainless steel square wire mesh are plain woven and twilled woven.



304 316 Square Anticorrosion Stainless Steel Woven Wire Mesh 4              304 316 Square Anticorrosion Stainless Steel Woven Wire Mesh 5

                      Plain Woven                                                                    Twilled Woven



  The main material of stainless steel wire mesh is SS304,304L,316 and 316L, the material can follow the standard of ASTM, GB/T, DN or JIS. And the ASTM standard is commonly used if there’s no other special requirement.



  Except the stainless steel material, Fuhang Wire Mesh can also produce the mesh in iron, aluminum, brass, copper, nickel or other material according to the requirements.



304 316 Square Anticorrosion Stainless Steel Woven Wire Mesh 6



  Following is the common specifications of stainless steel plain weave square wire mesh & stainless steel twill weave square wire mesh.



Common Specifcations for Stainless Steel Square Mesh ( Plain Weave )
Mesh/Inch Wire Diameter(mm) Opening Size(mm) Open Area(%) Weight(kg/m2)
1 2.03 23.37 84.65 2.06
2 1.6 11.1 76.39 2.56
3 1.37 7.09 70.23 2.82
4 1.6 4.75 55.96 5.12
4 1.19 5.16 66.03 2.83
5 1.04 4.04 63.25 2.70
6 0.89 3.35 62.42 2.38
8 0.71 2.46 60.22 2.02
10 0.64 1.91 56.10 2.05
10 0.51 2.03 63.87 1.30
12 0.58 1.52 52.39 2.02
12 0.51 1.6 57.50 1.56
14 0.58 1.22 45.94 2.35
14 0.51 1.3 51.59 1.82
16 0.46 1.13 50.51 1.69
18 0.5 0.91 41.65 2.25
20 0.4 0.87 46.93 1.60
20 0.45 0.82 41.69 2.03
24 0.35 0.71 44.86 1.47
26 0.3 0.68 48.15 1.17
28 0.3 0.61 44.93 1.26
30 0.25 0.6 49.83 0.94
40 0.2 0.44 47.27 0.80
50 0.18 0.33 41.87 0.81
60 0.16 0.26 38.32 0.77
60 0.19 0.23 29.99 1.08
70 0.12 0.24 44.44 0.50
80 0.12 0.2 39.06 0.58
80 0.13 0.19 35.25 0.68
100 0.1 0.15 36.00 0.50
100 0.11 0.14 31.36 0.61
104 0.06 0.18 56.25 0.19
120 0.09 0.12 32.65 0.49
120 0.058 0.15 52.01 0.20
120 0.08 0.13 38.32 0.38
140 0.07 0.11 37.35 0.34
145 0.045 0.13 55.18 0.15
150 0.06 0.11 41.87 0.27
150 0.05 0.12 49.83 0.19
160 0.05 0.11 47.27 0.20
160 0.04 0.12 56.25 0.13
160 0.035 0.12 59.94 0.10
180 0.05 0.09 41.33 0.23
180 0.04 0.1 51.02 0.14
200 0.05 0.08 37.87 0.25
200 0.04 0.09 47.93 0.16
220 0.05 0.07 34.03 0.28
230 0.035 0.08 48.39 0.14
230 0.03 0.08 52.89 0.10
250 0.04 0.06 36.00 0.20
250 0.035 0.07 44.44 0.15
270 0.035 0.06 39.89 0.17
270 0.03 0.06 44.44 0.12
280 0.035 0.06 39.89 0.17
300 0.03 0.05 39.06 0.14
325 0.025 0.05 44.44 0.10
325 0.028 0.05 41.09 0.13
325 0.03 0.05 39.06 0.15
350 0.022 0.05 48.23 0.08
370 0.022 0.05 48.23 0.09
400 0.022 0.04 41.62 0.10
420 0.022 0.04 41.62 0.10
450 0.02 0.04 44.44 0.09



Common Specifcations for Stainless Steel Square Mesh (Twill Weave )
Mesh/Inch Wire Diameter(mm) Opening Size(mm) Open Area(%) Weight(kg/m2)
150 0.07 0.0993 34.40 0.37
165 0.058 0.0959 38.83 0.28
180 0.058 0.0831 34.69 0.30
200 0.058 0.069 29.52 0.34
225 0.05 0.069 33.62 0.28
235 0.045 0.0631 34.07 0.24
250 0.04 0.0616 36.76 0.20
270 0.04 0.0541 33.05 0.22
280 0.04 0.0507 31.25 0.22
300 0.035 0.0497 34.43 0.18
300 0.038 0.0467 30.40 0.22
300 0.04 0.0447 27.85 0.24
315 0.035 0.0456 32.01 0.19
325 0.035 0.0432 30.52 0.20
350 0.035 0.0376 26.82 0.21
350 0.03 0.0426 34.43 0.16
363 0.03 0.04 32.65 0.16
385 0.03 0.0377 31.01 0.17
400 0.025 0.0385 36.76 0.13
400 0.028 0.0355 31.25 0.16
400 0.03 0.0335 27.83 0.18
420 0.03 0.0302 25.17 0.19
450 0.025 0.0314 31.00 0.14
500 0.025 0.0258 25.79 0.16
510 0.025 0.0248 24.80 0.16
530 0.024 0.0239 24.90 0.15
635 0.018 0.022 30.25 0.10
635 0.02 0.02 25.00 0.13
800 0.016 0.0164 25.62 0.10
