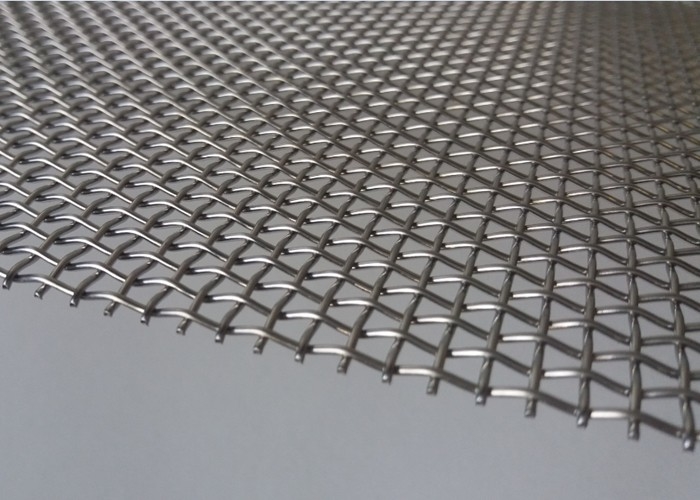

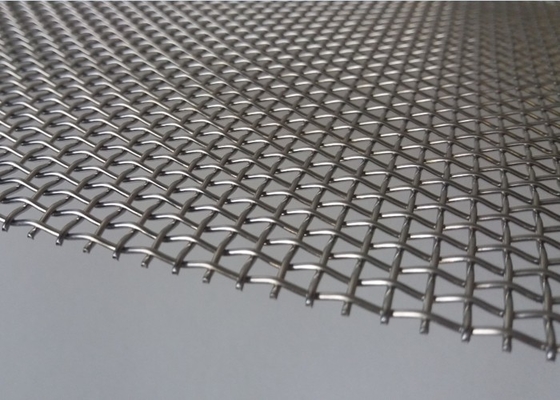

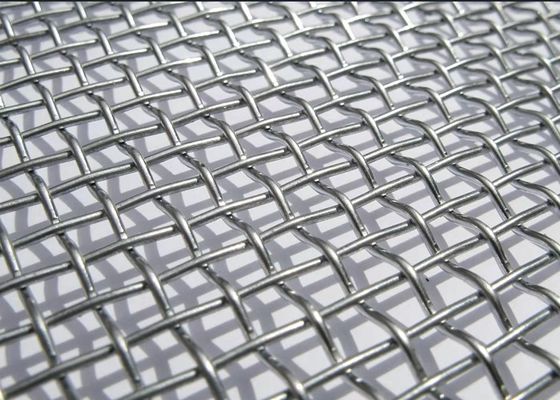

High Temperature Resistant 310 Stainless Steel Filter Wire Mesh 2mm
Product Details:
| Place of Origin: | China |
| Brand Name: | FUHANG |
| Certification: | ISO9001 |
| Model Number: | 310 Stainless Steel Wire Mesh |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 square meter |
|---|---|
| Price: | USD $0.5-$5 Square Meter |
| Packaging Details: | paper tube inside+ wodden box +plastic bag |
| Delivery Time: | 5-8 days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 10000 Square Meter Per Month |
|
Detail Information |
|||
| Product Name: | 310 Stainless Steel Wire Mesh | Application: | Filters |
|---|---|---|---|
| Weave Style: | Plain/Twill Weave | Type: | Weave Wire Mesh |
| Technique: | Woven | Material: | Stainless Steel Wire |
| Wire Diameter: | 0.02-2mm | Width: | 0.5m-3m Or Customized |
| Usage: | Oil,space Flight,filter,chmical Industry | Length: | 30m/roll 50m/roll Or As Required |
| Feature: | Acid-resisting,corrosion Resistent Etc.,Anti-corrosion,alkali-resisting Etc | Color: | Steel |
| Hole Shape: | Square Hole | Mesh: | 1-635mesh |
| Advantage: | Superior Wire,standard Mesh,factory Direct Sale,competitive Price | Mesh Count: | 1-400mesh |
| Sample: | Free | Packing: | Paper Tube Inside+ Wodden Box +plastic Bag + |
| High Light: | 310 stainless steel filter wire mesh,2mm stainless steel filter wire mesh,high temperature resistant filter steel mesh |
||
Product Description
High Temperature Resistant 310 Stainless Steel Wire Mesh Stainless Steel Filter Wire Mesh
Stainless Steel 310 Mesh has good strength as well as excellent corrosion resistance at the high temperature up to 2100of or 1149oC. Consisting of significant content of chromium and nickel, Stainless Steel 310 Mesh provides better performance in resisting general and localized corrosion than SS 304 mesh. It is a proven material for high temperature filtration elements.
Stainless Steel 310/310S Mesh Chemistry:
| Element | Cr | Ni | C | Si | Mn | P | S | Mo | Cu | Fe |
| SS 310 | 24 – 26 % | 19.2 – 22 % | 0.25 % | 1.50 % | 2 % | 0.045 % | 0.03 % | 0.75 % | 0.50 % | Bal |
| SS 310S | 24 – 26 % | 19.2 – 22 % | 0.25 % | 1.50 % | 2 % | 0.045 % | 0.03 % | 0.75 % | 0.50 % | Bal |
Stainless Steel 310/310S Mesh Property Data:
| Density (lb / cu. in.) | 0.289 |
| Specific Gravity | 7.9 |
| Specific Heat (Btu/lb/Deg F – [32-212 Deg F]) | 0.12 |
| Electrical Resistivity (microhm-cm (at 68 Deg F)) | 468 |
| Melting Point (Deg F) | 2650 |
| Modulus of Elasticity Tension | 30 |
| Mean coefficient of thermal expansion | 8.8 x 10(6)per oF, 15 x 10(6) per oC |
| Elastic modulus | 29 Psi x 10(6) or 200 GPa |
| Yield strength 0.2 percent offset | 45 ksi or 310 MPa |
| Tensile strength | 95 ksi or 655 MPa |
| Reduction of area % | 69 % |
| Hardness Rockwell B | 85 |
Stainless Steel 310/310S Mesh Available Types:
Woven Wire Mesh
Expanded Metal
Perforated Metal
Further fabricated mesh products
We manuacture the mesh with customized specifications, please feel free to contact with us for more information or quick quote.
