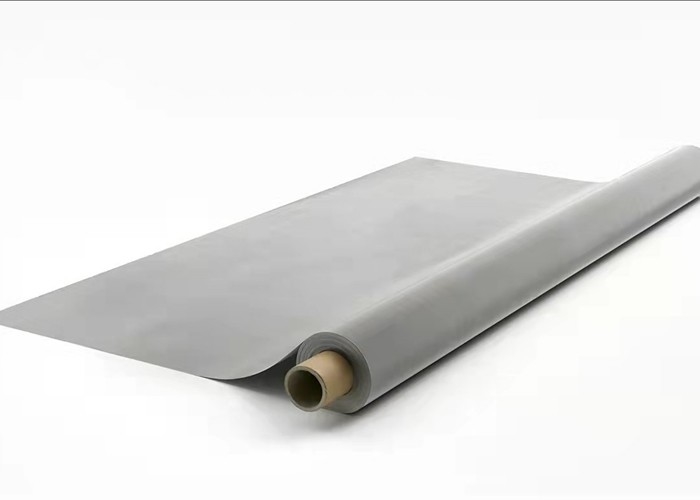

Corrosion Resistance Woven 0.02mm Nickel Wire Mesh
Product Details:
| Place of Origin: | China |
| Brand Name: | FUHANG |
| Certification: | ISO9001 |
| Model Number: | Nickel Wire Mesh |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 square meter |
|---|---|
| Price: | USD $0.5-$5 Square Meter |
| Packaging Details: | paper tube inside+ wodden box +plastic bag |
| Delivery Time: | 5-8 days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 10000 Square Meter Per Month |
|
Detail Information |
|||
| Product Name: | Nickel Wire Mesh | Application: | Filters |
|---|---|---|---|
| Weave Style: | Plain/Twill Weave | Type: | Weave Wire Mesh |
| Technique: | Woven | Material: | Stainless Steel Wire |
| Wire Diameter: | 0.02-2mm | Width: | 0.5m-3m Or Customized |
| Usage: | Oil,space Flight,filter,chmical Industry | Length: | 30m/roll 50m/roll Or As Required |
| Feature: | Acid-resisting,corrosion Resistent Etc.,Anti-corrosion,alkali-resisting Etc | Color: | Steel |
| Hole Shape: | Square Hole | Mesh: | 1-635mesh |
| Advantage: | Superior Wire,standard Mesh,factory Direct Sale,competitive Price | Mesh Count: | 1-400mesh |
| Sample: | Free | Packing: | Paper Tube Inside+ Wodden Box +plastic Bag + |
| High Light: | corrosion resistance nickel wire mesh,anti corrosion woven nickel wire mesh,0.02mm monel woven wire mesh |
||
Product Description
Corrosion Resistance Nickel Mesh China Nickel Cloth Factory Nickel Mesh Screen Supplier
Nickel wire mesh, also called nickel mesh screen, nickel mesh and Nickel wire cloth. The commonly used nickel wire’s purity is 99.6%(N6) and 99.9%(N4). Nickel Mesh is used typically when corrosion resistance is required, and frequently utilized in applications requiring shielding of electromagnetic interference and radio frequency interference.
Nickel mesh is made of nickel wire through warp and weft woven, mesh holes are generally the square hole. The main specifications are 20 mesh, 30 mesh, 40 mesh, 60 mesh, 150 mesh, 300 mesh, 350 mesh, 400 mesh etc. The wire diameter ranges from 0.03 to 0.4 mm. After surface coating treatment, it is applied to the alkali, hydrogen production and new energy battery industries.
We are capable of manufacturing nickel mesh as thin as 400mesh per inch with aperture of 30 micron. The most commonly ordered size is 350mesh per inch which is available in our inventory all the time.
Available Nickel Wire Mesh Specifications:
Mesh: 0.2mesh/inch ~ 400mesh/inch
Thickness: 0.03mm~10mm
Opening size: 0.03mm~80mm
Width: 150mm~ 3000mm
Please feel free to contact with us if you have specific requirements to the nickel mesh.
| Fuhang Company Nickel Wire Mesh | ||||
| Mesh count | SWG (Gauge) | Aperture (μm) | Effective section area (%) | Weight (kg/m2) |
| 20 | 32 | 1000 | 62 | 0.83 |
| 24 | 29 | 720 | 46.07 | 1.58 |
| 30 | 35 | 640 | 56.55 | 0.75 |
| 40 | 35 | 430 | 44.8 | 1.00 |
| 50 | 37 | 250 | 35.81 | 0.99 |
| 60 | 36 | 234 | 30.38 | 1.23 |
| 70 | 38 | 320 | 34.41 | 0.90 |
| 80 | 40 | 200 | 38.69 | 0.66 |
| 100 | 42 | 150 | 36.76 | 0.57 |
| 120 | 46 | 149 | 51.34 | 0.25 |
| 140 | 46 | 120 | 44.8 | 0.29 |
| 150 | 45 | 100 | 34.41 | 0.42 |
| 180 | 46 | 80 | 33.04 | 0.36 |
| 200 | 46 | 74 | 31.06 | 0.35 |
| 250 | 48 | 60 | 36.76 | 0.23 |
| 300 | 48 | 40 | 27.83 | 0.27 |
| 325 | 48 | 40 | 23.83 | 0.30 |
| 350 | 49 | 37 | 26.8 | 0.24 |
| 400 | 49 | 30 | 27.83 | 0.21 |
