Dutch Weave Stainless Steel Wire Mesh Filter Cloth 80 Micron 24x110
Product Details:
| Place of Origin: | China |
| Brand Name: | FUHANG |
| Certification: | ISO9001 |
| Model Number: | 24x110 Mesh |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Square Meter |
|---|---|
| Price: | 1-30 Square Meter $2/Square Meter >30 Square Meters $1/Square Meter |
| Delivery Time: | 5-8 work days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 50000 square meter /15 Days |
|
Detail Information |
|||
| Product Name: | 24x110 Mesh Dutch Weave Micronic Filter Cloth | Application: | Woven Wire Mesh |
|---|---|---|---|
| Weave Style: | Dutch/Plain/Twill Weave | Type: | Weave Wire Mesh |
| Technique: | Woven | Material: | Stainless Steel Wire,304,316 |
| Width: | Usually1M | Usage: | Filter |
| Length: | 1-30m | Feature: | Acid-resisting,Anti-corrosion,alkali-resisting Etc |
| Color: | Silver | Advantage: | Factory Direct Sale |
| Sample: | Free | Packing: | Paper Tube Inside+ Wodden Box +plastic Bag + |
| High Light: | 24x110 Stainless Steel Wire Mesh,80 Micron Stainless Steel Wire Mesh,Dutch Weave Wire Mesh |
||
Product Description

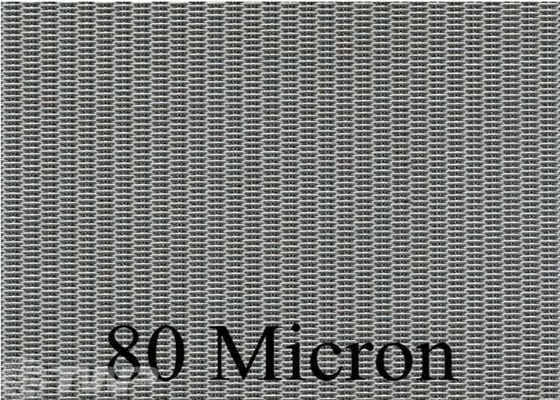

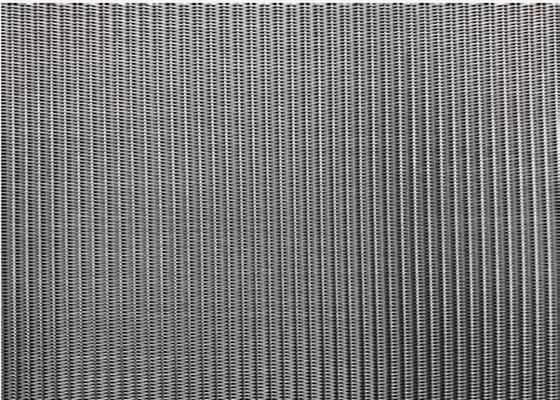

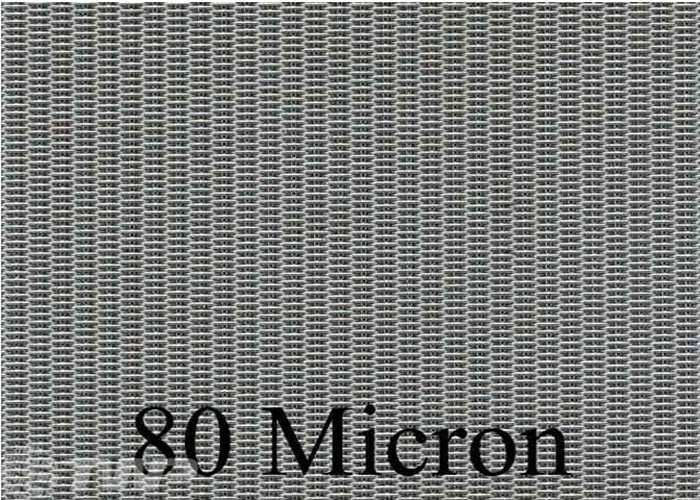

T304/T316 24x110 Mesh Dutch Weave 80 Micron Filter Cloth
Mesh with a Dutch weave is woven to a precise tolerance for a much denser finished material with small, curved tunnel-shaped openings. Light does not pass through Dutch-woven micronic filter mesh. Thick and sturdy Dutch weaves are typically used for hydraulic fluid filters, gas diffusers, vacuum filters, pressure liquid filters, and breather vents.
Dutch weave is divided into plain Dutch weave and twill Dutch weave. 24x110 Mesh uses plain Dutch weave.
| U.S. | Metric | |
| MESH SIZE | 24x110 per in | 24x110 per 2.54 cm |
| WIRE DIAMETER | 0.0150x0.0100 in | 0.381x0.254 mm |
| OPENING | 0.0031 in | 0.07874 mm |
| OPENING MICRONS | 80 | 80 |
| POROSITY | 65 | 65 |
| OVERALL THICKNESS | 0.0350 in | 0.8890 mm |
| WEIGHT/SQUARE | FOOT0.5200 | lb0.2361 |
Features
80 micron precision woven stainless steel screen
Used in separation, fuel filters, gas diffusers and vents
Light tight mesh
Flow Data is available
Meets ASTM E2814-18
Stainless Steel 304/316
