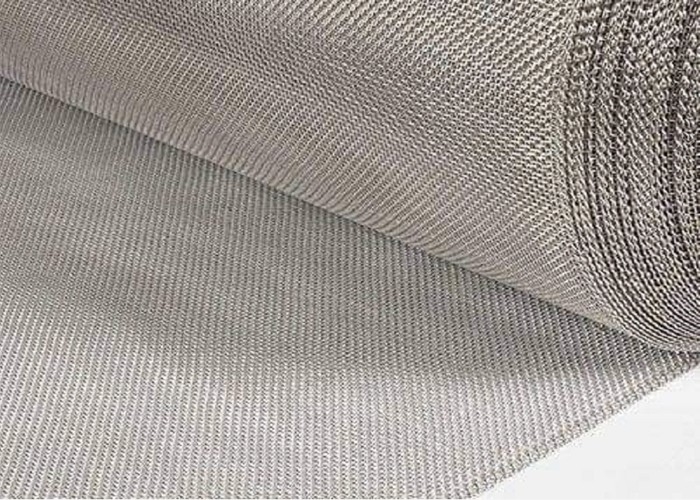

60X60 Stainless Steel Wire Mesh 1M X 100F For Sieving / Filtering
Product Details:
Place of Origin: | China |
Brand Name: | FUHANG |
Certification: | ISO9001 |
Model Number: | 60X60Mesh |
Payment & Shipping Terms:
Minimum Order Quantity: | 1 Square Meter |
---|---|
Price: | 1-30 Square Meter $2/Square Meter >30 Square Meters $1/Square Meter |
Delivery Time: | 5-8 work days |
Payment Terms: | L/C, T/T |
Supply Ability: | 50000 square meter /15 Days |
Detail Information |
|||
Product Name: | T-304/316 1M X 100F Square Hole 60X60 Mesh Stianless Steel Wire Netting | Application: | Mining,Protecting Mesh |
---|---|---|---|
Weave Style: | Plain Weave, Twill Weave | Type: | Weave Wire Mesh |
Material: | Stainless Steel Wire | Wire Diameter: | Requirement |
Feature: | Acid-resisting,Anti-corrosion,alkali Resist | Color: | Silver |
Hole Shape: | Square Hole | Technique: | Woven |
Advantage: | Factory Direct Sale,competitive Price | Sample: | Free,Avaliable |
Name: | 304 316 60Mesh Stainless Steel Wire Mesh | ||
High Light: | 60X60 Stainless Steel Wire Mesh,Stainless Steel Wire Mesh 1M X 100F,Sieving Stainless Steel 316 Wire Mesh |
Product Description
T-304 /316 1M X 100F Square Hole 60X60 Mesh Stainless Steel Wire Mesh For Sieving and Filtering
Stainless steel wire mesh production process: the radial and weft wire diameters are the same, each diameter wire crosses every two (or more) weft wires up and down, and each weft wire crosses every two (or more) weft wires. ) Diameter wire is crossed up and down. Stainless steel wire mesh is also called stainless steel filter mesh, stainless steel screen mesh, stainless steel woven mesh, stainless steel wide mesh and so on.
There are usually two ways of weaving 60 mesh stainless steel wire mesh: plain weave and twill weave. The wire diameters suitable for the production of plain weave 60X60mesh stainless steel wire mesh are 0.19mm , 0.17mm, 0.15mm, 0.12mm. The wire diameters suitable for the production of twill weave 60X60mesh stainless steel wire mesh are0.27mm, 0.25mm , 0.23mm, 0.20mm. The following are detailed data about this product:
Mesh |
Construction Type |
Wire Diameter (mm) |
Width of Opening (mm) |
% of Open Area |
Weight (kgs/m2) |
60X60
|
Plain Weave
|
0.19 | 0.23 | 30.38% | 1.08 |
0.17 | 0.25 | 35.81% | 0.87 | ||
0.15 | 0.27 | 41.69% | 0.68 | ||
0.12 | 0.30 | 51.34% | 0.43 | ||
Twill Weave | 0.27 | 0.15 | 13.12% | 2.19 | |
0.25 | 0.17 | 16.76% | 1.88 | ||
0.23 | 0.19 | 20.86% | 1.59 | ||
0.20 | 0.22 | 27.83% | 1.20 |
The widths we often produce are 1 meter, 1.2 meters, 1.5meters, 1.8 meters, and 2 meters. The length of each roll is usually 30 meters. We can customize special sizes according to your requirements.
Features:
1. Good acid resistance, alkali resistance and corrosion resistance;
2. High strength, strong tensile force, toughness and abrasion resistance, durable;
3. Resistant to high temperature oxidation, the nominal temperature of 304 stainless steel
4. screen is 800 degrees Celsius
5. Processing at room temperature, easy to make various shapes;
6. High smoothness, no need for surface treatment, convenient and simple maintenance.
We usually use 304 stainless steel wire and 316 stainless steel wire to produce 60X60mesh stainless steel wire mesh. The following is a brief introduction to 304 stainless steel and 316 materials.
T304 Stainless Steel-Standard Chemical Composition | |||||||
Maximum Carbon (C) | Maximum Manganese (Mn) | Maximum Phosphorus (P) | Maximum Sulphur (S) | Maximum Silicon (Si) | Chromium (Cr) | Nickel (N) |
Maximum Nitrogen (N) |
0.08 %
|
2.0 %
|
0.045 %
|
0.03 %
|
1.00 %
|
18.00 to 20.00 % |
8.00 to 10.50 % |
0.10 % |
304 stainless steel is the most widely used chromium-nickel stainless steel. As a widely used steel, it has good corrosion resistance, heat resistance, low temperature strength and mechanical properties; it has good hot workability such as stamping and bending without heat treatment. Hardening phenomenon (use temperature -196℃~800℃). It is resistant to corrosion in the atmosphere. If it is an industrial atmosphere or heavily polluted area, it needs to be cleaned in time to avoid corrosion. It is suitable for food processing, storage and transportation. Has good processing properties and weldability. |
T316 Stainless Steel-Standard Chemical Composition | |||||||
Maximum Carbon (C) | Maximum Manganese (Mn) | Maximum Phosphorus (P) | Maximum Sulphur (S) | Maximum Silicon (Si) | Chromium (Cr) | Nickel (N) | Mo |
0.08 Max |
2.0 %
|
0.045 %
|
0.03 %
|
1.00 %
|
16.00 to 18.00 % |
10.00 to 14 % |
2.0 to 3.0 %
|
Due to the addition of Mo element, 316 stainless steel has greatly improved its corrosion resistance and high temperature strength. The high temperature resistance can reach 1200-1300 degrees, and it can be used under harsh conditions. |
The main difference between 316 and 304 in chemical composition is that 316 contains Mo, and it is generally recognized that 316 has better corrosion resistance and is more resistant to corrosion in high temperature environments than 304. Therefore, in high-temperature environments, engineers generally choose 316 stainless steel wire mesh.Stainless steel wire mesh is generally used in acid, alkali, and high temperature environments. In order for stainless steel wire mesh to be used normally at high temperatures, we must understand the temperature that stainless steel wire mesh can withstand. Because of the different chemical composition content of each material, the degree of heat resistance of the stainless steel mesh is also different. The temperature that the stainless steel mesh withstands is also different from the actual temperature.
Some of the more popular applications and industries that use T-304/316 60X60mesh stainless steel wire mesh are listed below:
1. Used for sieving and filtering under acid and alkali environmental conditions, as a sieving net in the petroleum industry, and as a sieving net in the chemical and chemical fiber industry.
2. Used in mining, petroleum, chemical, food, medicine, machinery manufacturing and other industries.
3. Used for screening and filtering under acid and alkali environmental conditions, as a mud mesh in the petroleum industry, as a screen in the chemical and chemical fiber industry, and as a pickling mesh in the electroplating industry.
