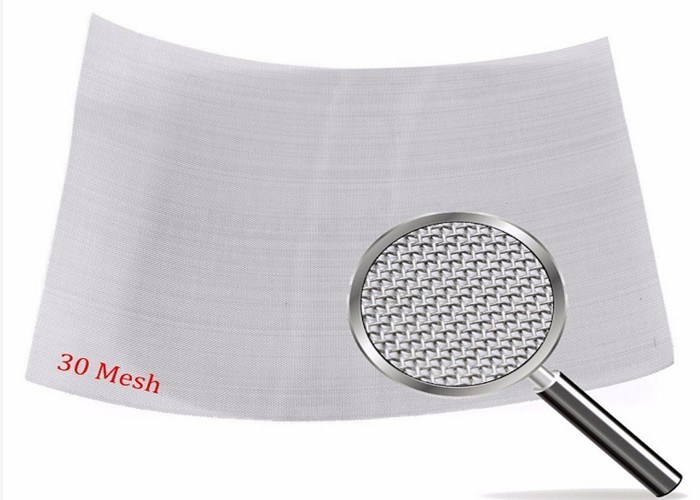

304 Stainless Steel Wire Mesh 30X30 Plain Weave Type 0.40mm 0.38mm
Product Details:
| Place of Origin: | China |
| Brand Name: | FUHANG |
| Certification: | ISO9001 |
| Model Number: | 30X30Mesh |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Square Meter |
|---|---|
| Price: | 1-30 Square Meter $2/Square Meter >30 Square Meters $1/Square Meter |
| Delivery Time: | 5-8 work days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 50000 square meter /15 Days |
|
Detail Information |
|||
| Product Name: | T-304/316 4F X 100F Square Hole 30X30 Mesh Stainless Steel Wire Netting | Application: | Mining , Protecting Mesh |
|---|---|---|---|
| Weave Style: | Plain Weave | Type: | Weave Wire Mesh |
| Technique: | Woven | Wire Diameter: | Requirement |
| Feature: | Acid-resisting,Anti-corrosion,alkali Resist | Color: | Silver |
| Hole Shape: | Square Hole | Material: | Stainless Steel Wire |
| Advantage: | Factory Direct Sale,competitive Price | Sample: | Free,Avaliable |
| High Light: | 304 Stainless Steel Wire Mesh,30X30 Stainless Steel Wire Mesh,0.40mm Plain Weave Wire Mesh |
||
Product Description
T-304 /316 4F X 100F Square Hole 30X30 Mesh Stainless Steel Wire Mesh For Sieving
The wire diameters suitable for the production of 30X30mesh stainless steel wire woven mesh are 0.40mm , 0.38mm, 0.35mm, 0.3mm, 0.25mm, 0.20mm. The following are detailed data about this product:
| Mesh |
Construction Type |
Wire Diameter (mm) |
Width of Opening (mm) |
% of Open Area |
Weight (kgs/m2) |
|
30X30
|
Plain Weave
|
0.40 | 0.45 | 27.83% | 2.40 |
| 0.38 | 0.47 | 30.38% | 2.17 | ||
| 0.35 | 0.50 | 34.41% | 1.84 | ||
| 0.30 | 0.55 | 41.69% | 1.35 | ||
| 0.25 | 0.60 | 49.66% | 0.94 | ||
| 0.20 | 0.65 | 58.34% | 0.60 |
The widths we often produce are 1 meter, 1.2 meters, 1.5meters, 1.8 meters, and 2 meters. The length of each roll is usually 30 meters. We can customize special sizes according to your requirements.
We usually use 304 stainless steel wire and 316 stainless steel wire to produce 30X30mesh stainless steel wire mesh. The following is a brief introduction to 304 stainless steel and 316 materials.
| T304 Stainless Steel-Standard Chemical Composition | |||||||
| Maximum Carbon (C) | Maximum Manganese (Mn) | Maximum Phosphorus (P) | Maximum Sulphur (S) | Maximum Silicon (Si) | Chromium (Cr) | Nickel (N) |
Maximum Nitrogen (N) |
|
0.08 %
|
2.0 %
|
0.045 %
|
0.03 %
|
1.00 %
|
18.00 to 20.00 % |
8.00 to 10.50 % |
0.10 % |
|
304 stainless steel is the most widely used chromium-nickel stainless steel. As a widely used steel, it has good corrosion resistance, heat resistance, low temperature strength and mechanical properties; it has good hot workability such as stamping and bending without heat treatment. Hardening phenomenon (use temperature -196℃～800℃). It is resistant to corrosion in the atmosphere. If it is an industrial atmosphere or heavily polluted area, it needs to be cleaned in time to avoid corrosion. It is suitable for food processing, storage and transportation. Has good processing properties and weldability.
|
|||||||
Features
◆ Accurate Mesh, acid, alkali, corrosion resistance and good performance;
◆ high strength, tensile strength, toughness and wear resistance, long service life;
◆ uniform structure, uniform thickness, anti-static;
◆ high temperature resistance of 800 degrees Celsius;
◆ high finish, no surface treatment, easy maintenance, easy to use.
| T316 Stainless Steel-Standard Chemical Composition | |||||||
| Maximum Carbon (C) | Maximum Manganese (Mn) | Maximum Phosphorus (P) | Maximum Sulphur (S) | Maximum Silicon (Si) | Chromium (Cr) | Nickel (N) | Mo |
| 0.08 Max |
2.0 %
|
0.045 %
|
0.03 %
|
1.00 %
|
16.00 to 18.00 % |
10.00 to 14 % |
2.0 to 3.0 %
|
| Due to the addition of Mo element, 316 stainless steel has greatly improved its corrosion resistance and high temperature strength. The high temperature resistance can reach 1200-1300 degrees, and it can be used under harsh conditions. | |||||||
characteristic:
1. Due to the addition of Mo, 316 stainless steel has excellent corrosion resistance, atmospheric corrosion resistance and high temperature strength, and can be used under harsh conditions; excellent work hardening (non-magnetic); excellent high-temperature strength; non-magnetic in solid solution state ; The cold-rolled product has good gloss and beautiful appearance.
2. Due to the addition of Mo element, 316 stainless steel has greatly improved its corrosion resistance and high temperature strength. The high temperature resistance can reach 1200-1300 degrees, and it can be used under harsh conditions.
The main difference between 316 and 304 in chemical composition is that 316 contains Mo, and it is generally recognized that 316 has better corrosion resistance and is more resistant to corrosion in high temperature environments than 304. Therefore, in high-temperature environments, engineers generally choose 316 stainless steel wire mesh.
Some of the more popular applications and industries that use T-304/316 30X30mesh stainless steel wire mesh are listed below:
1. Used for sieving and filtering under acid and alkali environmental conditions, as a sieving net in the petroleum industry, and as a sieving net in the chemical and chemical fiber industry.
2. Used in mining, petroleum, chemical, food, medicine, machinery manufacturing and other industries.
3. Used for screening and filtering under acid and alkali environmental conditions, as a mud mesh in the petroleum industry, as a screen in the chemical and chemical fiber industry, and as a pickling mesh in the electroplating industry.
